Overview

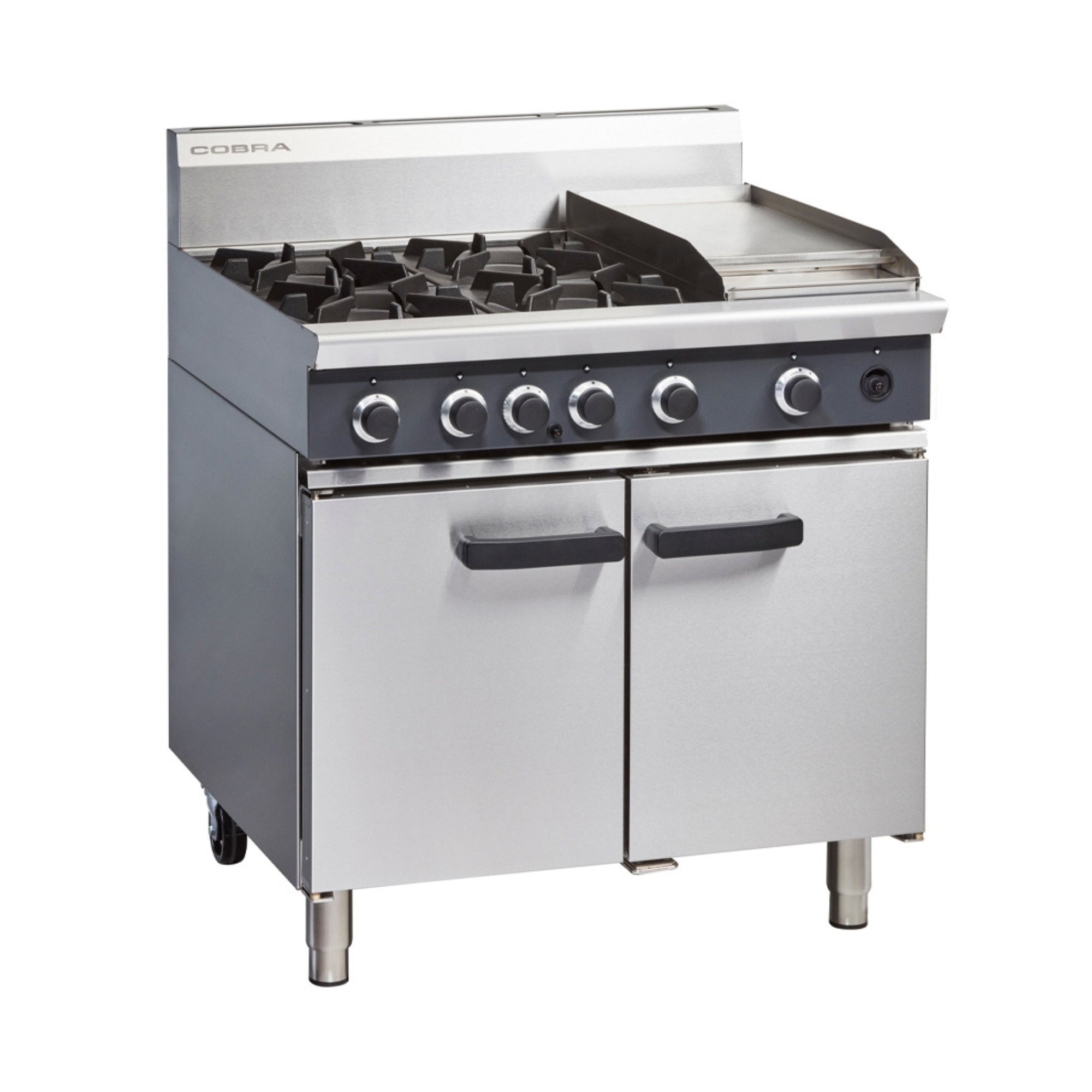

Cobra CR9C 900mm Four Burner / Griddle Gas Range Static Oven

The Cobra CR9C is a 900mm wide freestanding commercial gas range combining four open burners, a 300mm smooth mild steel griddle plate, and a high-crown gas static oven in a single fully modular unit. Manufactured in New Zealand from stainless steel, it is engineered for continuous high-volume service in commercial kitchens, cafes, and hospitality venues, and is available in both Natural Gas and LPG configurations.

The four open burners each deliver 22 MJ/hr, while the dedicated 20 MJ/hr griddle burner features pilot ignition, flame failure protection, and piezo ignition as standard. The oven below accommodates 2/1 GN or 1/1 GN gastronorm pans across a four-position racking system, and opens via a French door system for convenient access. Flame failure protection is standard on all open burners, with an optional pilot and flame failure upgrade available per 300mm section.

Key Benefits

• Four high-output open burners plus a 300mm griddle plate in one 900mm footprint deliver flexible, multi-method cooking without requiring additional equipment.
• The 12mm thick mild steel griddle plate retains and distributes heat evenly, making it well suited to searing, grilling, and frying at volume.
• A high-crown static oven with 2/1 GN capacity and four-position racking allows simultaneous baking, roasting, and finishing of multiple trays.
• Flame failure protection across all burners shuts off gas automatically if a flame is extinguished, reducing the risk of gas hazards during busy service.
• Variable high-to-low controls on every burner give chefs precise heat management across a wide cooking range.
• Welded vitreous enamelled oven liner and vitreous enamel pot stands resist staining and are straightforward to wipe down, reducing cleaning time between services.
• Adjustable front feet and rear rollers simplify levelling on uneven floors and allow the unit to be repositioned easily during kitchen maintenance.
• Fully modular construction means the CR9C can be installed alongside other Cobra 900mm series equipment to create a continuous, matched cooking suite.
• A 24-month warranty and New Zealand manufacture back the unit's suitability for demanding, day-to-day commercial operation.

Key Features

• 900mm wide freestanding gas range with stainless steel exterior finish
• Four open burners, each rated at 22 MJ/hr (5.5 kW), with cast iron burner bodies
• Vitreous enamel pot stands (trivets) supporting heavy cookware, lift off for easy cleaning
• 300mm smooth mild steel griddle plate, 12mm thick, for even heat transfer
• Dedicated 20 MJ/hr (5.0 kW) griddle burner with pilot, flame failure, and piezo ignition as standard
• Flame failure safety devices standard on all open burners
• Optional pilot and flame failure upgrade kit available per 300mm section on open burners
• Variable high-to-low gas controls on all burners for precise heat adjustment
• Manual pilot ignition on open burners
• High-crown gas static oven rated at 28 MJ/hr (7.8 kW)
• Oven capacity accepts 2/1 GN or 1/1 GN gastronorm pans
• Four-position oven racking system; rack size 750mm x 590mm
• Oven interior dimensions: 760mm wide x 615mm deep x 365mm high
• French door oven opening system for convenient, low-clearance access
• Welded vitreous enamelled oven liner for durability and ease of cleaning
• Total gas input rated at 136 MJ/hr (37.8 kW)
• Available in Natural Gas or LPG; gas type must be specified at time of order
• Gas connection: R 3/4 BSP male
• 170mm splashback included; overall height including splashback 1085mm
• Adjustable front feet and rear rollers for levelling and repositioning
• Fully modular design compatible with Cobra 900mm series suite
• Open undershelf cabinet base
• Freestanding installation; no anchorage required
• Manufactured in New Zealand
• 24-month warranty

Specifications

• Width (mm): 900
• Depth (mm): 800
• Height (mm): 915
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Gas Connection: R 3/4 (BSP) male
• Ignition Type: Manual Pilot
• Burner Output (MJ/h): 136
• Shipping Weight: 210
• Packed Width (mm): 940.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 865.0
• Shipping Cubic: 1.020441000m3
• Material: Stainless Steel
• Undershelf: Open Cabinet Base
• Splash Back: Yes (170mm)
• Country of Origin: New Zealand
• Warranty (months): 24
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 5
• Griddle Plate Thickness (mm): 12
• Griddle Surface: Smooth
• Power Rating: 136 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
