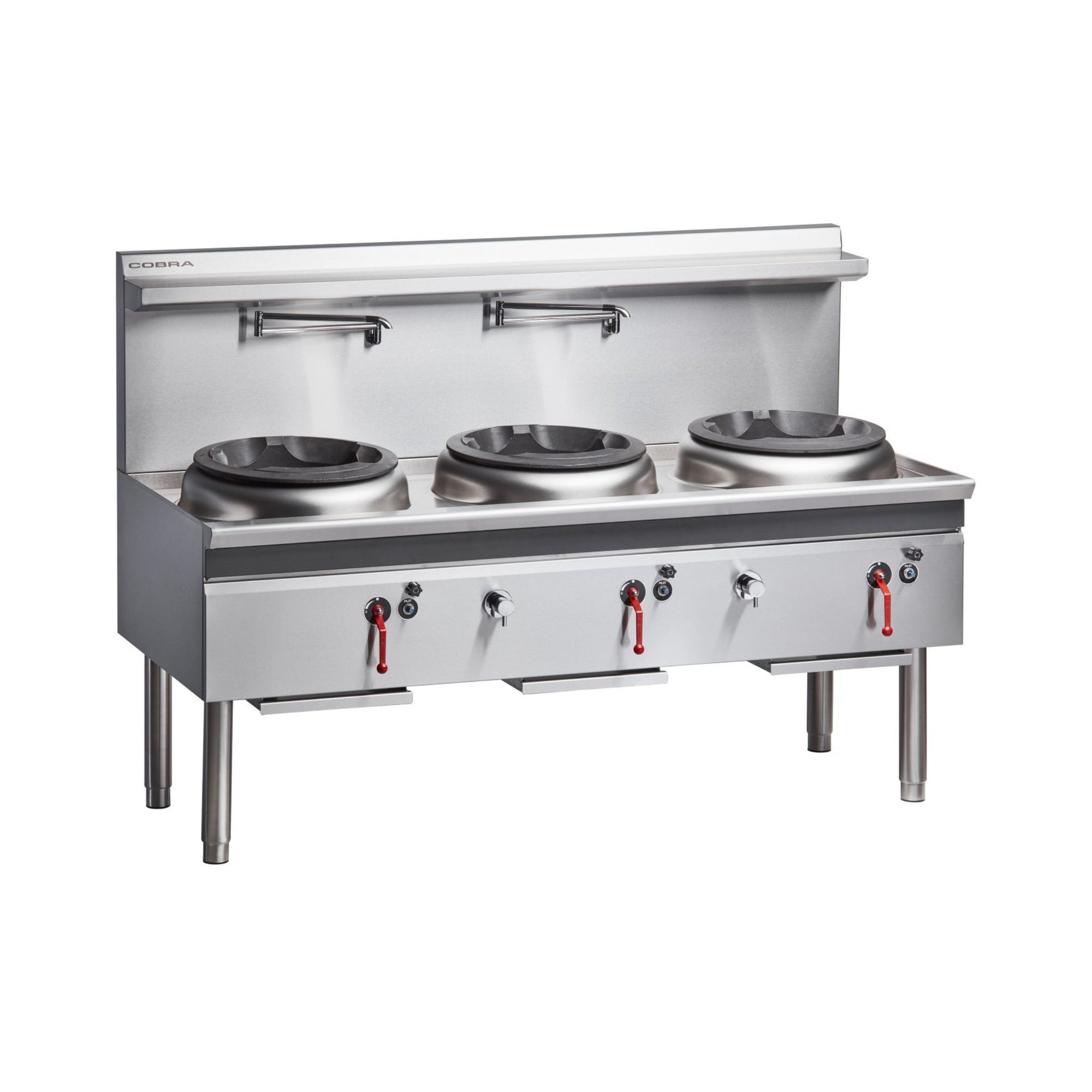

Cobra CW3H-DDD 1800mm Gas Waterless Wok with 3 Duckbill Burners

The Cobra CW3H-DDD is a 1800mm commercial gas waterless wok unit manufactured in New Zealand, built around a welded full chassis frame with a double skin insulated wok deck that eliminates the need for water cooling. Three 105 MJ/hr 18-jet duckbill burners deliver a combined output of 315 MJ/hr, producing the intense, responsive heat required for authentic high-volume Asian cooking including stir-frying, sautéing, and deep caramelisation. Compatible with woks between 40 and 60 cm (16 to 24 inches), the 14-inch wok hole and lift-out wok rings accommodate a wide range of cookware.

Designed for busy commercial kitchens in restaurants, cafes, and high-volume hospitality venues, the CW3H-DDD keeps its footprint compact at just 800mm deep while offering a full-height splashback with shelf, a folding laundry arm, and a rear waste channel for practical day-to-day operation. Each burner station features an independent pilot burner with flame failure protection, a dedicated On/Off pilot control valve, and a main burner On/Off valve with High-Low adjustment, giving chefs precise control at every position. The stainless steel construction throughout ensures durability and straightforward cleaning, and the unit is available in both Natural Gas and LPG configurations.

Key Benefits

• Waterless insulated double skin wok deck removes the need for cooling water, cutting running costs, reducing steam output, and lowering cleaning demands compared to traditional wok systems.
• Three independent 105 MJ/hr duckbill burners allow each wok position to be adjusted individually, giving chefs precise heat control simultaneously across all stations.
• Flame failure protection with a pilot burner on every station enhances operational safety and ensures reliable re-ignition in a fast-paced kitchen environment.
• Compact 800mm depth makes the unit practical for kitchens where floor space is limited, without sacrificing burner power or workflow capacity.
• Lift-out wok rings and a slide-out stainless steel spill tray simplify thorough cleaning and reduce downtime between services.
• Rear waste channel directs spills and liquid waste away from the cooking surface efficiently, keeping the work area cleaner during service.
• High splashback with an integrated shelf and folding laundry arm provides useful overhead storage and helps protect surrounding surfaces from heat and grease.
• Full chassis welded frame construction and New Zealand manufacture ensure long-term structural durability under continuous commercial use.
• Available in both Natural Gas and LPG, with suite-matching Cobra design allowing seamless integration into a coordinated commercial kitchen fit-out.

Key Features

• 1800mm wide freestanding gas waterless wok unit, manufactured in New Zealand
• Welded full chassis frame construction for structural rigidity and long-term durability
• Double skin insulated wok deck - no water cooling required
• Three 105 MJ/hr 18-jet duckbill burners, combined output 315 MJ/hr
• 14-inch wok hole compatible with woks between 40 and 60 cm (16 to 24 inches)
• Lift-out wok rings allow full access for cleaning
• Independent pilot On/Off control with flame failure valve on each burner station
• Main burner On/Off valve with High-Low adjustment on each station for precise heat control
• High splashback (170mm) with integrated shelf
• Folding laundry arm mounted on splashback
• Rear waste channel for efficient drainage and spill management
• Stainless steel spill tray, removable for cleaning
• 800mm compact depth suits tighter kitchen layouts
• Stainless steel construction throughout - robust, hygienic, and easy to maintain
• Open undershelf cabinet base for storage
• Available in Natural Gas or LPG - specify at time of order
• Cobra suite-matching design for coordinated kitchen fit-outs
• 2-year parts and labour warranty

Specifications

• Width (mm): 1800
• Depth (mm): 800
• Height (mm): 771
• Weight (kg): 599.0
• Colour: Stainless Steel
• Gas Type: LPG|Natural Gas
• Ignition Type: Pilot with Flame Failure
• Burner Output (MJ/h): 315
• Shipping Weight: 280
• Packed Width (mm): 900.0
• Packed Height (mm): 1400.0
• Packed Depth (mm): 1900.0
• Shipping Cubic: 2.394000000m3
• Material: Stainless Steel
• Undershelf: Open Cabinet Base
• Splash Back: Yes (170mm)
• Country of Origin: New Zealand
• Warranty (months): 24
• Installation Type: Freestanding
• Mounting Type: Freestanding
• Fuel Type: Gas
• Number of Burners: 3
• Power Rating: 315 MJ/h
• Power Supply: N/A (Gas)
• Voltage/Phase: N/A (Gas)
