Overview

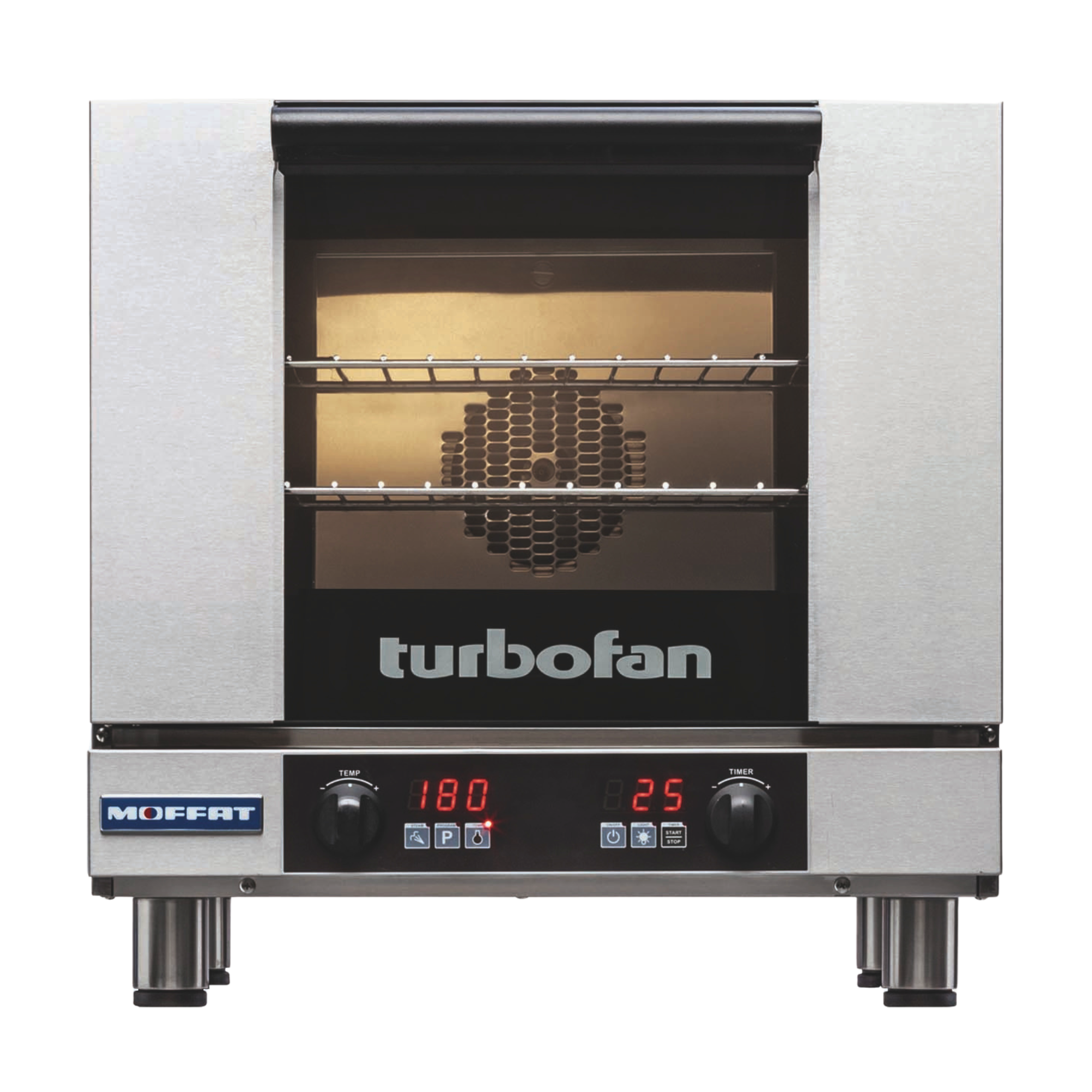

Turbofan E23D3 Half Size Tray Digital Electric Convection Oven

The Turbofan E23D3 is a compact half-size digital electric convection oven built for professional kitchens where space is at a premium but performance cannot be compromised. Constructed from 304 stainless steel in New Zealand, it accommodates three half-size sheet pans or GN 2/3 pans at 85mm spacing within a footprint just 610mm wide, making it well suited to cafes, bakeries, restaurants, and catering operations running smaller production volumes or supplemental cooking alongside larger equipment.

At the heart of the E23D3 is a 2.8kW heating element paired with a bi-directional reversing fan system that actively circulates heat for even, consistent results across all tray positions. Digital time and temperature controls with large 20mm high displays give operators straightforward, precise command over every cook cycle, while the Safe-Touch vented drop-down door and 15A plug-in cordset allow the unit to be deployed quickly without specialist electrical installation.

Key Benefits

• Bi-directional reversing fan circulates heat evenly across all three tray levels, eliminating hot spots and delivering consistent baking and roasting results without the need to rotate pans.
• Three-tray capacity handles meaningful batch volumes in a 610mm-wide footprint, freeing up bench and floor space in tight commercial kitchens.
• Digital time and temperature controls with large 20mm displays simplify operation and reduce the chance of setting errors during busy service periods.
• 15A plug-in cordset means the oven can be connected to a standard commercial power outlet without additional electrical work, reducing installation time and cost.
• Temperature range of 50°C to 260°C covers a broad spectrum of cooking tasks from gentle warming through to high-heat roasting and baking.
• Halogen lamp oven lighting lets operators monitor cooking progress through the door without opening it and disrupting the cooking environment.
• Safe-Touch vented drop-down door design reduces the risk of burns during loading and unloading, supporting safer kitchen workflows.
• 304 stainless steel construction is durable, corrosion-resistant, and straightforward to clean, meeting the hygiene demands of commercial foodservice environments.
• Accepts both 460mm x 330mm half-size sheet pans and GN 2/3 pans, giving operators flexibility to use existing pan inventory.

Key Features

• 3 x 460mm x 330mm (18" x 13") half-size sheet pan capacity
• 3 x GN 2/3 pan capacity
• 85mm tray spacing
• Bi-directional reversing fan system for uniform heat circulation
• 2.8kW heating element
• Temperature range: 50°C to 260°C
• Electronic thermostat control
• Digital display with time and temperature controls
• Large easy-view 20mm high display characters
• Halogen lamp internal oven lighting
• Safe-Touch vented drop-down door
• 15A plug-in cordset fitted (1P+N+E, 230-240V, 50Hz)
• Compact 610mm external width
• Internal oven dimensions: W 495 x D 340 x H 305mm
• Rack dimensions: W 460 x D 330mm
• 304 stainless steel construction
• Single-phase power supply (230-240V, 50Hz, 3kW, 12A)
• Manufactured in New Zealand

Specifications

• Width (mm): 610
• Depth (mm): 642
• Height (mm): 607
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 54.6
• Packed Width (mm): 750.0
• Packed Height (mm): 635.0
• Packed Depth (mm): 705.0
• Shipping Cubic: 0.335756000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E|230-240V|3kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 3kW, 12A
• Pan Count: 3
