Overview

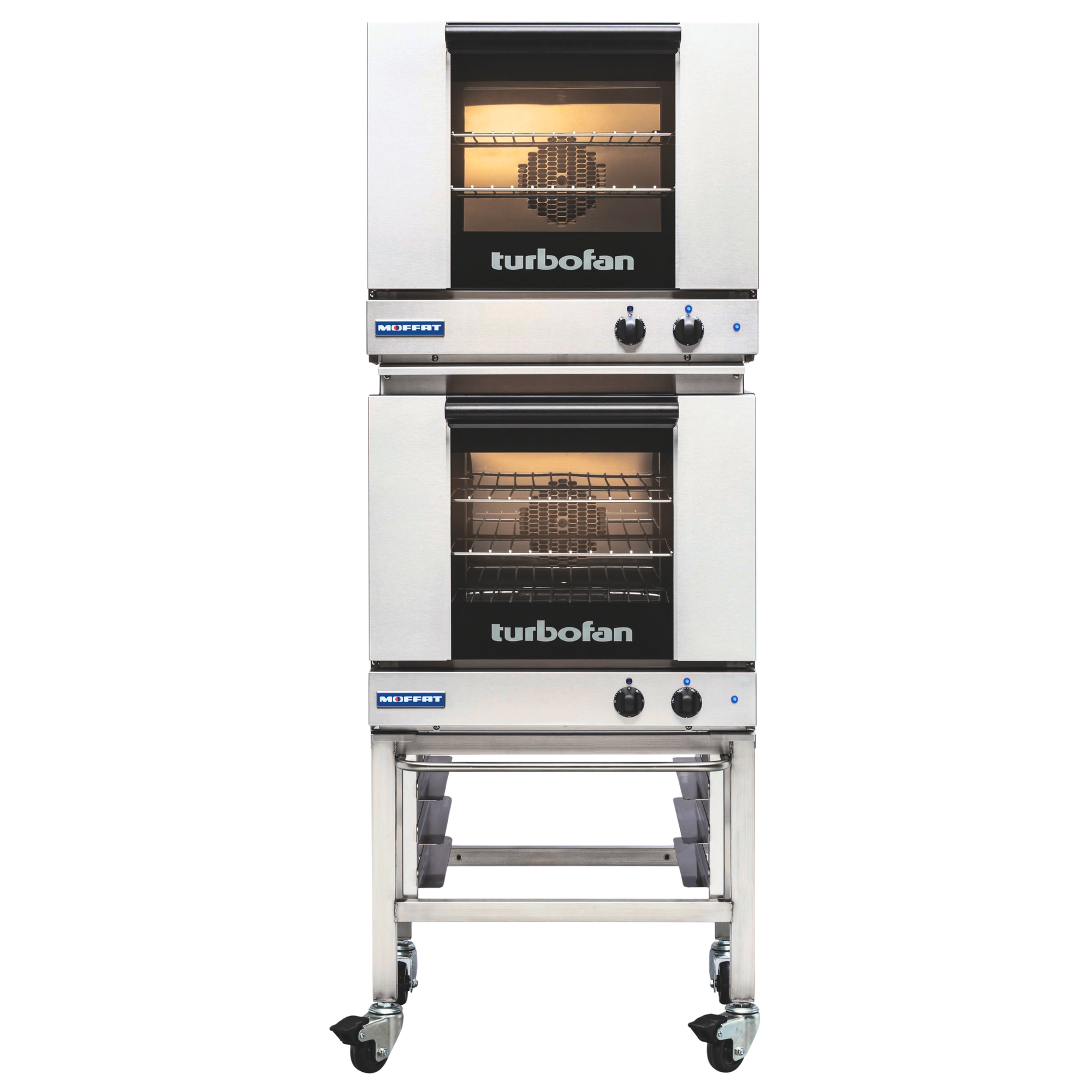

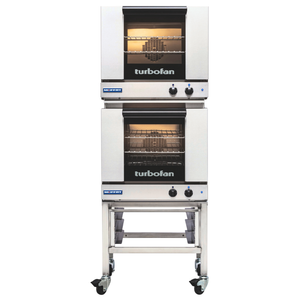

Turbofan E23M3/2C Stacked Half-Size Convection Oven Set with Mobile Castor Stand

The Turbofan E23M3/2C pairs two E23M3 half-size electrically powered convection ovens arranged one above the other on a single wheeled castor stand, creating a high-output cooking station within a 610mm-wide footprint. Each cavity takes three half-size sheet pans measuring 460 x 330mm or GN 2/3 trays, giving the combined assembly a total capacity of six pans across both chambers. Built in New Zealand from 304 stainless steel, the unit is equally at home in cafés, restaurants, catering operations and any commercial kitchen where output must be maximised without expanding the floor area.

Every oven in the stack is equipped with a bi-directional reversing fan that circulates air evenly through the cavity, a mechanical thermostat adjustable from 50°C to 260°C, and a manual 60-minute countdown timer with an audible buzzer alert at cycle end. Panel-mounted indicators show power-on, heating-on and time-up status at a glance, while an over-temperature safety cut-out guards equipment during extended service. A factory-fitted 15A cordset on a single-phase supply makes installation plug-and-go, and the castor stand allows the entire assembly to be moved or reconfigured without additional tools or labour.

Key Benefits

• Stacking two ovens vertically doubles cooking output while keeping the overall installation width to just 610mm, making the configuration well suited to kitchens where bench and floor space is at a premium.
• A combined six-pan capacity across both cavities supports simultaneous high-volume production, allowing busy café, restaurant and catering teams to maintain throughput during peak service.
• The bi-directional reversing fan promotes uniform airflow throughout each oven chamber, minimising hot spots and delivering consistent baking and roasting results from one cycle to the next.
• Mechanical thermostat and manual timer controls are uncomplicated to learn and service, reducing operator training time and lowering the likelihood of control-system failure under heavy daily use.
• The wheeled castor stand allows the entire stacked assembly to be repositioned, cleaned around or relocated between kitchen zones without requiring tools or additional labour.
• An over-temperature safety cut-out automatically intervenes if the oven exceeds safe operating limits, protecting both food quality and equipment longevity during prolonged cooking sessions.
• The factory-fitted 15A cordset on a single-phase supply eliminates the need for hard-wired electrical installation, making the unit straightforward to deploy and simple to move between sites or kitchen areas.
• Exterior surfaces and oven chambers constructed from 304 stainless steel support hygiene compliance and provide the durability required for continuous commercial operation.

Key Features

• Two E23M3 half-size electrically powered convection ovens arranged in a stacked configuration on a single castor base stand
• Each cavity accommodates three half-size sheet pans (460 x 330mm per pan), for a combined total of six pans across the full stack
• Each oven also accepts three GN 2/3 trays per cavity
• 85mm tray spacing between shelf positions in each oven
• Bi-directional reversing fan system for even airflow and consistent cooking results
• Mechanical thermostat adjustable from 50°C to 260°C
• Manual 60-minute countdown timer
• Audible buzzer alert at end of timed cycle
• Control panel indicators for power-on, heating-on and time-up status
• Over-temperature safety cut-out for equipment protection
• Single-phase electrical connection with 15A cordset fitted (1P+N+E, 230–240V, 3.0kW, 50Hz)
• Mobile castor base stand for flexible kitchen layout and easy repositioning
• Constructed from 304 stainless steel
• Manufactured in New Zealand
• Overall dimensions: 610mm wide x 643mm deep x 1653mm high

Specifications

• Width (mm): 610
• Depth (mm): 642
• Height (mm): 1653
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E|230-240V|3.0kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
