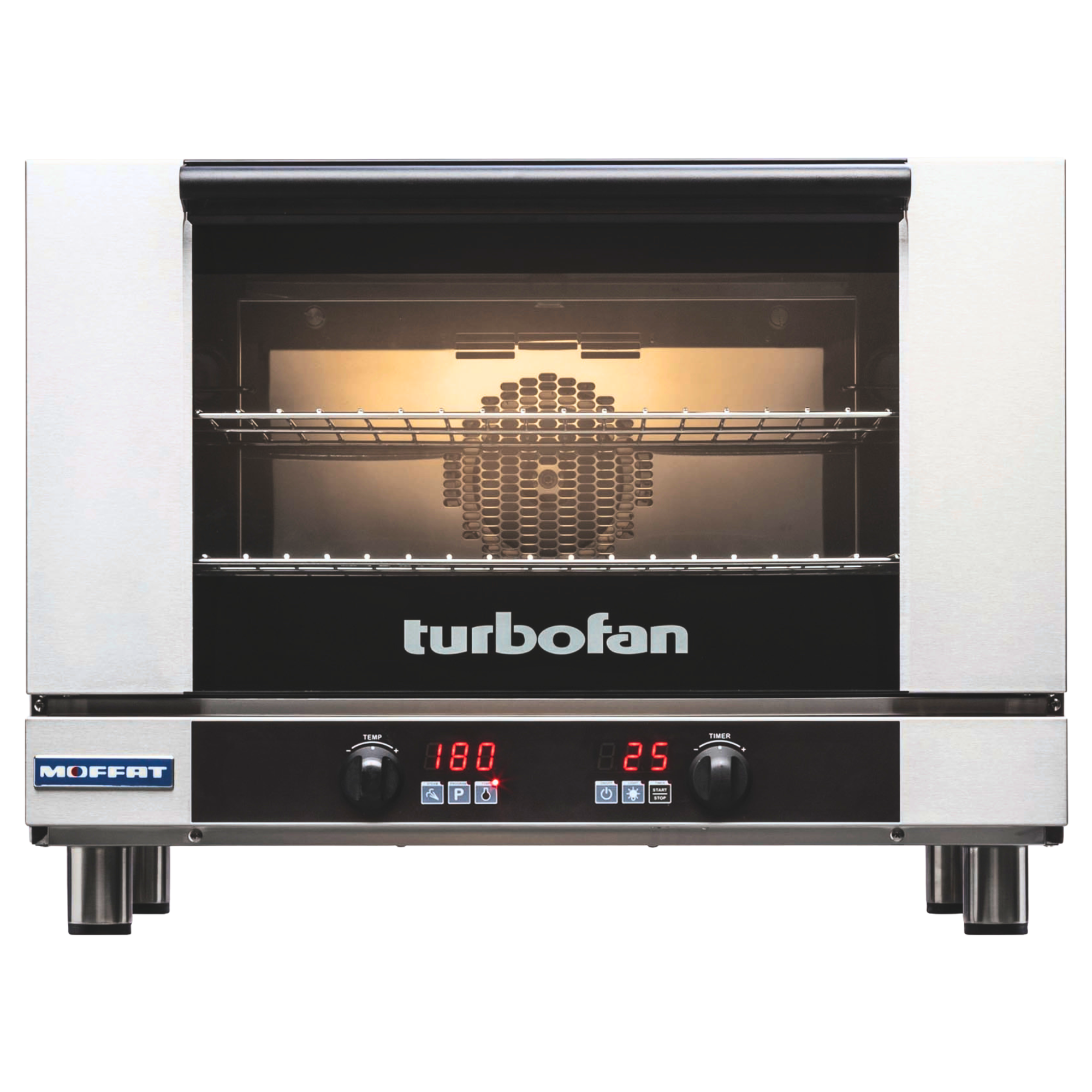

Turbofan E27D2 Full Size Tray Digital Electric Convection Oven

The Turbofan E27D2 is a compact, full-size tray digital electric convection oven built in New Zealand for consistent, high-performance results in commercial kitchens. Accommodating two full-size 460 x 660mm sheet pans or two 400 x 600mm trays with 115mm tray spacing, it delivers reliable baking, roasting, and reheating across a wide range of products including baguettes, par-baked and frozen doughs, frozen pizzas, chicken, cookies, and cakes. At just 810mm wide, it fits comfortably into space-conscious operations such as cafes, small restaurants, and catering venues without compromising on output.

A bi-directional reversing fan system ensures even heat distribution throughout the cavity, while the built-in steam injection mode with manual injection capability adds moisture control for superior baking results. The digital control interface features large 20mm high displays for easy readability, an electronic thermostat, and 20 programmable cooking programs with up to 3 cooking stages per program plus stage-end alarms. The Safe-Touch vented drop-down door, double-glazed construction, and dual halogen interior lamps complete a well-considered package designed for durability, hygiene, and daily operational ease.

Key Benefits

• Bi-directional reversing fan delivers uniform airflow and even heat throughout the oven cavity, reducing hot spots and producing consistent results across both trays simultaneously.
• Steam injection mode with manual injection gives operators precise moisture control, essential for achieving quality crusts on breads, baguettes, and pastries.
• Twenty programmable cooking programs with 3-stage cooking and stage-end alarms allow recipes to be saved and recalled, ensuring repeatable results across multiple staff and service periods.
• Compact 810mm footprint makes efficient use of limited bench or floor space while still handling full-size sheet pans, making it practical for cafes and smaller commercial kitchens.
• Simple 15A plug-in cordset means no hardwired electrical installation is required, reducing setup time and allowing flexibility in kitchen placement.
• Large 20mm high digital displays for time and temperature are easy to read across a busy kitchen, minimising operator errors during service.
• Safe-Touch vented drop-down door reduces burn risk for staff and allows hands-free access when loading or unloading trays.
• Compatible with an optional stainless steel stand (SK2731N/U) with castors for mobile, ergonomic positioning in the kitchen.
• Constructed from 304 stainless steel for a hygienic, corrosion-resistant finish that meets the demands of intensive commercial use and regular cleaning.

Key Features

• Capacity: 2 x 460mm x 660mm (18" x 26") full-size sheet pans or 2 x 400mm x 600mm trays
• 115mm tray spacing to accommodate a variety of food heights and pan types
• Oven internal dimensions: 695mm (W) x 470mm (D) x 305mm (H)
• Bi-directional reversing fan system for uniform heat distribution and consistent baking
• Steam injection mode with manual injection capability for moisture control
• 2.8kW heating power
• Electronic thermostat control with temperature range of 50°C to 260°C
• 20 programmable cooking programs with up to 3 cooking stages per program and stage-end alarms
• Digital time and temperature controls with large 20mm high easy-view displays
• Dual halogen interior lamps for clear visibility of food during cooking
• Safe-Touch vented drop-down door to reduce burn risk and aid loading
• Double-glazed door construction for improved insulation and energy efficiency
• 15A plug-in cordset fitted; electrical requirements 230-240V, 50Hz, 1P+N+E, 3kW, 12A
• Compact 810mm width suitable for space-limited commercial kitchen environments
• External dimensions: 810mm (W) x 762mm (D) x 607mm (H) including 76mm feet
• Constructed from 304 stainless steel throughout
• Made in New Zealand
• Optional stainless steel stand SK2731N (suits 600 x 400mm trays and 1/1 GN pans) or SK2731U (suits 660 x 460mm pans), featuring 4 x 76mm swivel castors with dual swivel and wheel lock on front castors, 6-position tray runners, and welded square tube frame; stand dimensions 810mm (W) x 650mm (D) x 880mm (H), supplied flat-pack for on-site assembly

Specifications

• Width (mm): 810
• Depth (mm): 763
• Height (mm): 607
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 77.8
• Packed Width (mm): 870.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 755.0
• Shipping Cubic: 0.548470000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E|230-240V|3kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 3kW, 12A
• Pan Count: 2
