Overview

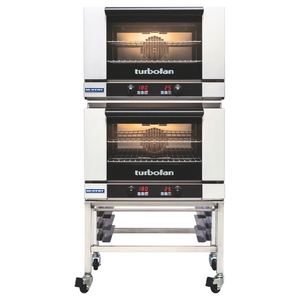

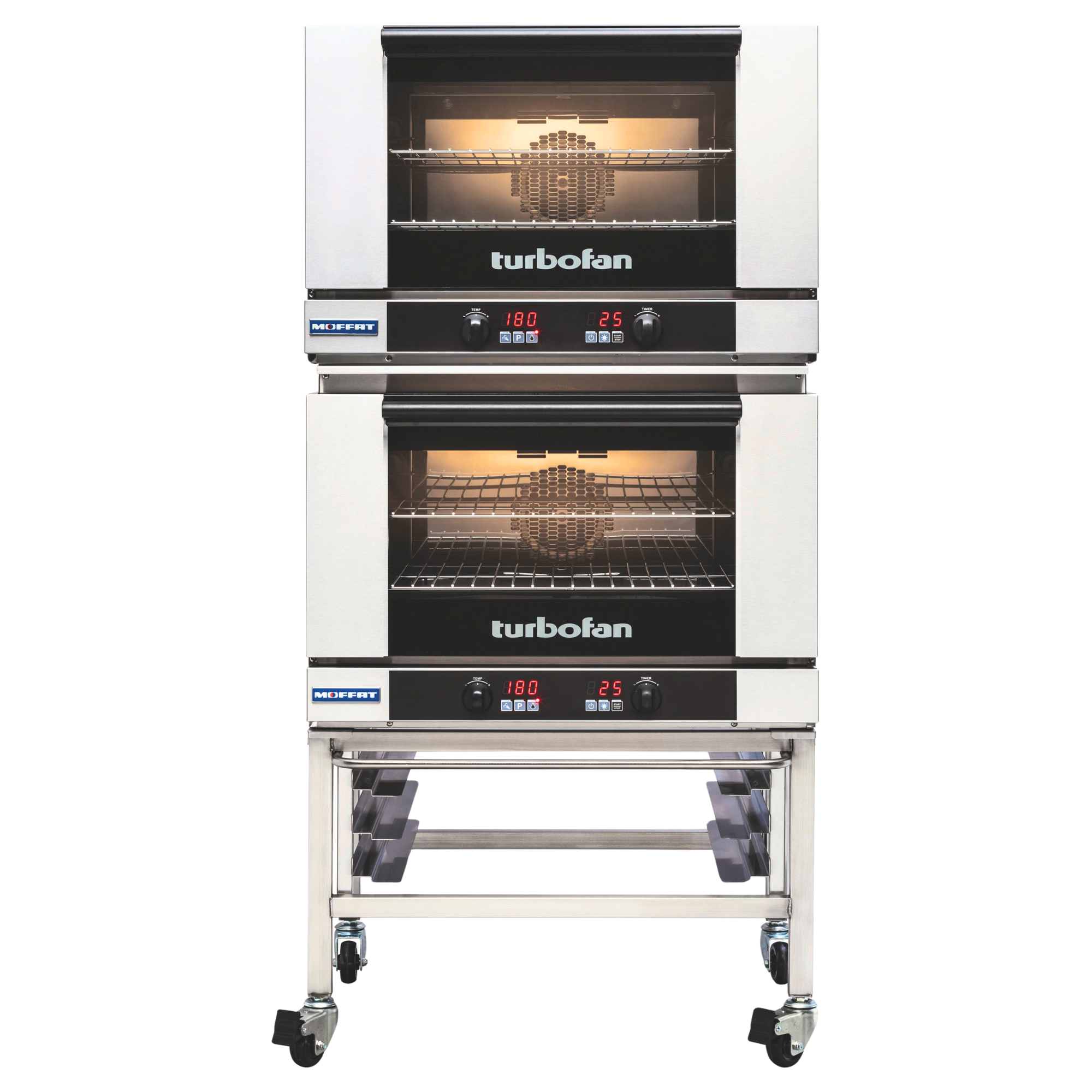

Turbofan E27D2/2 Full Size Tray Digital Electric Convection Ovens Double Stacked on Stainless Steel Base Stand

The Turbofan E27D2/2 brings together two E27D2 full-size digital electric convection ovens double stacked on a stainless steel adjustable-feet base stand, delivering a total of four full-size tray positions in a single compact footprint. Running on a 15A plug-in cordset at 2.8kW per oven, the unit is engineered in New Zealand from 304 stainless steel and suits cafes, bakeries, catering operations and restaurants that need serious batch-cooking capacity without a large equipment footprint.

Each oven chamber features a bi-directional reversing fan for fast, even heat distribution, a steam injection system for superior crust development, and a digital control panel offering both manual and 20-program cooking modes with three-stage cooking sequences and stage-end alarms. The generous 115mm tray spacing accommodates full-size baguettes, fresh and par-baked doughs, frozen pizzas, chicken, cookies, cakes and confectionery, making the E27D2/2 an exceptionally versatile workhorse across a wide range of menu applications.

Key Benefits

• Double-stacked configuration provides four full-size tray positions while occupying the same bench space as a single oven, maximising output per square metre of kitchen floor area.
• Bi-directional reversing fan ensures uniform airflow across every tray, reducing hot spots and delivering consistent bake results batch after batch.
• Steam injection mode, including manual injection, improves crust development and moisture retention, broadening the range of bakery and roasting applications.
• 20 programmable cooking profiles with three-stage sequences and stage-end alarms reduce operator error and support consistent results across different shifts and skill levels.

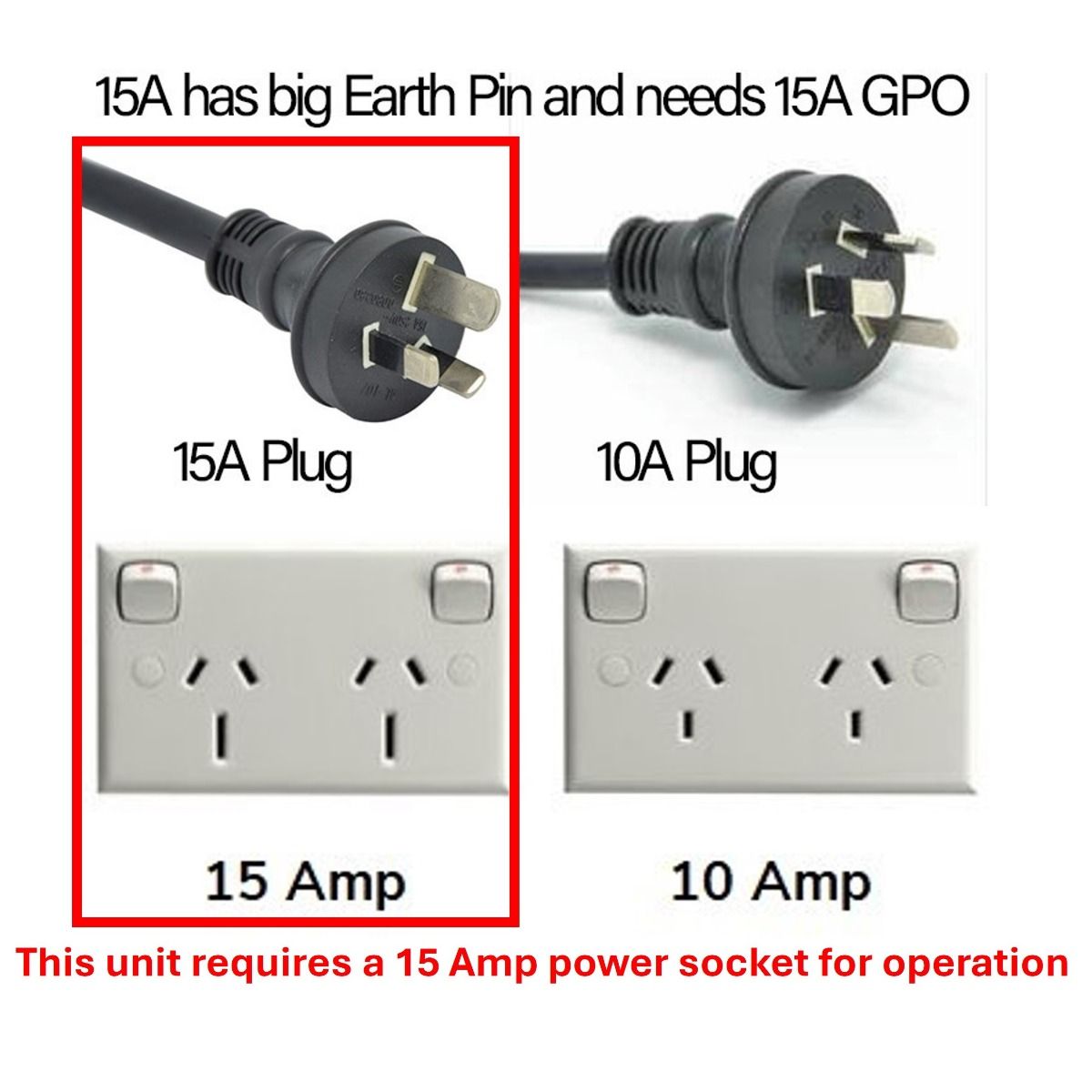

• 15A plug-in cordset means no hard-wiring is required, simplifying installation and allowing the oven to be relocated if kitchen layouts change.
• Safe-Touch vented drop-down door minimises burn risk during loading and unloading and promotes safer operation in busy service environments.
• Dual halogen lamps provide clear visibility inside the oven chamber, allowing operators to monitor product without opening the door and losing heat.
• Adjustable feet on the base stand allow precise levelling on uneven floors, ensuring stable operation and professional presentation.
• 304 stainless steel construction throughout supports hygiene, corrosion resistance and long service life in demanding commercial kitchen conditions.

Key Features

• Two E27D2 full-size convection ovens double stacked on a stainless steel adjustable-feet base stand (no castors)
• Each oven accommodates 2 x 460mm x 660mm (18" x 26") full-size sheet pans or 2 x 400mm x 600mm trays, for a combined total of 4 trays across the stack
• 115mm tray spacing per oven chamber to handle tall products including full-size baguettes
• Bi-directional reversing fan system for fast heat-up and even airflow throughout the oven cavity
• Steam injection mode with manual injection capability for enhanced crust and moisture control
• Digital display with large 20mm-high easy-view characters for time and temperature
• Electronic thermostat control and electronic timer
• Manual mode and program mode with 20 storable cooking programs
• Three-stage cooking sequences within each program, with stage-end alarms
• Dual halogen interior lamps for clear product visibility during cooking
• Safe-Touch vented drop-down door design to reduce burn risk during loading
• 2.8kW heating element per oven cavity
• 15A plug-in cordset fitted; 3.0kW, 230-240V, 50Hz, single phase (1P+N+E)
• 304 stainless steel construction
• Manufactured in New Zealand
• Overall dimensions: 810mm wide x 763mm deep x 1571mm high
• Packed volumes: each oven 0.55m³, stand 0.08m³; packed weights: each oven 77.8kg, stand 19kg

Specifications

• Width (mm): 810
• Depth (mm): 763
• Height (mm): 1571
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E 3.0kW|230-240V|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
