Overview

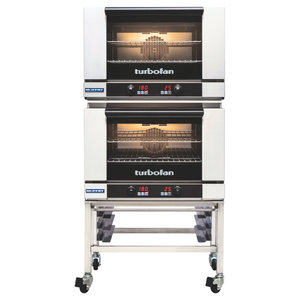

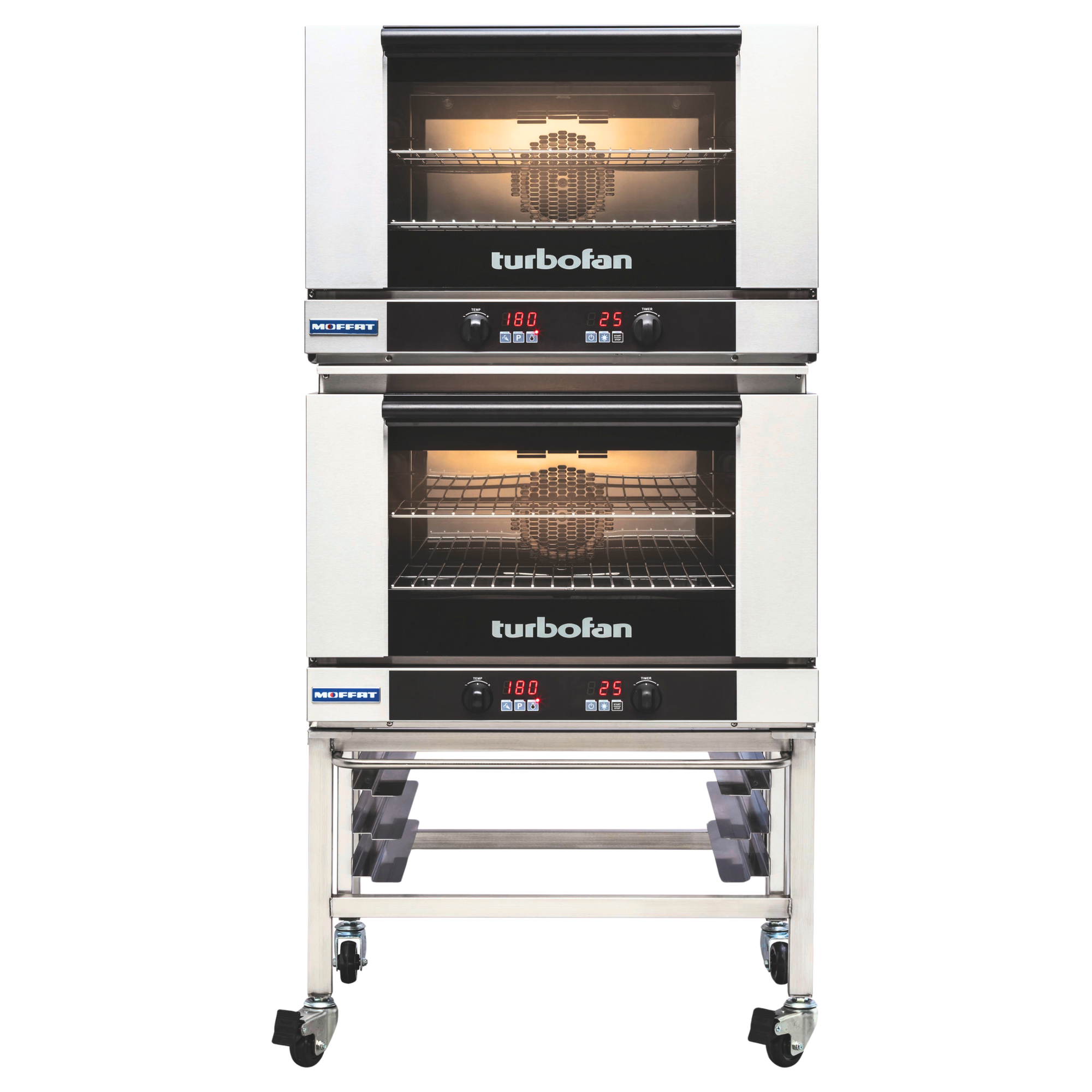

Turbofan E27D2/2C Full Size Tray Digital Electric Convection Ovens Double Stacked on a Stainless Steel Base Stand

The Turbofan E27D2/2C brings together two E27D2 full size tray digital electric convection ovens double stacked on a stainless steel base stand, delivering a combined four-tray capacity from a single compact footprint. Designed and manufactured in New Zealand from 304 stainless steel, this plug-in 15A, 2.8kW unit is purpose-built for cafes, bakeries, restaurants and catering operations that demand consistent, high-volume output without occupying excessive floor space.

Each oven chamber accommodates two full size 460mm x 660mm sheet pans or two 400mm x 600mm trays at a generous 115mm tray spacing, making it equally capable with full size baguettes, fresh and par-baked doughs, frozen pizzas, chicken, cookies and confectionery. A bi-directional reversing fan system ensures even heat distribution throughout every bake, while steam injection, dual halogen lamps, and a 20-program digital control interface with three-stage cooking give operators precise, repeatable results across a broad menu range.

Key Benefits

• Double stacked configuration doubles oven output while keeping the same floor footprint, ideal for kitchens where bench and floor space is at a premium.
• Combined four-tray capacity across two chambers enables large batch cooking of both savoury and baked goods simultaneously.
• Plug-in 15A cordset means no hard-wiring is required, simplifying installation and allowing relocation between kitchen positions as needed.
• Steam injection mode and manual injection capability introduce moisture during baking, producing superior crust development and texture in breads, pastries and doughs.
• Twenty programmable recipes with three-stage cooking and stage-end alarms reduce operator dependency, ensuring consistent results across different staff and shifts.
• Bi-directional reversing fan system circulates heat evenly throughout the cavity, eliminating hot spots and reducing the need to rotate trays mid-cook.
• Safe-Touch vented drop-down door minimises the risk of burns during loading and unloading, supporting safer working conditions in a busy service environment.
• Large 20mm high digital displays for time and temperature are easy to read at a glance across the kitchen, reducing the chance of misreading settings during a busy service.
• 304 stainless steel construction throughout the ovens and base stand provides durability, ease of cleaning and compliance with commercial kitchen hygiene standards.

Key Features

• Two E27D2 full size tray digital electric convection ovens double stacked on a stainless steel base stand
• Each oven accepts 2 x 460mm x 660mm (18" x 26") full size sheet pans or 2 x 400mm x 600mm trays, for a combined four-tray total capacity
• 115mm tray spacing per oven chamber accommodates tall products including full size baguettes and larger baked goods
• Bi-directional reversing fan system for even heat distribution throughout the oven cavity
• Dual halogen lamps for clear interior illumination
• Steam injection mode with both automatic and manual injection options
• Digital display time and temperature controls with large, easy-view 20mm high characters
• Electronic thermostat control and electronic timer
• Manual mode and program mode operation
• 20 programs with three-stage cooking sequences and stage-end alarms
• Safe-Touch vented drop-down door design
• 2.8kW heating output per oven
• 15A plug-in cordset fitted (12A rated, 1P+N+E, 230-240V, 50Hz single phase)
• 304 stainless steel construction
• Stainless steel base stand included
• Manufactured in New Zealand
• Overall dimensions: 810mm wide x 763mm deep x 1653mm high
• Packed weight: 2 x 77.8kg (ovens) plus 22kg (stand)

Specifications

• Width (mm): 810
• Depth (mm): 763
• Height (mm): 1653
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E 3.0kW|230-240V|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
