Overview

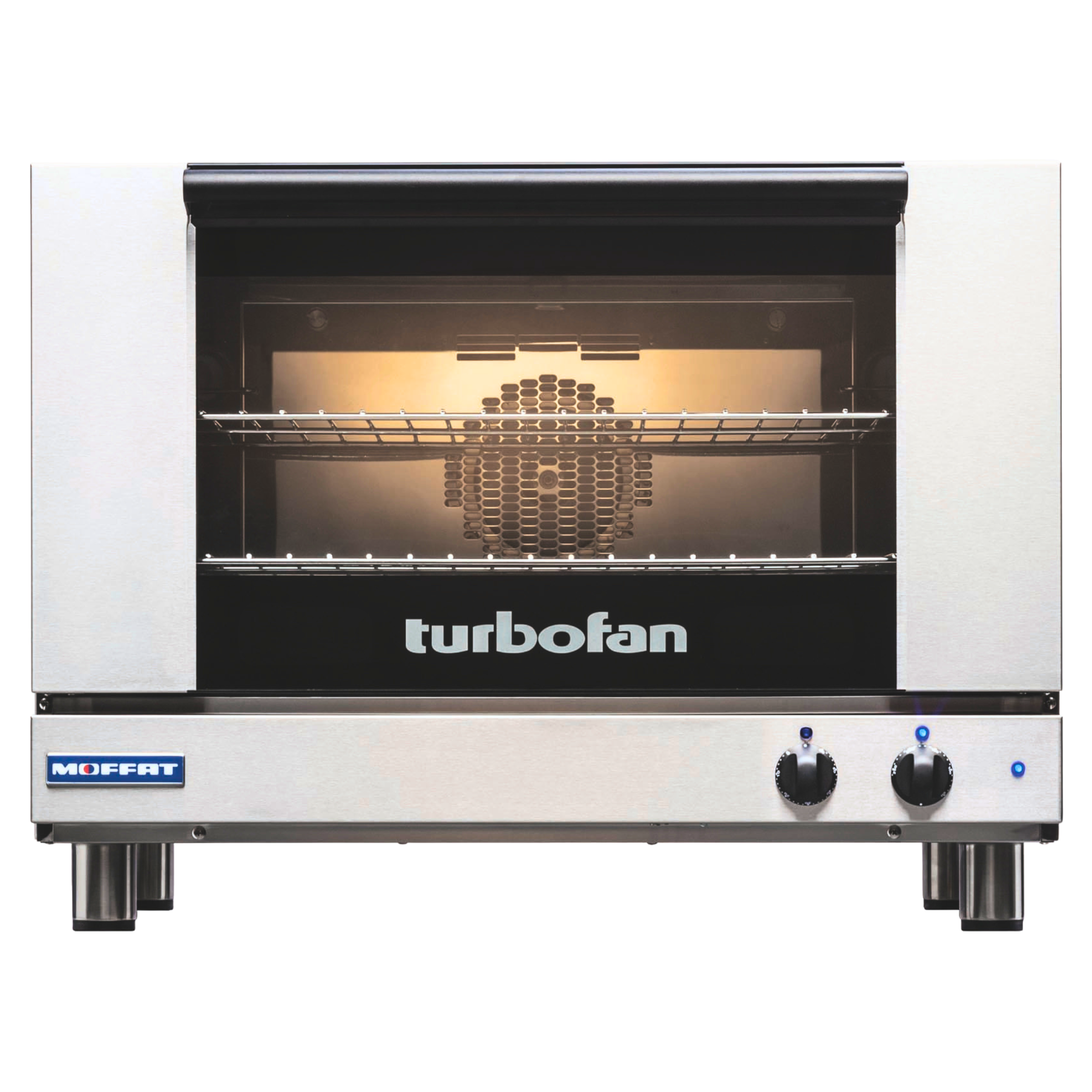

Turbofan E27M2 Full Size Tray Manual Electric Convection Oven

The Turbofan E27M2 is a compact, single-phase electric convection oven built in New Zealand from 304 stainless steel, designed to deliver fast, even baking across two full-size sheet pans. Its bi-directional reversing fan circulates heat uniformly throughout the cavity, making it a reliable workhorse for cafés, bakeries, catering operations, and smaller commercial kitchens that demand consistent results without a large footprint.

Straightforward mechanical controls, a 50–260°C thermostat, and a 60-minute manual timer make the E27M2 easy to operate in fast-paced environments, while purpose-built safety and convenience features — including an over-temperature cut-out, stay-cool door handle, and dual halogen oven lamps — support safe, efficient daily service. The oven accepts both 460 x 660mm full-size sheet pans and 600 x 400mm gastronorm-style trays, giving operators flexibility across baking, roasting, reheating, and finishing tasks.

Key Benefits

• Bi-directional reversing fan ensures uniform airflow across both tray positions, reducing hot spots and delivering consistent bake results every cycle.
• Generous 115mm tray spacing accommodates tall products such as full-size baguettes, proved doughs, and whole chickens without restriction.
• Plug-in single-phase connection means no hard-wiring is required, simplifying installation and allowing the oven to be repositioned as kitchen layouts change.
• Dual halogen oven lamps allow operators to monitor cooking progress through the door glass without opening the oven and losing heat.
• Simple mechanical thermostat and 60-minute timer with audible buzzer keep operation intuitive for all skill levels and reduce training time.
• Over-temperature safety cut-out protects food quality and equipment longevity by preventing runaway heat during busy service periods.
• Vitreous enamel oven chamber and easy-clean door glass system simplify end-of-service cleaning and support kitchen hygiene standards.
• Safe-touch vented drop-down door and stay-cool handle minimise burn risk when loading and unloading trays during continuous operation.
• Compatible with the optional SK2731U stainless steel stand, allowing the oven to be raised to an ergonomic working height with lockable castors for mobility.

Key Features

• 2 x 460mm x 660mm full-size sheet pan capacity
• 2 x 600mm x 400mm tray capacity
• 115mm tray spacing between rack positions
• Single bi-directional reversing fan system for even heat distribution
• Mechanical thermostat with 50–260°C temperature range
• Manual 60-minute timer with time-up indicator and audible buzzer
• Power ON and Heating ON control panel indicator lights
• Time-Up control panel indicator
• Over-temperature safety cut-out
• Dual halogen oven lamps for interior visibility
• Vitreous enamel oven chamber for easy cleaning and durability
• Safe-touch vented drop-down door design
• Stay-cool door handle for operator safety
• Heavy-duty door hinges
• Plug-in continuous oven door seal
• Easy-clean door glass system
• 2 oven wire racks supplied as standard
• 6-position tray runners as standard
• 15A cordset fitted, single-phase connection (1P+N+E, 230–240V, 50Hz, 3kW, 12A)
• Constructed from 304 stainless steel
• Compact 810mm wide external footprint
• Internal cavity dimensions: 695mm W x 470mm D x 305mm H
• Dimensions including 76mm feet: 810mm W x 762mm D x 607mm H
• Manufactured in New Zealand
• Optional SK2731U stainless steel stand available, compatible with Turbofan E27, E28, and E31 series; features four 76mm swivel castors (two with dual swivel and wheel lock), welded square-tube frame, and supplied CKD for on-site assembly (stand dimensions: 810mm W x 650mm D x 880mm H)

Specifications

• Width (mm): 810
• Depth (mm): 763
• Height (mm): 607
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 77.8
• Packed Width (mm): 870.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 755.0
• Shipping Cubic: 0.548470000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Rating: 12A|15A cordset fitted|1P+N+E|230-240V|3kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 3kW, 12A
• Pan Count: 2
