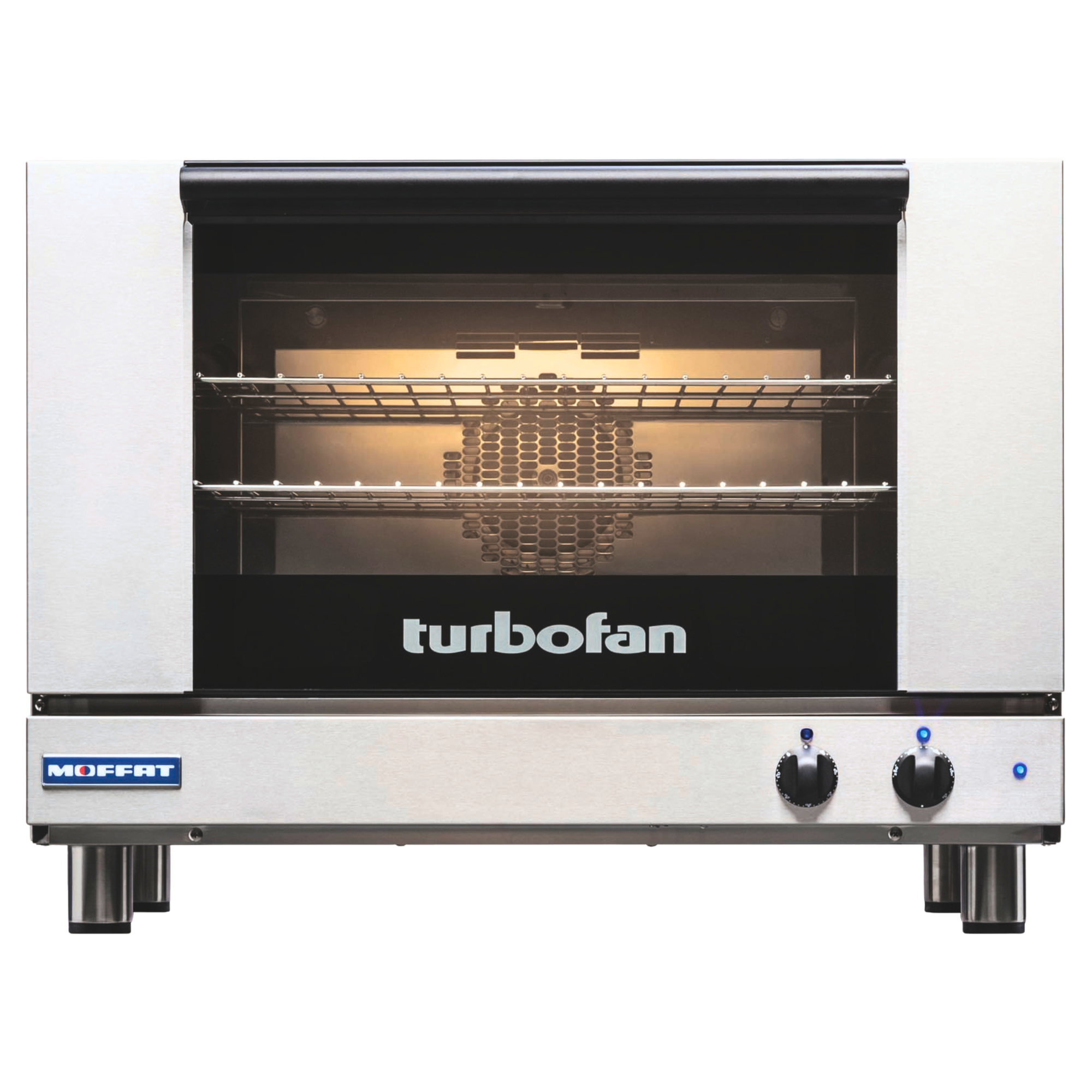

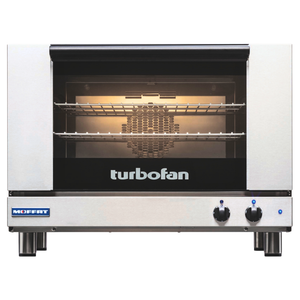

Turbofan E27M3 Manual Electric Convection Oven – Full-Size Tray Capacity

The Turbofan E27M3 is a single-phase manual electric convection oven designed for dependable, everyday use across cafes, restaurants, bakeries and catering kitchens. Built in New Zealand from 304 stainless steel, it holds three full-size sheet pans measuring 460 x 660mm, or alternatively three 600 x 400mm trays, with 85mm of vertical spacing between each runner position. A bi-directional reversing fan delivers uniform fan-forced heat to every rack, making the oven well suited to batch baking, roasting and reheating.

The oven chamber is finished in vitreous enamel and lit by dual halogen lamps, while the door features double-glazed easy-clean glass, a vented drop-down design, a stay-cool handle and reinforced hinges to support safe, practical day-to-day operation. Mechanical thermostat and timer controls keep operation straightforward for staff at all experience levels, and a built-in over-temperature safety cut-out provides continuous protection during busy service.

Key Benefits

• Bi-directional reversing fan circulates heat evenly across all three rack positions, eliminating hot spots and producing consistent baking and cooking results throughout every batch.
• A capacity of three full-size trays maximises throughput without increasing the kitchen footprint, keeping production efficient in small to medium-sized operations.
• Mechanical thermostat and manual timer controls are intuitive for operators of all skill levels, cutting training time and reducing the risk of error during busy service periods.
• Dual halogen oven lamps illuminate the entire cavity so operators can monitor product progress without opening the door, helping to retain heat and reduce energy waste.
• The vented drop-down door design combined with a stay-cool handle shields staff from burns during loading and unloading, improving everyday workplace safety.
• A vitreous enamelled oven chamber and easy-clean door glass simplify end-of-day cleaning, supporting food safety compliance and reducing labour time.
• The over-temperature safety cut-out protects both the oven and its contents during extended continuous operation, giving operators confidence in unattended cooking cycles.
• Optional stainless steel stands (SK2731N or SK2731U) fitted with swivel castors allow the oven to be positioned or relocated flexibly within the kitchen without additional infrastructure.
• Single-phase electrical connection allows straightforward installation in kitchens that do not have three-phase power available.

Key Features

• Accommodates three 460 x 660mm full-size sheet pans per load
• Also accepts three 600 x 400mm gastronorm-style trays with 85mm spacing between runner positions
• Bi-directional reversing fan system for efficient, uniform heat circulation
• 4.5kW heating element with 4.7kW total power draw
• Mechanical thermostat adjustable from 50°C to 260°C
• Manual 60-minute timer with time-up indicator and audible buzzer
• Power ON and Heating ON control panel indicator lights
• Over-temperature safety cut-out
• Dual halogen oven lamps for interior visibility
• Vitreous enamelled oven chamber for easy cleaning and durability
• Double-glazed easy-clean door glass system
• Plug-in perimeter oven door seal fitted to the drop-down door
• Vented drop-down door with stay-cool handle and heavy-duty hinges
• 3 oven wire racks supplied
• 304 stainless steel exterior construction
• Compact 810mm width for space-efficient installation
• Single-phase connection: 230–240V, 50Hz, 1P+N+E, 19.6A, no cordset supplied
• Oven internal dimensions: W695mm x D470mm x H305mm
• External dimensions (including 76mm feet): W810mm x D762mm x H607mm
• Country of manufacture: New Zealand
• Optional stand SK2731N suits 600 x 400mm trays and 1/1 GN pans; optional stand SK2731U suits 660 x 460mm pans; both feature 4 x 76mm swivel castors with dual swivel and wheel lock on front castors, 6-position tray runners and a welded square-tube frame

Specifications

• Width (mm): 810
• Depth (mm): 762
• Height (mm): 607
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 79.5
• Packed Width (mm): 870.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 755.0
• Shipping Cubic: 0.548470000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Rating: 19.6A No cordset supplied|1P+N+E|230-240V|4.7kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 19.6A (No Lead Supplied)
• Pan Count: 3
