Overview

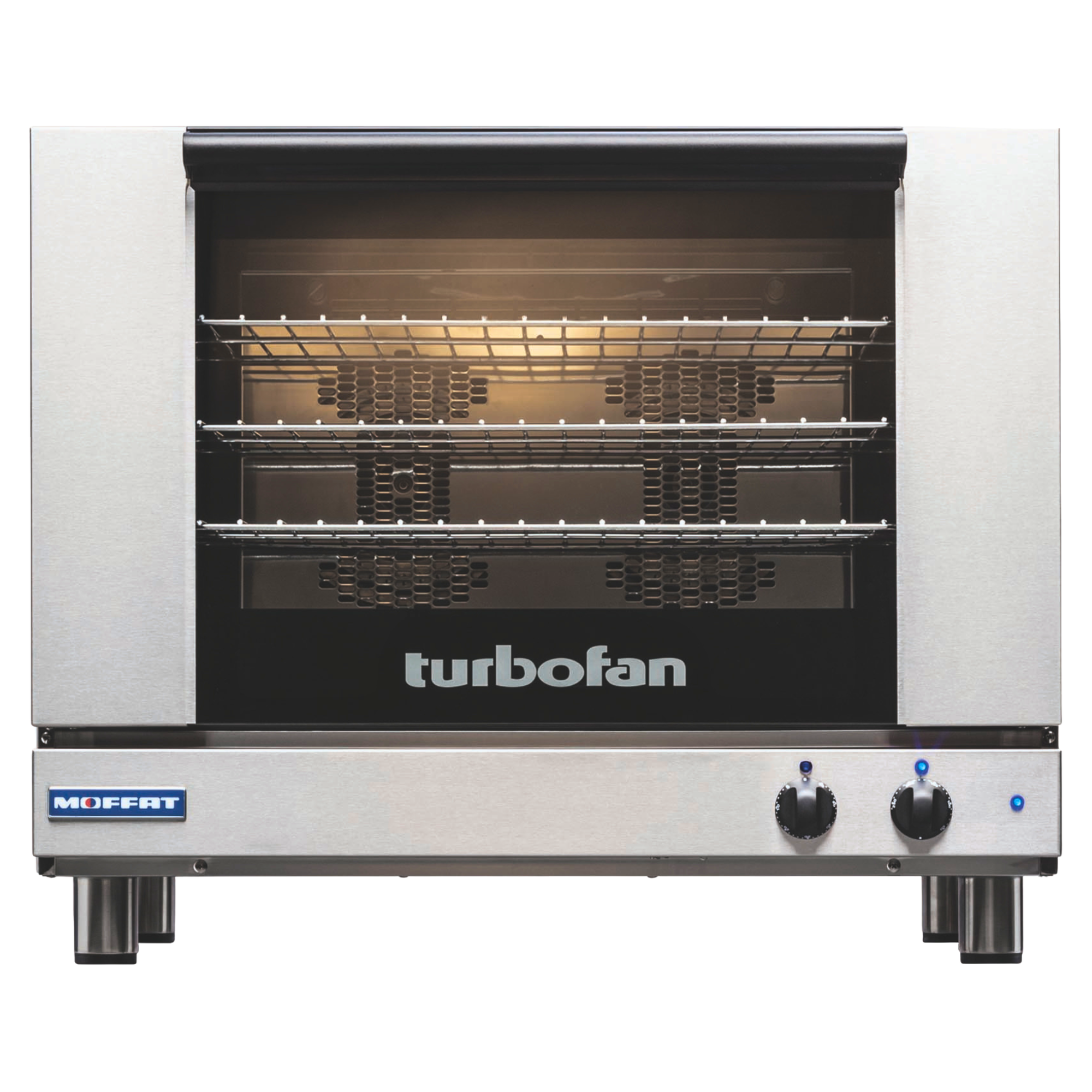

Turbofan E28M4 Full Size Manual Electric Convection Oven

The Turbofan E28M4 is a manual electric convection oven and the highest-capacity model in the Turbofan 20 Series, holding four full size sheet pans within a compact 810mm wide footprint. Built in New Zealand from 304 stainless steel, it is engineered for demanding, high-volume commercial environments including bakeries, cafes, restaurants and catering kitchens. Dual heating elements deliver a combined 5.8kW of power, while twin bi-directional reversing fans ensure heat is distributed evenly across all four tray positions for consistent results throughout the cavity.

Operation is kept deliberately simple, with a mechanical thermostat ranging from 50 to 260°C, a manual 60-minute timer fitted with an audible buzzer, and clearly labelled control panel indicators for power on, heating on and time-up. Safety and hygiene provisions include an over-temperature cut-out, a vitreous enamel oven chamber, a door seal that slots in without tools, a vented drop-down door with a cool-to-the-touch handle and robust hinges, and an easy-clean door glass system. Dual halogen oven lamps illuminate the interior, and four wire racks are included ready for immediate use.

Key Benefits

• Twin bi-directional reversing fans promote uniform airflow across every tray position, reducing hot spots and delivering even bake results batch after batch.
• Four full size tray positions with 80mm rack spacing provide generous batch cooking capacity while keeping the overall width to just 810mm, making it practical for kitchens with limited bench or floor space.
• A mechanical thermostat and 60-minute timer with audible alarm keep operation simple and reliable, reducing training time and minimising the chance of operator error during busy service.
• The over-temperature safety cut-out protects both product and equipment, giving operators confidence when the oven is running unattended for extended periods.
• A vitreous enamel oven chamber resists staining and wipes clean with minimal effort, helping maintain hygiene standards between services without time-consuming scrubbing.
• The vented drop-down door features a stay-cool handle and robust hinges, allowing safe one-handed tray access and reducing burn risk when loading and unloading at speed.
• Dual halogen oven lamps let staff visually monitor cooking progress through the door glass without opening the oven and disrupting heat, protecting product quality.
• Antiskid adjustable stainless steel feet and an optional compatible stainless steel stand with castors offer flexible installation options to suit different kitchen layouts and workflows.
• 100% recyclable packaging and single phase electrical connection simplify delivery, site installation and setup.

Key Features

• Largest capacity model in the Turbofan 20 Series
• 4 x 460mm x 660mm (18" x 26") full size sheet pan capacity
• Accommodates 4 x 600mm x 400mm trays with 80mm spacing between each rack position
• Twin bi-directional reversing fans for even heat distribution
• Twin 180mm diameter full stainless steel oven fans
• Dual heating elements, 5.8kW total power output
• Mechanical thermostat with temperature range 50°C to 260°C
• Manual 60-minute timer with time-up indicator and audible buzzer
• Control panel indicators: Power ON, Heating ON and Time-Up
• Over-temperature safety cut-out
• Dual halogen oven lamps for interior visibility
• Vitreous enamel oven chamber for easy cleaning and hygiene
• Tool-free plug-in door seal that fits continuously around the oven opening
• Vented drop-down door with a cool-to-the-touch handle, robust hinges and an easy-clean glass system
• 4 oven wire racks supplied
• Anti-skid adjustable stainless steel feet, 50mm diameter x 76mm high
• Compact 810mm wide external footprint
• Internal cavity dimensions: 695mm W x 470mm D x 355mm H
• 304 stainless steel exterior construction
• Single phase electrical connection: 230-240V, 25A, 1P+N+E, 50/60Hz (no lead supplied)
• Compatible optional stainless steel stand with castors available

Specifications

• Width (mm): 810
• Depth (mm): 762
• Height (mm): 662
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 54.6
• Packed Width (mm): 870.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 755.0
• Shipping Cubic: 0.548470000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Rating: 1P+N+E|230-240V|25A No cordset supplied|5.8kW|50/60Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 25A, (No Lead Supplied)
• Pan Count: 4
