Overview

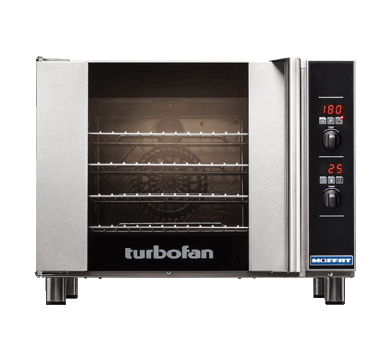

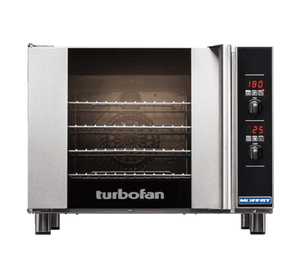

Turbofan E31D4 Full Size Tray Digital Electric Convection Oven

The Turbofan E31D4 is a full size tray digital electric convection oven built in New Zealand from 304 stainless steel, designed to meet the demands of busy commercial kitchens, bakeries, cafes and catering operations. With a compact 810mm wide by 616mm deep footprint and a 15A plug-in cordset, it installs quickly on a standard single-phase supply without specialist electrical work, making it equally practical as a primary oven in smaller venues or a high-output feature oven in larger operations.

The E31D4 combines a single-direction low-velocity fan with 2.8kW bake elements and 2kW grill elements, delivering even, consistent heat across four GN 1/1 pans at 80mm tray spacing. User-friendly electronic controls feature large 20mm high digital displays for time and temperature, an electronic thermostat, a versatile countdown or count-up timer, and memory for up to 20 programmable recipes, streamlining repetitive cooking tasks and supporting menu consistency across shifts.

Key Benefits

• Fan-forced convection heat distributes evenly across all four tray positions, eliminating hot spots and producing consistent baking, roasting and grilling results batch after batch.
• Dedicated grill mode with 2kW elements expands cooking versatility, allowing grilling, baking, roasting and holding all from a single compact unit.
• Up to 20 programmable recipes reduce reliance on operator memory, helping kitchen teams replicate results accurately and speeding up service during peak periods.
• The 15A plug-in cordset means no hardwiring is required, simplifying installation, relocating the oven within the kitchen, and reducing setup costs.
• A compact 616mm depth keeps bench space demands low, making the E31D4 practical even in tight galley-style kitchens.
• Vitreous enamelled oven liners resist grease and food residue, making interior cleaning faster and reducing downtime between service periods.
• The safe-touch vented side-hinged door with stay-cool handle protects staff from burns, and the field-reversible hinging allows left or right-hand opening to suit the kitchen layout.
• Four oven wire racks are included in the box, so the oven is ready for immediate service without additional accessory purchases.
• 100% recyclable packaging supports sustainable procurement practices for operations with environmental commitments.

Key Features

• Capacity for 4 x GN 1/1 gastronorm pans with 80mm tray spacing
• Internal oven cavity dimensions: 565mm wide x 395mm deep x 425mm high
• Oven rack dimensions: 540mm wide x 370mm deep
• 2.8kW heating elements in bake mode; 2kW grill elements for dedicated grill mode
• Single-direction low-velocity fan for gentle, even heat distribution
• Electronic thermostat for precise temperature control
• Large 20mm high digital displays showing time and temperature simultaneously
• Electronic timer with selectable countdown or time count-up modes
• Programmable memory storing up to 20 cooking programs
• 15A plug-in cordset fitted; single phase 230-240V, 50Hz, 1P+N+E, 3.1kW, 12.9A
• Vitreous enamelled oven chamber for easy cleaning
• Plug-in continuous oven door seal for consistent cavity performance
• Safe-touch vented side-hinged door with stay-cool handle
• Field-reversible door hinging for left or right-hand opening
• Halogen oven lamp for clear interior visibility during cooking
• Anti-skid adjustable stainless steel feet: 50mm diameter, 76mm high
• External dimensions including feet: 810mm wide x 616mm deep x 625mm high
• Constructed from 304 stainless steel; manufactured in New Zealand
• 4 oven wire racks supplied as standard
• Compatible with optional Turbofan SK2731N or SK2731U stainless steel stands (suits Turbofan E27, E28 and E31 series ovens)
• 100% recyclable packaging
• 24-month warranty

Specifications

• Width (mm): 810
• Depth (mm): 616
• Height (mm): 625
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 68.2
• Packed Width (mm): 740.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 720.0
• Shipping Cubic: 0.444888000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 24
• Fuel Type: Electric
• Power Rating: 12.9A|15A cordset fitted|1P+N+E|230-240V|3.1kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 50Hz, 1P+N+E, 3.1kW, 12.9A
• Pan Count: 4
