Overview

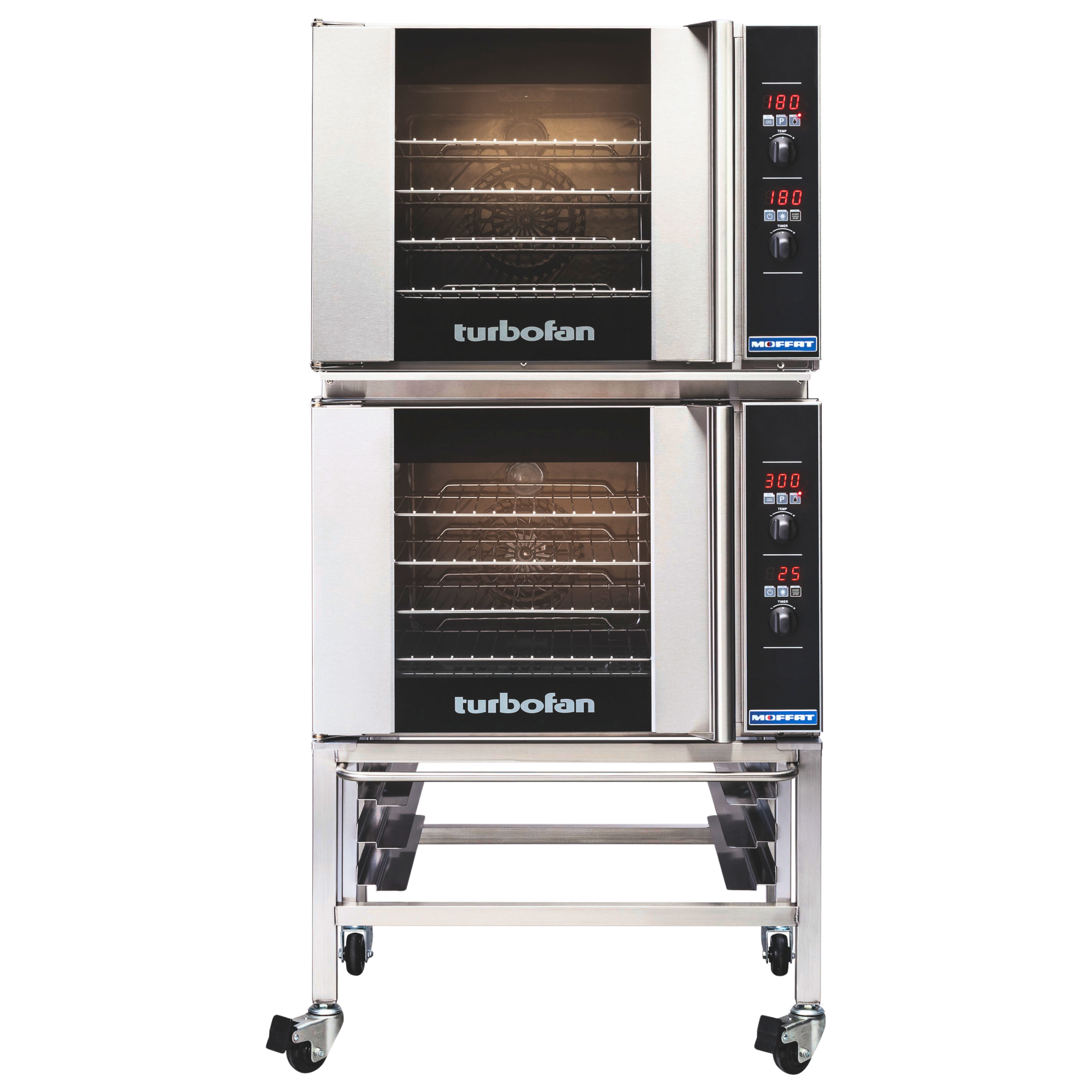

Turbofan E31D4/2 Double Stacked Digital Electric Convection Oven Set

The Turbofan E31D4/2 pairs two E31D4 digitally controlled electric convection ovens in a double-stacked arrangement mounted on a full stainless steel base stand, delivering a combined capacity of eight GN 1/1 pans across both cavities. Manufactured in New Zealand from 304 stainless steel, the unit is built for bakeries, cafes and commercial kitchens that require high-output, consistent cooking results within a compact 810mm wide by 666mm deep footprint.

Each independent oven cavity is fitted with a vitreous enamelled chamber, a single-directional low-velocity fan for even heat distribution, and separate 2.8kW bake and 2.0kW grill elements to handle baking, roasting, grilling and holding in a single unit. Large 20mm high digital displays, an electronic thermostat, countdown and time count timer modes, and a programmable memory of up to 20 recipes make repeatable results achievable across any kitchen team or shift.

Key Benefits

• The double-stacked layout maximises cooking output without expanding the kitchen footprint, making the unit well suited to medium and high-volume service environments.
• A combined total of eight full-size GN 1/1 tray positions across both cavities enables large-batch cooking of baked goods, roasts or reheated items at the same time.
• Programmable memory for up to 20 cooking programs removes guesswork and maintains consistent results regardless of which operator is running the oven.
• The electronic thermostat paired with a single-directional low-velocity fan ensures reliable, uniform heat throughout the cavity on every tray position.
• A dedicated 2.0kW grill mode adds cooking versatility so the same unit can grill, bake, roast and hold without requiring additional equipment.
• The Safe-Touch vented side-hinged door with a stay-cool handle and plug-in continuous door seal keeps operators safe and retains heat effectively throughout service.
• Field-convertible left or right hand door hinging, along with the option of adjustable feet or castor models, allows the unit to adapt to a wide variety of kitchen configurations.
• The vitreous enamelled oven chamber is straightforward to clean and supports hygiene standards under demanding daily use.
• Each oven comes fitted with a single-phase 15A plug-in cordset, allowing straightforward installation without the need for specialist electrical work.

Key Features

• Two independent E31D4 ovens double stacked on a full stainless steel base stand
• Each oven holds 4 x GN 1/1 (Gastronorm full-size) pans, totalling 8 tray positions across the stacked configuration
• 80mm tray spacing per cavity accommodates a wide range of cookware and product heights
• 304 stainless steel exterior construction throughout
• Vitreous enamelled oven chamber for easy cleaning and long-term durability
• Single-directional low-velocity fan for even, fan-forced convection heat
• 2.8kW heating elements in bake mode
• 2.0kW grill elements for dedicated grill mode
• Digital time and temperature controls with large 20mm high easy-view displays
• Electronic thermostat for precise and reliable temperature management
• Electronic timer with both countdown and time count modes
• Programmable memory for up to 20 cooking programs
• Safe-Touch vented side-hinged door, standard left-hand hinge
• Field-convertible door hinge for right-hand configuration
• Stay-cool door handle for operator safety
• Plug-in continuous oven door seal for consistent heat retention
• Halogen oven lamp for clear visibility inside the cavity
• 4 oven wire racks supplied per oven (8 racks total)
• Guard rail fitted to the bottom oven for added safety
• Adjustable anti-skid stainless steel feet (50mm diameter, 76mm high) supplied as standard; castor models also available
• Each oven fitted with a 15A plug-in cordset rated at single phase, 230-240V, 50Hz, 1P+N+E, 3.1kW, 12.9A
• Compact dimensions of 810mm wide x 666mm deep suit space-constrained commercial kitchens
• Assembly required for double stacking configuration
• 100% recyclable packaging
• Country of origin: New Zealand

Specifications

• Width (mm): 810
• Depth (mm): 666
• Height (mm): 1611
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 68.2
• Packed Width (mm): 740.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 720.0
• Shipping Cubic: 0.444888000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12.9A|15A cordset fitted|1P+N+E|230-240V|3.1kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
