Overview

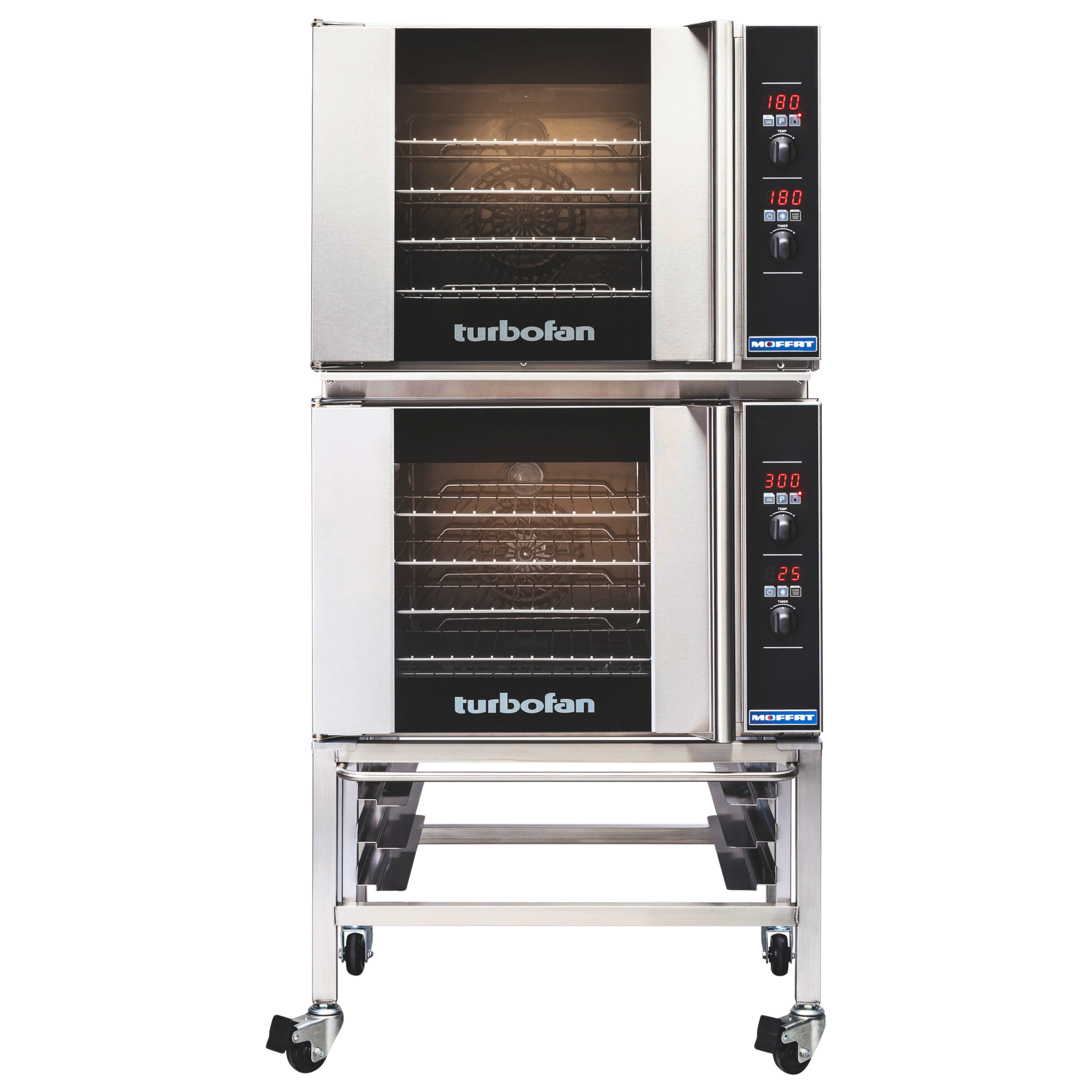

Turbofan E31D4/2C Dual Cavity Commercial Convection Oven Set with Mobile Stand

The Turbofan E31D4/2C pairs two independent E31D4 fan-forced electric convection ovens, mounted one above the other on a mobile castor base stand, to deliver a combined capacity of eight GN 1/1 trays across both cavities. Built in New Zealand from 304 stainless steel, this double-stacked unit suits a smaller venue as its main oven or functions as a high-throughput workhorse in a larger commercial kitchen, covering baking, roasting, grilling and holding with consistently even results.

Each cavity holds four GN 1/1 pans at 80mm spacing and is managed through a large 20mm high digital display paired with an electronic timer that runs in both countdown and count-up modes, along with programmable memory for up to 20 cooking programs. The 810mm wide by 666mm deep footprint, a 15A plug-in cordset per oven, a Safe-Touch vented door with field-reversible hinging, and a vitreous enamelled oven chamber combine to make the E31D4/2C a practical, low-maintenance solution for busy commercial kitchens.

Key Benefits

• Double-stacked configuration doubles cooking output without increasing the kitchen footprint, making it ideal for bakeries, restaurants and catering operations.
• Eight-tray total capacity across two cavities means large volumes of product can be cooked simultaneously, reducing service times.
• Programmable memory for up to 20 cooking programs enables consistent, repeatable results across shifts and staff changes.
• Fan-forced convection circulates heat evenly throughout each cavity, eliminating hot spots and delivering uniform browning on every tray.
• A dedicated grill mode with 2.0kW grill elements alongside a 2.8kW bake mode gives operators flexibility to grill, bake, roast or hold within the same unit.
• The castor base stand provides mobility so the unit can be repositioned easily to suit changing kitchen layouts or deep-cleaning requirements.
• Safe-Touch vented side-hinged doors with a stay-cool handle reduce the risk of burns, while the field-reversible left or right hinge suits any kitchen configuration.
• Vitreous enamelled oven chamber and a plug-in continuous door seal simplify daily cleaning and help maintain a hygienic cooking environment.
• Each oven connects via a single-phase 15A plug-in cordset, removing the need for hard wiring and allowing fast installation and straightforward relocation.

Key Features

• Two independent full-size tray convection oven cavities, double stacked on a single stand
• Each cavity accommodates 4 x GN 1/1 (full-size) pans, giving 8 trays total capacity across both ovens
• 80mm tray spacing per cavity
• 4 oven wire racks supplied per oven (8 racks total)
• Single directional low-velocity fan for even, gentle convection
• 2.8kW heating elements in bake mode per oven
• 2.0kW grill elements with dedicated grill mode per oven
• Large 20mm high digital display showing time and temperature
• Electronic timer with both countdown and time count (count-up) modes
• Programmable memory for up to 20 cooking programs
• Electronic thermostat for reliable, accurate temperature control
• Safe-Touch vented side-hinged door, standard left-hand hinge, field convertible to right-hand hinge
• Stay-cool door handle
• Plug-in continuous oven door seal for a reliable cavity seal and easy replacement
• Vitreous enamelled oven chamber for easy cleaning
• Halogen oven lamp for clear visibility inside the cavity
• Full stainless steel castor base stand for mobility and stability
• Guard rail on stand to protect the bottom oven
• Each oven fitted with a 15A plug-in cordset rated at single phase, 230-240V, 50Hz, with a 1P+N+E configuration, 3.1kW total draw and 12.9A running current
• Assembly required for double stacking
• Compact 810mm width x 666mm depth footprint
• Constructed from 304 stainless steel
• Manufactured in New Zealand
• 100% recyclable packaging

Specifications

• Width (mm): 810
• Depth (mm): 666
• Height (mm): 1693
• Weight (kg): 999.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 68.2
• Packed Width (mm): 740.0
• Packed Height (mm): 835.0
• Packed Depth (mm): 720.0
• Shipping Cubic: 0.444888000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 12.9A|15A cordset fitted|1P+N+E|230-240V|3.1kW|50Hz
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
