Overview

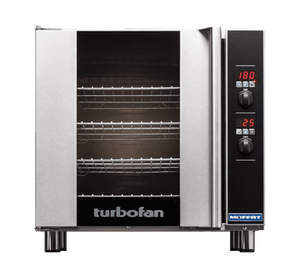

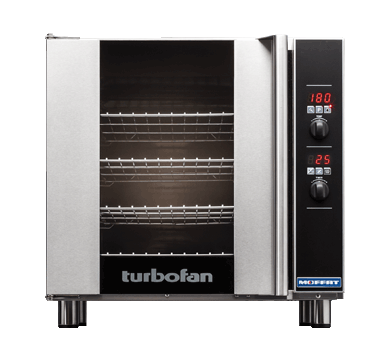

Turbofan E32D4 Full Size Tray Digital Electric Convection Oven

The Turbofan E32D4 is a full size tray digital electric convection oven engineered for medium to high-volume commercial kitchens, bakeries, cafés, restaurants, and catering operations. Accommodating four 460 x 660 mm full size sheet pans or four 600 x 400 mm trays at 110 mm spacing, it delivers consistent, fan-forced results across baking, roasting, cooking, and regeneration applications. Manufactured in New Zealand from 304 stainless steel, the E32D4 is built to withstand the rigours of daily professional use.

At the heart of the E32D4 is a two-speed bi-directional reversing fan system that provides precise product control: high speed drives maximum heat penetration for robust dishes, while low speed enables gentle, careful treatment of delicate baked goods. A five-level moisture injection system with a manual injection option keeps products moist and evenly finished. Digital controls offer both a manual mode and a 20-program mode with three-stage cooking sequences and stage-end alarms, allowing operators to achieve repeatable results with minimal effort. The compact 735 mm wide footprint fits comfortably into tight kitchen layouts, and the oven is designed to stack with compatible Turbofan P Series prover and holding cabinets.

Key Benefits

• Two-speed bi-directional fan delivers maximum heat penetration at high speed and delicate, even airflow at low speed, giving operators precise control over a wide variety of products
• Five-level moisture injection plus manual injection mode keeps baked and roasted products moist and evenly finished without constant manual intervention
• Twenty programmable recipes with three-stage cooking and stage-end alarms allow consistent, repeatable results and reduce reliance on operator memory during busy service
• Countdown and time count timer modes provide flexible time management to suit different workflow styles
• Thermostatic range of 50 to 260°C covers everything from gentle proving and regeneration through to high-temperature roasting and baking
• Compact 735 mm width maximises usable floor space and allows the oven to pair neatly with Turbofan P Series prover and holding cabinets for a complete production line
• Safe-touch vented side-hinged door protects staff from heat and steam while allowing straightforward tray access
• Over-temperature safety cut-out and single-phase electrical connection simplify installation and protect the unit from damage

Key Features

• Capacity for 4 x 460 mm x 660 mm full size sheet pans or 4 x 600 mm x 400 mm trays
• 110 mm tray spacing throughout the oven cavity
• Two-speed bi-directional reversing fan system for superior airflow and product control
• Moisture injection mode with 5 selectable levels plus a manual injection option
• Electronic thermostat with a temperature range of 50°C to 260°C
• Electronic timer with both countdown and time count operating modes
• Manual mode and program mode with 20 programs, each supporting 3-stage cooking sequences and stage-end alarms
• Large 20 mm high LED display for clear visibility in a busy kitchen environment
• Vitreous enamelled oven chamber for easy cleaning and long-term durability
• Safe-touch vented side-hinged door with field-reversible hinge option (standard left-hand hinge, convertible to right-hand)
• Over-temperature safety cut-out for added protection
• 4 oven wire racks supplied
• Plug-in continuous oven door seal
• Dual halogen lamps illuminate the oven interior
• 304 stainless steel exterior construction
• Compact 735 mm width designed for space-efficient kitchen layouts
• Compatible with Turbofan P Series prover and holding cabinets for stacked production configurations
• 100% recyclable packaging
• Single-phase electrical connection (230–240 V, 27 A, no lead supplied)
• Manufactured in New Zealand

Specifications

• Width (mm): 735
• Depth (mm): 810
• Height (mm): 730
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 105
• Packed Width (mm): 760.0
• Packed Height (mm): 925.0
• Packed Depth (mm): 815.0
• Shipping Cubic: 0.572945000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 1P+N+E|230-240V|27A|50Hz|6.5kW|No cordset supplied
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 27A, (No Lead Supplied)
• Pan Count: 4
