Overview

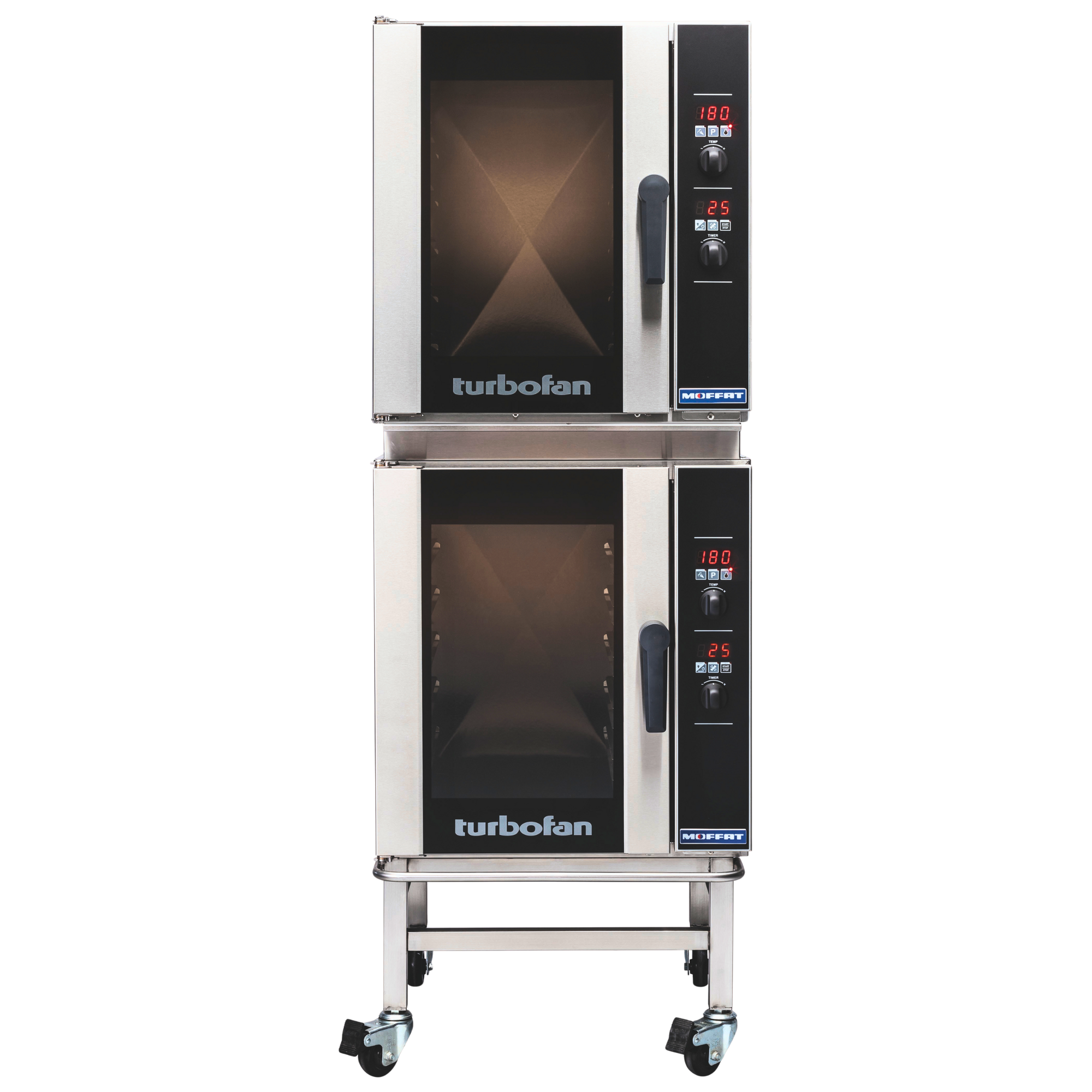

Turbofan E33D5/2C Full Size Gastronorm Convection Oven Pair, Double Stacked on Mobile Castor Stand

The Turbofan E33D5/2C pairs two E33D5 full-size convection ovens mounted one above the other on a mobile castor stand, achieving a combined capacity of 10 x 1/1 GN trays within a compact 610mm wide footprint. Each oven holds five full-size trays at 85mm spacing, making this double-stack arrangement well suited to high-volume bakeries, restaurants, and catering operations that require serious output without sacrificing floor space.

Both ovens are built with vitreous enamel oven chambers, double-glazed doors, and 304 stainless steel exteriors for lasting durability, easy cleaning, and consistent cooking results across every service. Electronic controls with a large 20mm LED display support both manual and programmable operation, while a 2-speed bi-directional reversing fan and five-level moisture injection deliver even, repeatable cooking across all tray positions simultaneously.

Key Benefits

• Mounting two ovens in a stacked arrangement doubles total tray capacity without expanding the kitchen footprint, maximising output per square metre of floor space.
• A combined ten-tray capacity across both ovens supports high-volume batch cooking throughout demanding service periods.
• Five-level moisture injection, plus a manual injection option, keeps baked goods and roasted proteins moist and evenly finished, reducing food loss.
• The bi-directional reversing fan system promotes even airflow and consistent heat distribution across all trays at the same time.
• Up to 20 programmable cooking programs, each allowing three sequential cooking phases with an alarm at the conclusion of each phase, deliver repeatable and reliable results every service.
• An optional core probe kit enables precise internal temperature-based cooking, removing guesswork from thick or dense product loads.
• The included castor base stand adds mobility, making it straightforward to reposition the entire unit for cleaning or kitchen reconfiguration.
• A single-phase power connection simplifies installation without requiring three-phase electrical infrastructure.
• An electronic over-temperature safety cut-out provides an additional layer of protection for both product and equipment.

Key Features

• Two E33D5 full-size convection ovens mounted one above the other on a single castor base stand
• Each oven accommodates 5 x 1/1 GN Gastronorm trays (460 x 660mm), totalling 10 trays across both ovens
• 85mm tray spacing per oven for generous clearance with full-size product loads
• 2-speed bi-directional reversing fan system for even heat distribution throughout the oven chamber
• Vitreous enamel oven chamber for durability and easy cleaning
• Double-glazed oven doors for improved heat retention and energy efficiency
• Electronic controls with large 20mm high LED display showing time and temperature simultaneously
• Manual mode and program mode operation for flexible use across different menu items
• 20 programmable cooking programs, each supporting up to 3 sequential cooking stages with a stage-end alarm
• Electronic countdown timer with a range of up to 180 minutes; also supports time count mode
• Thermostat range from 50°C to 260°C to cover a wide variety of cooking applications
• Moisture injection mode with 5 levels plus manual injection for precise humidity control
• Core probe program cooking capability (optional core probe kit required)
• Electronic over-temperature safety cut-out for equipment and food protection
• 5.8kW heating power per oven
• 304 stainless steel exterior construction for hygiene and longevity
• Compact 610mm wide footprint suits kitchens with limited bench or floor space
• Single-phase 230-240V, 25A electrical connection (no cordset supplied)
• Assembly required for double stacking configuration
• Castor base stand included for mobility and easy repositioning
• Manufactured in New Zealand

Specifications

• Width (mm): 610
• Depth (mm): 730
• Height (mm): 939
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 1P+N+E|230-240V|25A No cordset supplied|50Hz|6.0kW
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
