Overview

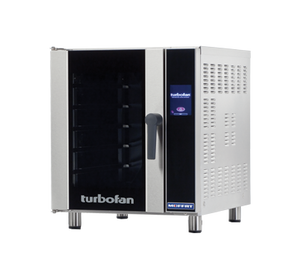

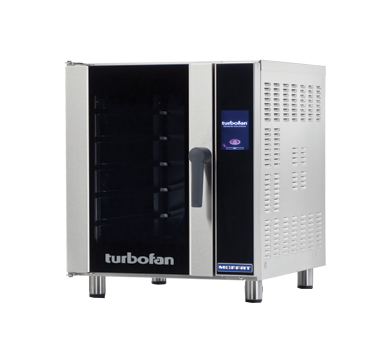

Turbofan E33T5 Full Size Tray Touch Screen Electric Convection Oven

The Turbofan E33T5 is a single-phase electric convection oven engineered for demanding commercial kitchens, bakeries, cafes and catering operations. Built in New Zealand from 304 stainless steel, it fits a compact 610mm wide footprint while delivering a full five 1/1 GN tray capacity with 85mm tray spacing, making it an efficient, high-output solution where bench or floor space is at a premium.

At the heart of the E33T5 is a 2-speed bi-directional reversing fan system paired with a five-level moisture injection mode, ensuring even heat distribution and precise humidity control across every tray. A touch screen interface with an icon-driven program menu supports up to five programmable cooking stages, giving kitchen teams repeatable results whether they are running manual or programmed modes. A USB port allows programs and icons to be updated quickly, keeping the oven aligned with evolving menus.

Key Benefits

• Five-tray full-size capacity in a 610mm wide footprint maximises output without consuming excessive floor or bench space.
• Bi-directional reversing fan with two speed settings promotes uniform airflow across every tray, reducing hot spots and the need to rotate product.
• Five-level moisture injection lets operators dial in the right humidity for bread, pastries, roasts and more, improving crust, texture and yield.
• Up to five programmable cooking stages allow complex recipes to run automatically, supporting consistent results across different staff and busy service periods.
• USB connectivity makes it straightforward to upload new programs and custom icons, reducing retraining time when menus change.
• Thermostatic range of 50-260°C and an over-temperature safety cut-out give operators wide cooking flexibility alongside built-in protection.
• Single-phase 230-240V connection keeps installation straightforward, avoiding the cost and complexity of three-phase electrical work.
• Dual halogen oven lamps and a vitreous enamelled oven chamber make it easy to monitor cooking progress and simplify post-service cleaning.
• Adjustable anti-skid 50mm diameter stainless steel feet (76mm high) allow the oven to be levelled on uneven surfaces for stable, safe operation.

Key Features

• 5 x 1/1 GN Gastronorm tray capacity (tray size 460 x 660mm)
• 85mm tray spacing accommodates a variety of pan depths and product heights
• Compact 610mm wide external footprint
• Touch screen control panel with icon-driven program menu
• 2-speed bi-directional reversing fan system for even heat distribution
• Up to 5 programmable cooking stages per recipe
• Manual and program operating modes
• Moisture injection mode with 5 selectable levels
• Thermostatic temperature range: 50-260°C
• Over-temperature safety cut-out
• USB port for updating programs and icons
• Vitreous enamelled oven chamber for easy cleaning and durability
• Safe-touch vented side-hinged door with stay-cool door handle
• Plug-in continuous oven door seal
• Double-glazed door for improved thermal efficiency and cooler exterior surface
• Dual halogen oven lamps for clear visibility of product during cooking
• Anti-skid adjustable stainless steel feet: 50mm diameter, 76mm high
• 304 stainless steel construction throughout
• Internal oven dimensions: W330 x D570 x H515mm
• Oven rack dimensions: W330 x D530mm
• Single-phase electrical connection: 230-240V, 50Hz, 1P+N+E, 6.0kW, 25A (no lead supplied)
• 100% recyclable packaging
• Compatible with optional SK33 stainless steel stand (suits E33D and E33T series), featuring 5-position tray runners, four 76mm swivel castors with dual front wheel locks, and welded square-tube frame
• Manufactured in New Zealand

Specifications

• Width (mm): 610
• Depth (mm): 680
• Height (mm): 730
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 93
• Packed Width (mm): 655.0
• Packed Height (mm): 830.0
• Packed Depth (mm): 805.0
• Shipping Cubic: 0.437638000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Rating: 1P+N+E|230-240V|25A|50Hz|6.0kW
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
• Voltage/Phase: 230-240V, 25A, (No Lead Supplied)
• Pan Count: 5
