Overview

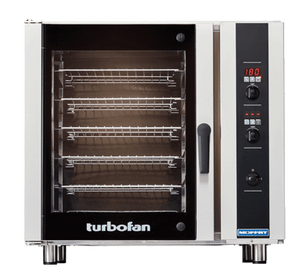

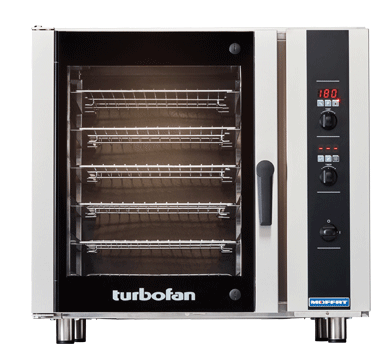

Turbofan E35D6-30 Full Size Digital Electric Convection Oven

The Turbofan E35D6-30 is a full-size, digitally controlled electric convection oven engineered for high-volume commercial kitchens including bakeries, restaurants, cafes, hotels and catering operations. Built in New Zealand from 304 stainless steel, it accommodates 6 trays in either 406 x 736 mm (16" x 29") or 457 x 762 mm (18" x 30") formats with 105 mm tray spacing, and delivers 12.5 kW of heating power through a 2-speed bi-directional reversing fan system for consistently even results across every tray.

A large 20 mm digital display provides clear access to a comprehensive control set including electronic thermostat, countdown or count-up timer, manual mode and a 30-program library supporting 3-stage cooking sequences with stage-end alarms. Five-level steam injection, an optional core probe kit and a programmable or manually operated oven vent give operators precise control over moisture and airflow, while the vitreous enamelled oven chamber, Safe-Touch vented side-hinged door and dual halogen oven lamps make day-to-day use practical and safe.

Key Benefits

• Bi-directional reversing fan at two speeds circulates heat evenly across all six trays, reducing hot spots and ensuring uniform baking and roasting results.
• Five-level steam injection plus manual steam control lets operators dial in the ideal moisture environment for bread, pastries, roasts and more.
• Thirty programmable recipes with up to 3 cooking stages per program streamline repetitive production tasks and maintain consistency across kitchen shifts.
• Optional core probe kit enables precise centre-temperature cooking, removing guesswork from thick cuts of meat and other dense products.
• Vitreous enamelled oven chamber resists staining and simplifies cleaning, reducing downtime between services.
• Safe-Touch vented side-hinged door protects staff from steam and heat during loading and unloading, supporting a safer kitchen environment.
• Dual halogen oven lamps provide clear visibility inside the chamber without opening the door, helping operators monitor progress and conserve heat.
• Anti-skid adjustable stainless steel feet allow levelling on uneven floors, and a compatible optional stainless steel stand (SK35) with castors and tray runners adds flexible placement in the kitchen.
• 100% recyclable packaging reflects a commitment to reducing environmental impact from delivery through to installation.

Key Features

• Accommodates 6 x 406 mm x 736 mm (16" x 29") trays or 6 x 457 mm x 762 mm (18" x 30") trays with 105 mm tray spacing
• 12.5 kW heating power; 400-415 V, 50 Hz, 3P+N+E, 17.4 A per phase
• 2-speed bi-directional reversing fan system for even heat distribution
• Large easy-view 20 mm high digital display
• Electronic thermostat control with temperature range 50°C to 260°C
• Electronic timer with countdown or time count modes
• Manual mode and program mode operation
• 30 programs with 3-stage cooking sequences and stage-end alarms
• Steam injection mode with 5 levels plus manual injection capability
• Time-driven steam system
• Optional core probe kit for centre-temperature program cooking
• Programmable and manual oven vent control
• Vitreous enamelled oven chamber for easy cleaning and durability
• Safe-Touch vented side-hinged door
• Field reversible door
• Dual halogen oven lamps for interior visibility
• 304 stainless steel outer construction
• Anti-skid 50 mm diameter, 76 mm high adjustable stainless steel feet
• 6 oven wire racks supplied
• 100% recyclable packaging
• Optional SK35 stainless steel stand with 6-position tray runners, 4 x 76 mm swivel castors (2 with dual swivel and wheel lock), welded 38 mm and 32 mm square tube frames, supplied CKD for on-site assembly (stand dimensions: 910 W x 770 D x 880 H mm)
• Manufactured in New Zealand

Specifications

• Width (mm): 910
• Depth (mm): 1022
• Height (mm): 1968
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 195
• Packed Width (mm): 950.0
• Packed Height (mm): 1170.0
• Packed Depth (mm): 960.0
• Shipping Cubic: 1.067040000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Power Supply: 3 Phase 400-415V
• Voltage (V): 400
