Overview

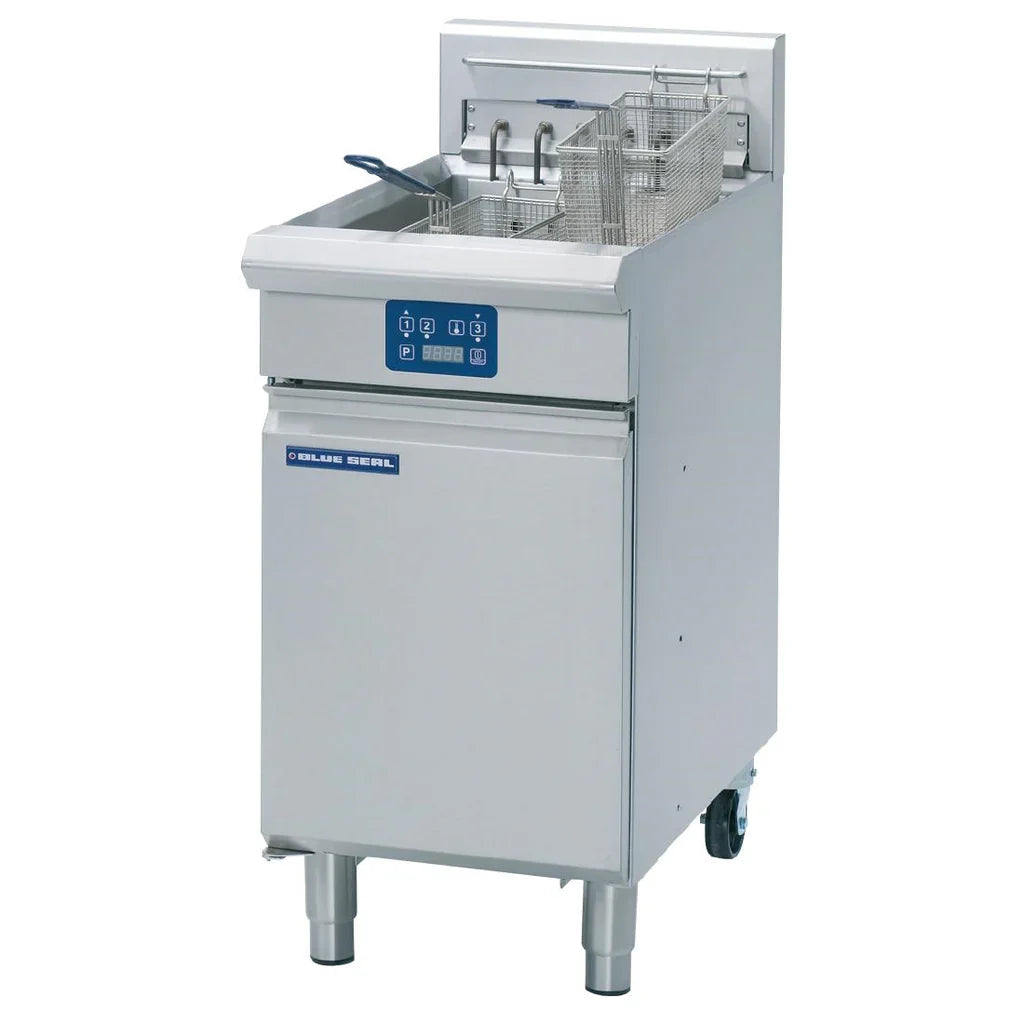

Blue Seal E43E Evolution Series 450mm Single Pan Electric Fryer

The Blue Seal E43E is a 450mm single pan electric fryer from the Evolution Series, purpose-built for high-volume commercial kitchens including cafés, restaurants, and takeaway operations. Powered by three 5.66kW stainless steel heating elements delivering a combined 17kW output, the E43E achieves a production rate of 31kg per hour with a 27-litre oil capacity, making it a serious workhorse for continuous frying service.

Designed and manufactured in New Zealand from 304 stainless steel, the E43E features digital electronic controls with a clear LCD display, a thermostat range of 88–193°C, and a cool-zone tank design that reduces carbon build-up to extend oil life and lower operating costs. The unit ships with two standard frying baskets and is engineered for straightforward cleaning, installation, and servicing in demanding kitchen environments.

Key Benefits

• A 31kg/hr production rate and rapid heat recovery keep output high during peak service, minimising wait times between batches.
• The cool-zone tank design traps food particles away from the active frying zone, slowing oil degradation and reducing the frequency and cost of oil changes.
• Digital LCD controls with programmable product timers, countdown displays, and alarms give operators precise, repeatable results across a wide menu of fried items.
• Three programmable product timers with straight or compensating temperature cook-time control allow simultaneous cooking of different menu items with consistent outcomes.
• A fail-safe over-temperature safety cut-out and an element tilt switch that cuts power when elements are lifted protect both the equipment and kitchen staff.
• The compact 450mm footprint conserves valuable bench and floor space while still delivering high-capacity frying performance.
• Modular compatibility within the Blue Seal Evolution Series allows the E43E to be paired alongside other 450mm or 600mm units to build a flexible, matched cooking suite.
• Easy-clean stainless steel construction and an open pan design simplify daily maintenance, reducing labour time between services.
• Supplied ready to use with two standard frying baskets, the unit requires no additional accessory purchases to begin operation.

Key Features

• 450mm wide single pan freestanding electric fryer
• 27-litre oil capacity
• 31kg/hr production rate
• Three 5.66kW stainless steel heating elements, 17kW total power output
• Thermostat control range 88–193°C
• Digital LCD display showing time and temperature
• Three programmable product timers with countdown display and audible alarms
• Straight or compensating temperature cook-time control modes
• Heating and basket-drop indicator displays
• Programmable melt cycles for solid-fat oils
• Fail-safe over-temperature safety cut-out
• Element tilt switch cuts heating power when elements are raised for cleaning
• Cool-zone tank design minimises carbon build-up and extends oil life
• Easy-clean stainless steel open pan construction
• 165mm stainless steel splashback
• 150mm adjustable legs
• 304 stainless steel construction throughout
• Electrical requirements: 17kW, 400–415Vac, 50/60Hz, 3P+N+E; 23.6A per phase
• Manufactured in New Zealand
• Supplied with 2 standard frying baskets (140mm W x 335mm D x 145mm H)
• Part of the Blue Seal Evolution Series, available in 450mm or 600mm single or twin pan configurations

Specifications

• Width (mm): 450
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 105
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 495.0
• Shipping Cubic: 0.540466000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 27
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Digital Electronic
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Display Type: Digital LCD
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 17kW|3P+N+E|400-415Vac|50/60Hz|L1 23.6 A|L1 23.6A|L2 23.6A
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
