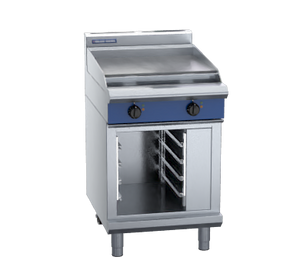

Blue Seal E514B-CB Evolution Series 600mm Electric Cooktop – Cabinet Base

The Blue Seal E514B-CB Evolution Series electric cooktop delivers reliable, high-performance griddle cooking on a sturdy cabinet base, purpose-built for demanding commercial kitchen environments. Manufactured in New Zealand from 304 stainless steel, it features a 600mm smooth mild steel griddle plate, 20mm thick, driven by two 3.4kW radiant elements with individual energy regulator controls and a thermostat range of 90–300°C per 300mm griddle section.

Designed with the working chef in mind, the E514B-CB combines practical serviceability with robust construction. Indicator lights signal power and heating status for each griddle zone, heavy-duty reinforced control knobs allow precise heat adjustment, and the unit sits on adjustable feet with two additional rollers for easy repositioning. The enclosed cabinet base provides valuable underbench storage, while optional hot plate elements extend cooking versatility to suit a wide range of menu requirements.

Key Benefits

• Two independently controlled 3.4kW radiant elements allow different griddle zones to be set to different temperatures simultaneously, improving cooking flexibility and efficiency.
• A 20mm thick smooth mild steel griddle plate retains and distributes heat evenly across the full 595 x 530mm cooking surface, reducing hot spots and producing consistent results.
• Per-zone indicator lights for power and heating status give chefs instant visual confirmation that each section has reached the correct operating temperature, minimising guesswork during service.
• Thermostat control across a 90–300°C range per 300mm section enables precise adjustment from gentle warming through to high-heat searing, supporting a broad menu.
• Adjustable feet ensure the unit can be levelled on uneven floors, while two integrated rollers make repositioning or cleaning behind the unit straightforward without requiring additional equipment.
• The enclosed cabinet base provides dedicated dry storage directly beneath the cooktop, keeping the immediate work area organised and reducing clutter in tight kitchen layouts.
• Heavy-duty reinforced control knobs with clear, durable markings withstand the rigours of continuous daily use, reducing maintenance requirements and knob replacement frequency.
• Optional hot plate elements can be specified to increase cooking surface versatility, accommodating different cooking styles without requiring a separate piece of equipment.
• Freestanding, single-phase installation (230–240V, 1P+N+E, 28.3A, 6.8kW) simplifies electrical fit-out compared with three-phase alternatives, broadening site compatibility.

Key Features

• 600mm smooth mild steel griddle plate, 20mm thick, delivering a 595 x 530mm cooking surface area
• 2 x 3.4kW radiant griddle elements with individual energy regulator controls
• Thermostat temperature control from 90–300°C per 300mm griddle section
• Indicator lights for power and heating status on each griddle control zone
• Heavy-duty reinforced control knobs with durable, non-fade markings
• Enclosed cabinet base with single hinged door for underbench storage
• 165mm splashback included
• Adjustable feet for levelling on uneven surfaces
• 2 additional rollers for easy mobility and repositioning
• 304 stainless steel construction throughout
• Optional hot plate elements available for added cooking versatility
• Freestanding installation, single-phase power supply: 230–240Vac, 1P+N+E, 50/60Hz, 28.3A, 6.8kW total load
• Dimensions: 600mm (W) x 812mm (D) x 1085mm (H) including splashback; 915mm (H) excluding splashback
• Designed for easy cleaning, installation and field servicing
• Manufactured in New Zealand
• Part of the Blue Seal Evolution Series commercial cooking range

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 595 x 530
• Number of Burners: 4
• Power Rating: 1P+N+E|230-240Vac|28.3A|50/60Hz|6.8 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
