Overview

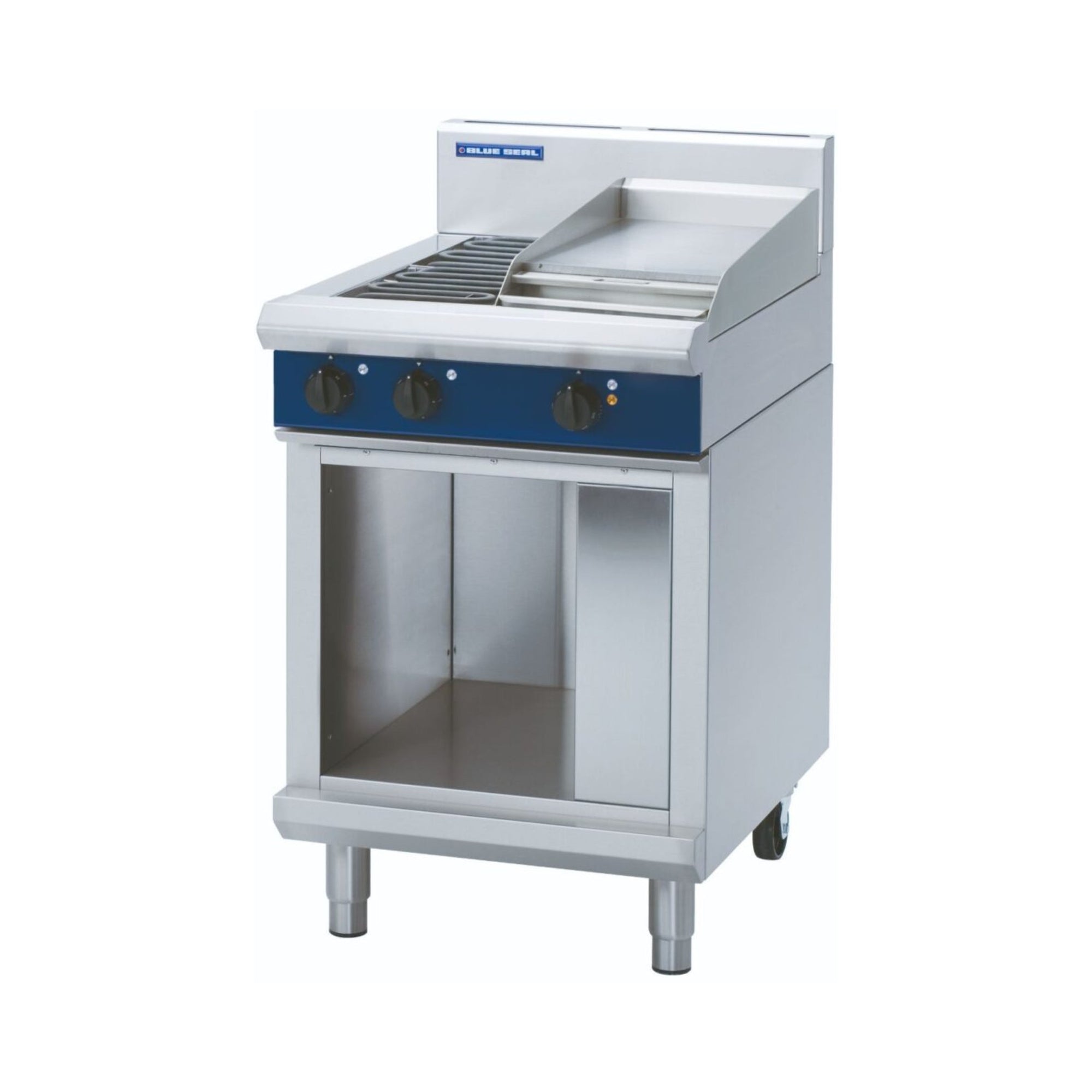

Blue Seal E514C-CB Evolution Series 600mm Electric Cooktop – Cabinet Base

The Blue Seal E514C-CB Evolution Series combines two 2.4kW radiant elements with a 3.4kW smooth mild steel griddle plate on a solid cabinet base, delivering a versatile two-in-one cooking surface within a compact 600mm footprint. Constructed from heavy-duty 304 stainless steel and built in New Zealand, this freestanding unit is engineered to withstand the daily demands of busy commercial kitchens.

The 20mm-thick smooth mild steel griddle is positioned on the right-hand side as standard, complementing the pair of radiant elements controlled by precise energy regulators. The cabinet base with a single hinged door provides useful undercounter storage, while adjustable feet and two additional rollers make levelling and repositioning straightforward. Optional hot plate elements are available for greater cooking flexibility.

Key Benefits

• Two radiant elements and a griddle plate in one unit allow simultaneous use of multiple cooking methods without requiring additional equipment.
• Energy regulator controls on the radiant elements enable fine heat adjustment from high to simmer, giving chefs precise temperature management during service.
• The 20mm-thick smooth mild steel griddle retains and distributes heat evenly across the cooking surface, suitable for proteins, vegetables and other griddle work.
• Adjustable feet combined with two additional rollers make it easy to level the unit on uneven floors and reposition it during cleaning or kitchen reconfiguration.
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves withstand continuous use and reduce the frequency of knob replacements.
• The hinged-door cabinet base offers accessible undercounter storage, keeping the work area organised and making efficient use of the unit's full footprint.
• A 165mm splashback protects the wall behind the unit, simplifying end-of-service cleaning and reducing maintenance time.
• Optional 2kW solid hot plate elements provide an alternative cooking surface configuration, allowing the unit to be adapted to changing menu requirements.

Key Features

• 2 x 2.4kW radiant elements with individual energy regulator controls
• 1 x 3.4kW griddle element with 300mm smooth mild steel griddle plate, 20mm thick
• Griddle positioned on the right-hand side (RH) as standard
• 600mm wide freestanding configuration
• Heavy-duty 304 stainless steel construction throughout
• 165mm rear splashback included
• Cabinet base with single hinged door for undercounter storage
• Adjustable feet for precise levelling on uneven surfaces
• Two additional rollers for easy mobility and repositioning
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Thermostat temperature control range: 90–300°C
• Electrical requirements: 8.2kW, 400–415V AC, 2P+N+E, 20A/phase max, 50/60Hz
• Optional 2kW solid hot plate elements available
• Cooking surface area: 295mm x 530mm
• Country of manufacture: New Zealand
• Easy-clean design for straightforward daily maintenance and servicing

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 4
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 20A/phase max.|2P+N+E|400-415Vac|50/60Hz|8.2 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
