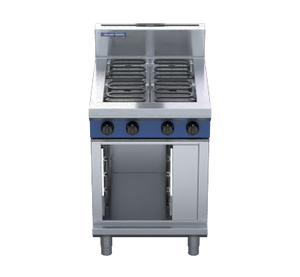

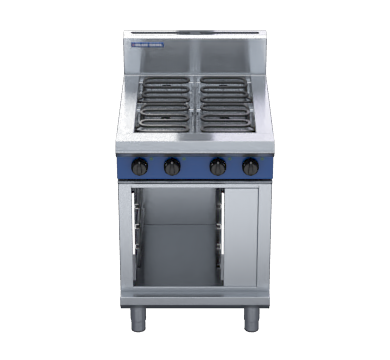

Blue Seal E514D-CB Evolution Series 600mm Electric Cooktop – Cabinet Base

The Blue Seal E514D-CB is a 600mm electric cooktop from the Evolution Series, mounted on a single-door cabinet base and built for the demands of busy commercial kitchens. Four 2.4 kW radiant elements deliver a total output of 9.6 kW, each governed by individual energy regulator controls that allow precise adjustment from a full rolling boil down to a gentle simmer. Constructed from heavy-duty 304 stainless steel and manufactured in New Zealand, the unit is engineered to withstand the rigours of daily professional use.

Practical design details make the E514D-CB straightforward to operate, maintain and move. Heavy-duty reinforced control knobs feature non-fade markings and strengthened shaft sleeves for long-term durability, while adjustable feet and two additional rollers allow easy levelling and repositioning on the kitchen floor. The cabinet base provides useful enclosed storage beneath the cooktop, and a 165 mm splashback is included as standard. Optional 2 kW solid hot plate elements are available for added cooking versatility.

Key Benefits

• Four independently controlled 2.4 kW radiant elements allow simultaneous cooking at different heat levels, improving kitchen throughput.
• Energy regulator controls on each element enable precise heat adjustment from high heat to simmering, reducing the risk of over-cooking.
• Reinforced control knobs with non-fade markings and strengthened shaft sleeves minimise wear and reduce the frequency of replacement parts.
• Adjustable feet combined with two rollers make it easy to level the unit on uneven floors and reposition it for cleaning or servicing.
• The enclosed cabinet base adds practical under-counter storage, making better use of valuable kitchen floor space.
• Heavy-duty 304 stainless steel construction resists corrosion and withstands the punishment of a high-volume commercial environment.
• Designed for easy cleaning, installation and servicing, reducing labour time and keeping the unit in optimal condition.
• Optional 2 kW solid hot plate elements provide an alternative cooking surface when a more uniform, retained-heat finish is required.

Key Features

• 4 x 2.4 kW radiant elements, totalling 9.6 kW output
• Individual energy regulator controls on each element for variable power control
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves
• Single-door hinged cabinet base providing enclosed storage
• 165 mm splashback included as standard
• Adjustable feet for stable levelling on uneven surfaces
• 2 additional rollers for straightforward repositioning and mobility
• Optional 2 kW solid hot plate elements available as an alternative to radiant elements
• Freestanding installation with manual knob temperature control
• Electrical supply: 9.6 kW, 400–415 Vac, 50/60 Hz, 2P+N+E, 20 A per phase
• Cooking surface area: 600 x 480 mm
• Overall dimensions: 600 mm (W) x 812 mm (D) x 1085 mm (H, including splashback)
• Manufactured in New Zealand

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 131
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 4
• Cooking Surface Area (mm): 600 x 480
• Power Rating: 20A/phase|2P+N+E|400-415Vac|50/60Hz|9.6 kW
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
