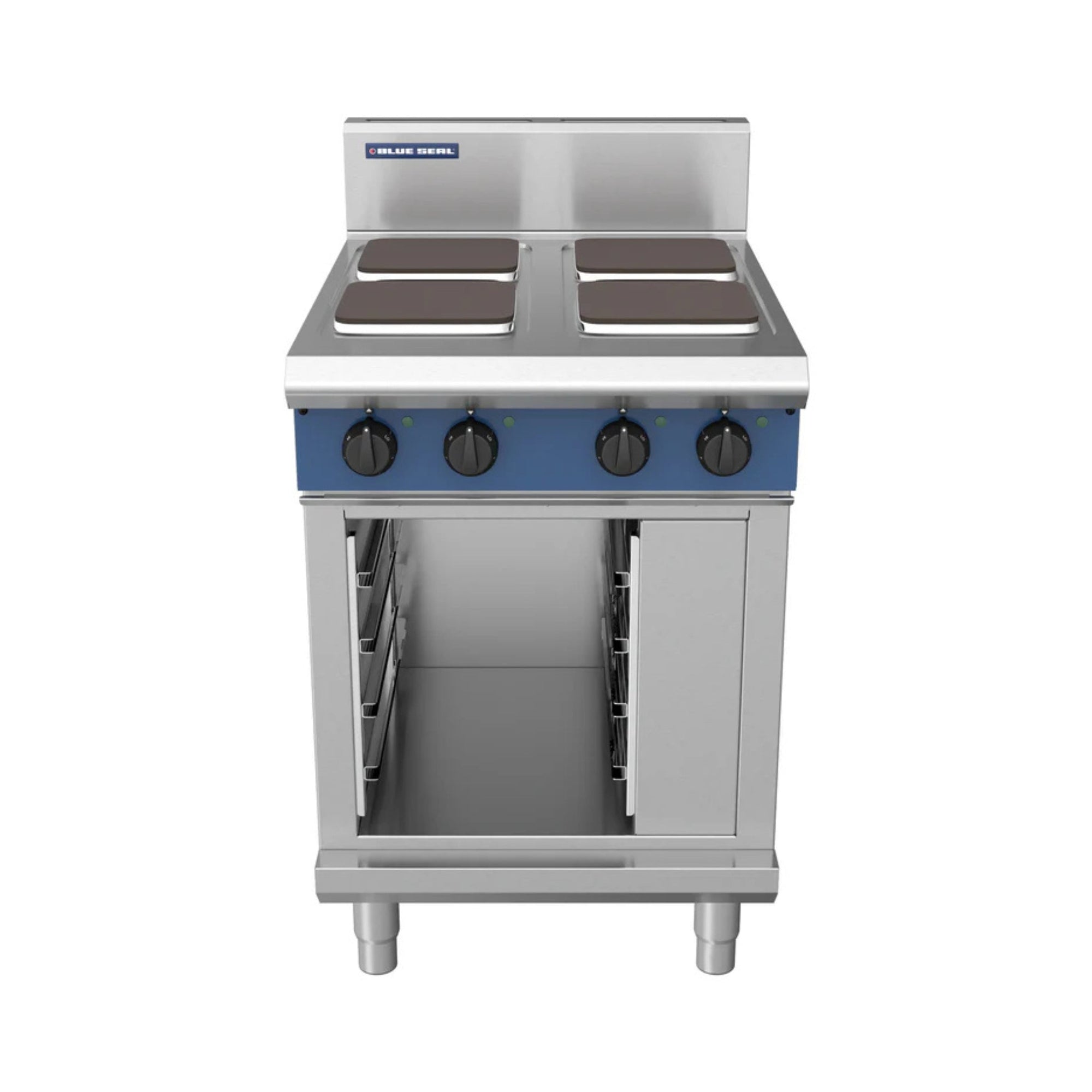

Blue Seal E514S-CB Evolution Series 600mm Electric Cooktop Sealed Hobs – Cabinet Base

The Blue Seal E514S-CB is a freestanding 600mm electric cooktop from the Evolution Series, purpose-built for demanding commercial kitchen environments. It features four cast iron hot plate elements mounted on a sturdy cabinet base, delivering a combined output of 10.4 kW across a 600 x 480mm cooking surface, with a 165mm splashback included as standard.

Manufactured in New Zealand from 304 stainless steel with an aluminised steel internal construction, the E514S-CB is designed for straightforward installation, daily cleaning, and long-term serviceability. The single hinged-door cabinet base provides practical undercounter storage, and an optional GN 1/1 four-position racking kit is available to extend functionality further.

Key Benefits

• Four independent 2.6 kW cast iron hot plate elements with thermal protection allow multiple dishes to be cooked simultaneously at different heat levels, maximising throughput during service.
• Each element's 4-position heat switch gives kitchen staff reliable, repeatable control over cooking temperatures without the guesswork associated with continuously variable analogue controls.
• A dedicated power indicator light for every element provides instant visual confirmation of which zones are active, reducing the risk of accidental burns or energy waste.
• The vitreous enamelled control panel resists heat, staining and everyday knocks, making wipe-down cleaning quick between services.
• Large, heat-resistant reinforced control knobs are easy to operate even with wet or gloved hands, reducing errors during a busy service.
• Stainless steel legs with two adjustable feet at the front and two rear rollers simplify positioning and levelling on uneven kitchen floors, as well as making the unit easy to move for cleaning or reconfiguration.
• The hinged single-door cabinet base provides accessible under-counter storage, and the optional GN 1/1 four-position racking kit converts this space for organised gastronorm storage.
• Freestanding, modular footprint integrates seamlessly into Evolution Series suites, allowing kitchens to expand their cooking line without complex installation work.

Key Features

• 4 x 2.6 kW cast iron hot plate elements, totalling 10.4 kW combined output
• Thermal protection on each cast iron element to prevent overheating damage
• Individual 4-position heat switch per cooking zone for consistent, repeatable temperature settings
• Power indicator light for each element, providing clear visual status feedback
• Vitreous enamelled control panel for durability, heat resistance and easy cleaning
• Large, heat-resistant reinforced control knobs for reliable operation in demanding conditions
• 600 x 480mm cooking surface area accommodating a range of cookware sizes
• 165mm splashback included as standard
• 304 stainless steel exterior with heavy-duty finish for professional appearance and corrosion resistance
• Aluminised steel internal construction for structural rigidity
• Single hinged-door cabinet base providing accessible under-counter storage
• Stainless steel legs with 2 adjustable feet at the front and 2 rear rollers for easy levelling and repositioning
• Freestanding, freestanding modular design compatible with the Evolution Series suite
• Optional GN 1/1 four-position racking kit available separately for organised gastronorm storage
• 400-415 V, 3P+N+E, 50/60 Hz electrical supply (also supports 230-240 V, 1P+N+E, 50/60 Hz)
• Manufactured in New Zealand
• Designed for straightforward installation, cleaning and servicing to minimise downtime

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Sealed Hob Control
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 4
• Power Rating: 10.4 kW|22A|2P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
