Overview

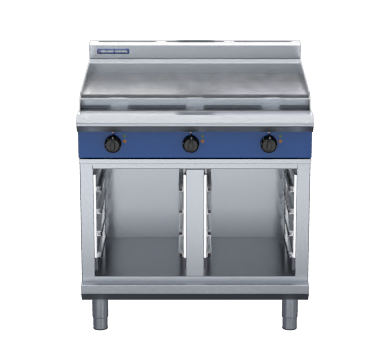

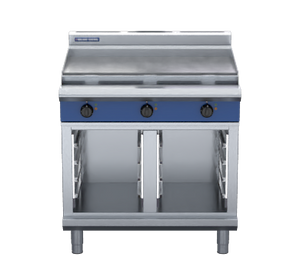

Blue Seal E516A-CB Evolution Series 900mm Electric Griddle Cooktop – Cabinet Base

The Blue Seal E516A-CB is a 900mm electric griddle cooktop from the Evolution Series, mounted on a cabinet base and built for demanding commercial kitchen environments. Three 3.4 kW radiant griddle elements provide 10.2 kW of total cooking power across a smooth mild steel griddle surface, with each 300mm section independently controlled by a thermostat ranging from 50 to 320°C, allowing different temperature zones to operate simultaneously for maximum kitchen flexibility.

Constructed in heavy-duty 304 stainless steel and manufactured in New Zealand, the E516A-CB is engineered for longevity and ease of daily operation. A 165mm splashback, single hinged cabinet door for storage, adjustable feet, and two additional rollers make this unit straightforward to position, level, and maintain. Optional GN 1/1 four-position racking kit and optional hot plate elements extend the unit's versatility to suit a wide range of catering applications.

Key Benefits

• Three independently zoned 300mm griddle sections let chefs cook at different temperatures simultaneously, reducing energy waste and improving service speed.
• Radiant elements with energy regulator controls deliver responsive, even heat across the full 892 x 530mm smooth mild steel cooking surface.
• A 20mm thick griddle plate retains heat effectively, ensuring consistent surface temperatures even under heavy continuous loading.
• Per-zone indicator lights for power and heating provide clear, at-a-glance status monitoring for each griddle section during service.
• Adjustable feet combined with two additional rollers make levelling and repositioning the unit quick and straightforward, even in tight kitchen layouts.
• The cabinet base provides enclosed storage beneath the cooktop, maximising use of the available footprint in a compact freestanding unit.
• Heavy-duty reinforced control knobs with clear, non-fade markings allow precise heat adjustment across the full temperature range without the need for frequent replacement.
• Easy-access design supports fast cleaning, straightforward installation, and simple servicing to minimise kitchen downtime.
• Optional hot plate elements and a GN 1/1 four-position racking kit allow the unit to be configured for additional cooking styles and storage needs.

Key Features

• 900mm smooth mild steel griddle surface on a freestanding cabinet base
• 3 x 3.4 kW radiant griddle elements totalling 10.2 kW cooking power
• Independent thermostat control per 300mm griddle section, adjustable from 50 to 320°C
• Indicator lights for both power and heating status on each griddle control zone
• 20mm thick smooth mild steel griddle plate for superior heat retention
• Cooking surface area: 892 x 530mm
• Radiant elements with energy regulator controls for precise temperature management
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• 165mm rear splashback included
• Single hinged door cabinet base for undercounter storage
• Adjustable feet for levelling on uneven floors
• Two additional rollers for ease of repositioning
• Optional GN 1/1 four-position racking kit available
• Optional hot plate elements available for added cooking versatility
• Freestanding installation, 3P+N+E, 400-415 Vac, 50/60 Hz, 15A per phase maximum
• Manufactured in New Zealand
• Easy to clean, install, and service

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 10.2 kW|15A/phase max|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
