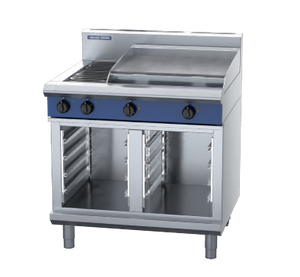

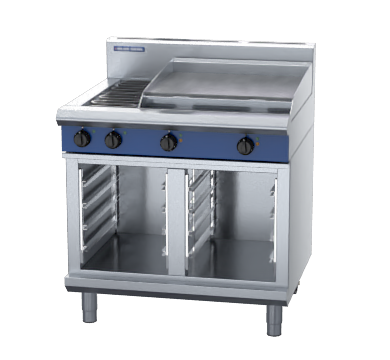

Blue Seal E516B-CB Evolution Series 900mm Electric Cooktop – Cabinet Base

The Blue Seal E516B-CB Evolution Series 900mm Electric Cooktop on Cabinet Base combines two 2.4kW radiant elements with a 600mm smooth mild steel griddle plate powered by two 3.4kW elements, delivering a total of 11.6kW across a generous 595 x 530mm cooking surface. Built in New Zealand from heavy-duty 304 stainless steel, it is engineered to handle the relentless demands of high-volume commercial kitchens with consistent, reliable performance.

The griddle is positioned on the right-hand side as standard, while the radiant elements feature energy regulator controls for precise heat management from 90°C to 300°C. A single-door cabinet base provides convenient undercounter storage, and optional accessories including a GN 1/1 four-position racking kit and hot plate elements allow the unit to be configured for a wide variety of cooking tasks.

Key Benefits

• Dual cooking zones – radiant elements and a 600mm griddle on the same unit – allow chefs to run multiple cooking methods simultaneously, reducing the need for additional equipment.
• Energy regulator controls on the radiant elements enable fine-tuned heat adjustments from a gentle simmer right through to high heat, giving precise control over delicate and robust dishes alike.
• A 20mm thick smooth mild steel griddle plate retains and distributes heat evenly, producing consistent results across the entire cooking surface.
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves stand up to daily punishment and eliminate the need for frequent knob replacement.
• Adjustable feet keep the unit level on uneven floors, while two additional rollers make repositioning straightforward during cleaning or kitchen reconfiguration.
• The single-door cabinet base offers practical undercounter storage for cookware, trays, or supplies, maximising the use of kitchen floor space.
• A 165mm splashback protects walls and simplifies cleaning, while the smooth stainless steel surfaces throughout are easy to wipe down and maintain.
• Optional GN 1/1 four-position racking kit and optional hot plate elements provide flexibility to expand the unit's cooking capability as menu requirements change.

Key Features

• 2 x 2.4kW radiant elements with individual energy regulator controls, thermostat range 90–300°C
• 2 x 3.4kW griddle elements powering a 600mm smooth mild steel griddle plate, 20mm thick
• Griddle positioned on the right-hand side as standard
• Total power output: 11.6kW | 3P+N+E | 400–415Vac | 50/60Hz | 20A/phase max
• Cooking surface area: 595 x 530mm
• Heavy-duty 304 stainless steel construction throughout
• Single-door hinged cabinet base for undercounter storage
• 165mm splashback included
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• Adjustable feet for levelling on uneven surfaces
• 2 additional rollers for ease of mobility and repositioning
• Optional GN 1/1 4-position racking kit available
• Optional hot plate (solid plate) elements available as an alternative to radiant elements
• Freestanding, free-standing installation type
• Dimensions: 900mm (W) x 812mm (D) x 1085mm (H) including splashback
• Country of origin: New Zealand
• Designed for straightforward cleaning, installation, and servicing

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 6
• Cooking Surface Area (mm): 595 x 530
• Power Rating: 11.6 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
