Overview

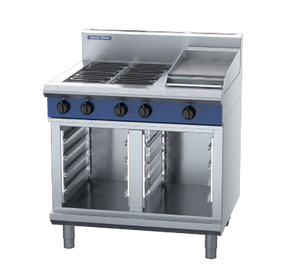

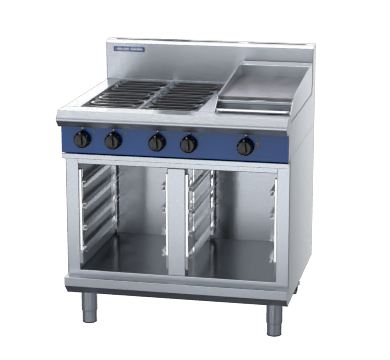

Blue Seal E516C-CB Evolution Series 900mm Electric Cooktop – Cabinet Base

The Blue Seal E516C-CB is a 900mm wide freestanding electric cooktop from the Evolution Series, combining four 2.4kW radiant elements with a 300mm right-hand griddle on a cabinet base. Built in New Zealand from 304 stainless steel, it delivers 13kW of total cooking power across a versatile cooking surface suited to high-volume commercial kitchen environments.

Designed for ease of use and long service life, the E516C-CB features heavy-duty reinforced control knobs with clear, non-fade markings and reinforced shaft sleeves to minimise wear, along with adjustable feet and two additional rollers for straightforward positioning. An optional GN 1/1 four-position racking kit and optional hotplate elements provide added flexibility to suit a range of menu requirements.

Key Benefits

• Four independent radiant elements with energy regulator controls allow precise heat management across the full spectrum from simmer to high, supporting simultaneous cooking of multiple dishes.
• The integrated 300mm right-hand griddle with a dedicated 3.4kW element and 50–320°C thermostat delivers consistent grilling and searing performance alongside the radiant cooking zones.
• Reinforced control knobs with non-fade markings and reinforced shaft sleeves reduce the need for frequent replacements, lowering maintenance costs in demanding kitchen conditions.
• Adjustable feet combined with two additional rollers make levelling and repositioning straightforward, reducing installation time and allowing easy access for cleaning and servicing.
• The smooth mild steel griddle surface and accessible component layout simplify daily cleaning routines and routine servicing, minimising kitchen downtime.
• A 165mm splashback is included as standard, helping to protect surrounding surfaces and keep the cooking station tidy during busy service periods.
• The cabinet base with a single hinged door provides useful enclosed storage directly beneath the cooktop, making efficient use of floor space in the kitchen.
• Optional GN 1/1 four-position racking kit and optional solid hotplate elements allow the unit to be configured to match specific operational needs without replacing the entire unit.

Key Features

• 4 x 2.4kW radiant elements with individual energy regulator controls
• 1 x 3.4kW griddle element with 50–320°C thermostat control
• 300mm smooth mild steel griddle plate, 20mm thick, positioned on the right-hand side as standard
• Indicator lights for power and heating status on each griddle control
• Heavy-duty reinforced control knobs with clear, non-fade markings and reinforced shaft sleeves
• Heavy-duty 304 stainless steel construction throughout
• Cabinet base with single hinged door for enclosed underbench storage
• 165mm splashback included as standard
• Adjustable feet for levelling plus 2 additional rollers for mobility
• Optional GN 1/1 4-position racking kit
• Optional solid hotplate elements in place of radiant elements
• Freestanding installation with 3P+N+E electrical connection at 400–415Vac, 50/60Hz, 13kW total, 20A per phase maximum
• Manufactured in New Zealand
• Dimensions: 900mm wide x 812mm deep x 915mm high (1085mm including splashback)

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Number of Burners: 6
• Cooking Surface Area (mm): 295 x 530
• Power Rating: 13 kW|20A/phase max.|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 230-240V | Single Phase
