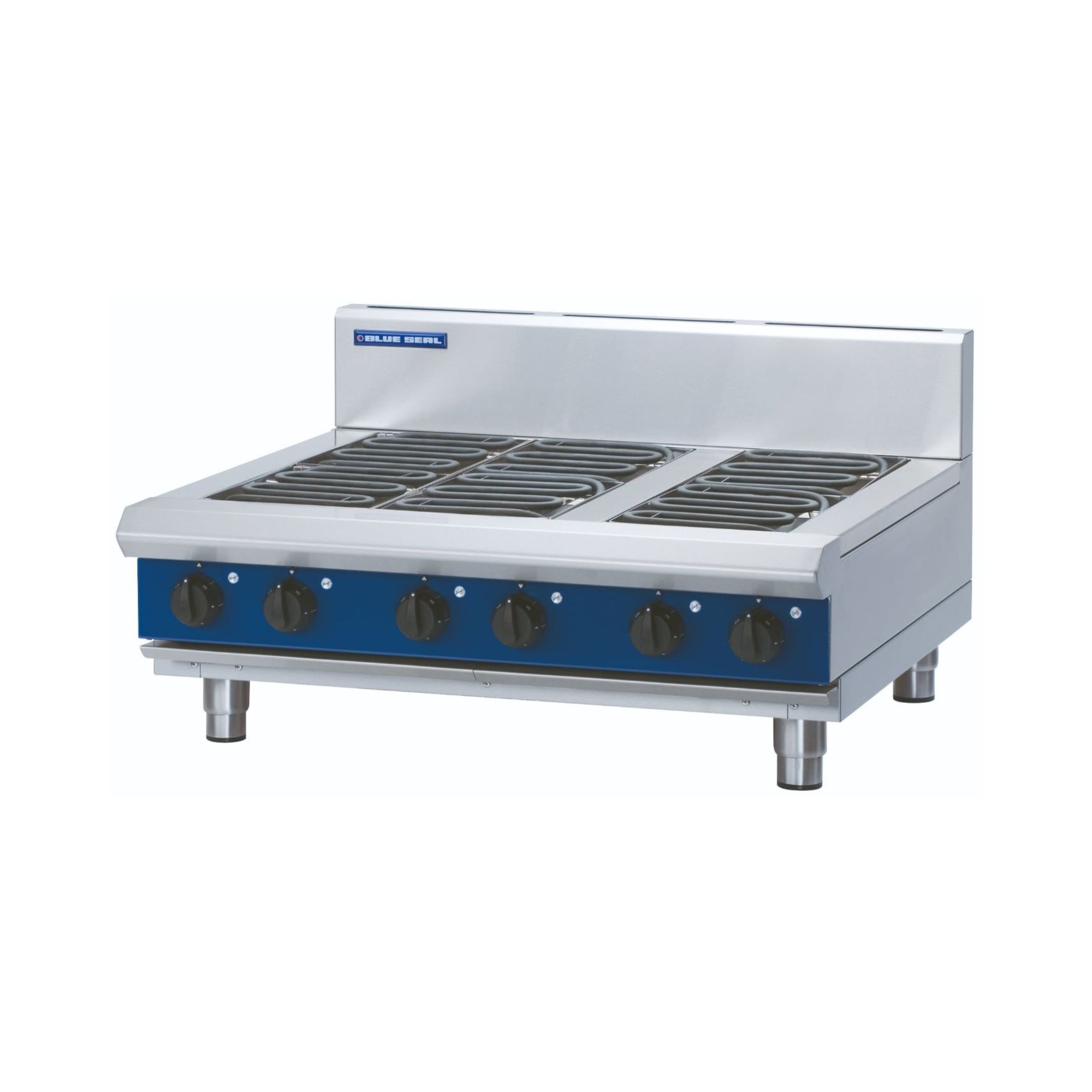

Blue Seal E516D-B Evolution Series 900mm Electric Cooktop - Bench Model

The Blue Seal E516D-B is a 900mm wide commercial electric cooktop from the Evolution Series, designed to deliver reliable, high-output performance in demanding professional kitchens. Powered by six individual 2.4 kW radiant elements totalling 14.4 kW, it provides consistent, even heat across the full cooking surface and accepts optional 2 kW solid plate elements for kitchens requiring a different cooking style.

Built as a bench model, the E516D-B offers flexible placement on existing workstations or custom bases, making it a practical choice for kitchens where space and layout need to adapt to service demands. Heavy-duty stainless steel construction, reinforced control knobs with clear non-fade markings, and adjustable feet with two additional rollers combine to make this unit straightforward to position, operate, clean, and service day after day.

Key Benefits

• Six independent 2.4 kW radiant elements allow different heat zones to be set simultaneously, supporting a wide range of cooking tasks during a single service.
• Energy regulator controls on each element enable precise adjustment from a high rolling boil down to a gentle simmer, reducing the risk of scorching delicate preparations.
• Heavy-duty reinforced control knobs with strengthened shaft sleeves and non-fade markings withstand constant daily use, minimising the need for replacement parts.
• Bench model format provides installation flexibility, allowing the unit to sit on an existing worktop, custom stand, or refrigeration base to suit the kitchen layout.
• Adjustable feet and two included rollers make levelling and repositioning straightforward, saving time during kitchen reconfigurations or deep cleans.
• Optional solid hotplate elements can replace radiant elements where uniform surface contact and heat retention are preferred for specific menu items.
• Stainless steel construction throughout supports fast, hygienic cleaning between services, keeping the unit compliant with commercial kitchen standards.
• Compact 900 mm footprint delivers a 900 x 480 mm cooking surface, maximising usable cooking area relative to bench space occupied.

Key Features

• 6 x 2.4 kW radiant elements, totalling 14.4 kW output
• Energy regulator controls on each element for variable heat from high to low/simmer
• Optional 2 kW solid hotplate elements available as an alternative to radiant elements
• Heavy-duty reinforced control knobs with clear, non-fade markings and strengthened shaft sleeves
• 900 x 480 mm cooking surface area
• Heavy-duty stainless steel finish throughout
• Four stainless steel bench legs with adjustable feet for levelling on uneven floors
• Two additional rollers included for repositioning the unit
• 165 mm splashback included
• Bench model design for placement on existing workstations or custom bases
• Electrical supply: 14.4 kW, 400-415 Vac, 50/60 Hz, 3P+N+E, 20A per phase
• 304 stainless steel material
• Country of origin: New Zealand
• Dimensions: 900 mm W x 812 mm D x 485 mm H
• Packed weight: 135 kg
• Freestanding, freestanding mounting type
• Designed for easy cleaning, installation, and servicing
• Part of the modular Blue Seal Evolution Series, compatible with other 900 mm series equipment

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 135
• Packed Width (mm): 945.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.546730000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
