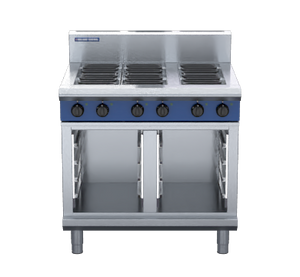

Blue Seal E516D-CB Evolution Series 900mm Electric Cooktop – Cabinet Base

The Blue Seal E516D-CB Evolution Series is a 900mm six-element electric cooktop mounted on a cabinet base, purpose-built for the demands of professional commercial kitchens. Each of the six radiant elements delivers 2.4kW of heat, totalling 14.4kW across the cooking surface, with individual energy regulator controls that allow fine-tuned temperature adjustments from a high-heat sear right down to a gentle simmer.

Constructed from heavy-duty 304 stainless steel and fitted with reinforced control knobs featuring non-fade markings and strengthened shaft sleeves, this unit is engineered for long-term durability under daily kitchen punishment. The cabinet base provides valuable enclosed storage, while adjustable feet and two additional rollers make levelling and repositioning straightforward. Optional accessories including GN 1/1 four-position racking kits and solid hotplate elements extend its versatility even further.

Key Benefits

• Six simultaneous cooking zones allow multiple dishes to be prepared at once, significantly improving kitchen throughput during busy service periods.
• Individual energy regulator controls on every element give chefs precise heat management across the full range, from rapid boiling to a low simmer, without overshooting.
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves withstand constant daily use and reduce the need for frequent replacement parts.
• Adjustable feet ensure stable, level installation on uneven floors, while two integrated rollers allow the unit to be moved easily for cleaning or repositioning.
• The enclosed cabinet base offers practical undercounter storage space, keeping the kitchen organised and making efficient use of the unit's footprint.
• Optional solid hotplate elements can replace radiant elements to suit different cooking techniques or menu requirements without needing additional equipment.
• Freestanding installation with a 165mm splashback simplifies placement in a variety of kitchen layouts without the need for specialist fitout work.
• Smooth stainless steel surfaces and an accessible design make routine cleaning, servicing, and maintenance quick and straightforward, minimising downtime.

Key Features

• Six 2.4kW radiant elements across a 900 x 480mm cooking surface, delivering a total output of 14.4kW
• Individual energy regulator controls on each element for variable, precise temperature management
• Heavy-duty 304 stainless steel construction throughout for durability and hygiene
• Heavy-duty reinforced control knobs with non-fade markings and strengthened shaft sleeves for long service life
• Cabinet base with single hinged door providing enclosed storage beneath the cooking surface
• 165mm splashback included as standard
• Freestanding, freestanding installation with manual knob temperature control
• Adjustable feet for stable levelling on uneven surfaces
• Two additional rollers to facilitate easy repositioning and cleaning access
• Optional GN 1/1 four-position racking kit for added storage or holding functionality
• Optional solid hotplate elements (2kW) available as an alternative to radiant elements
• Electrical supply: 14.4kW, 400–415Vac, 50/60Hz, 3P+N+E, 20A per phase
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 195
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Manual Knob
• Temperature Control: Variable Power Control
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 6
• Cooking Surface Area (mm): 900 x 480
• Power Rating: 14.4 kW|20A/phase|3P+N+E|400-415Vac|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
