Overview

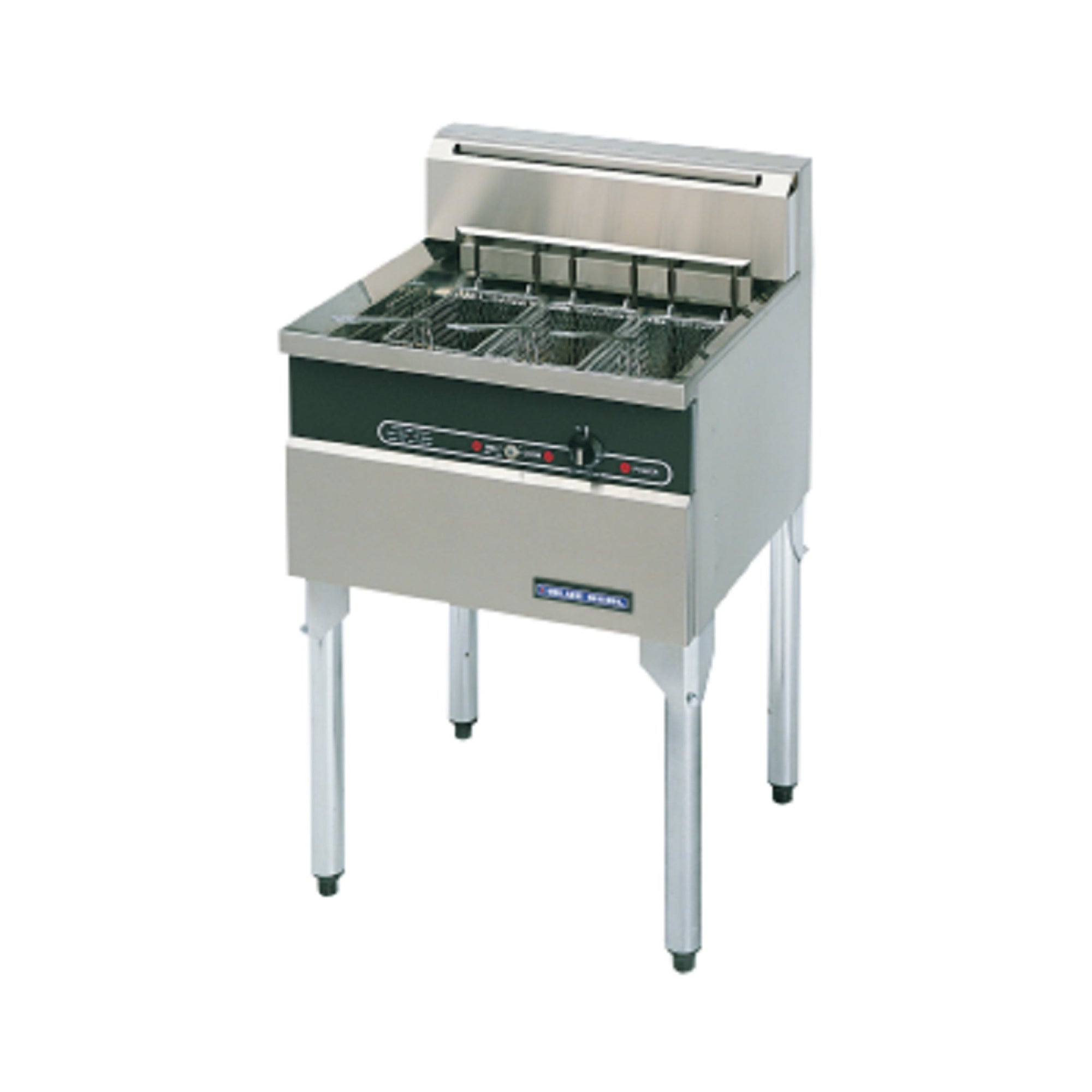

Blue Seal E603 Evolution Series 600mm Single Pan Electric Fish Fryer

The Blue Seal E603 is a purpose-built commercial electric fish fryer from the Evolution Series, offering a 600mm wide single-pan configuration with a generous 30-litre oil capacity. Designed for fish and chip shops, seafood restaurants, and high-volume takeaway and hospitality kitchens, the E603 delivers powerful 17kW electric heating elements that ensure rapid heat-up and fast recovery between batches, keeping output consistent during peak service periods.

Part of Blue Seal's streamlined Evolution Series range, the E603 is available in 450mm and 600mm widths in single or twin pan configurations, with a choice of mechanical or digital controls to suit different operational needs. Digital control models feature a timer suite of three product presets alongside a display showing both current time and set temperature, while twin pan models offer fully independent controls on each pan supported by a total of six product timers. Built from 304 stainless steel with a vitreous enamel control panel, chrome-plated adjustable legs, and a reinforced bash bar, the E603 is engineered for durability, easy cleaning, and sustained dependability across years of intensive kitchen service.

Key Benefits

• Wide, shallow 30-litre pan maximises oil surface area, allowing large flat products such as fish fillets to be fried without overcrowding for even, consistent results.
• Powerful 17kW heating elements deliver fast heat-up times and exceptional recovery between batches, maintaining throughput during busy service periods.
• Swing-clear elements allow unobstructed access to the tank interior, making cleaning and maintenance significantly quicker and easier.
• Variable thermostat with a melt cycle switch enables safe use of solid shortening and precise temperature control across a wide cooking range.
• Over-temperature reset button provides an additional layer of safety, protecting both the equipment and the operator in the event of a temperature fault.
• Reinforced tank bash bar extends tank service life and provides a practical resting point for draining baskets between loads.
• Sturdy chrome-plated legs fitted with height-adjustable feet keep the unit stable and level on uneven kitchen floors while simplifying routine cleaning underneath.
• Supplied with three standard baskets so the fryer is ready for immediate use straight out of the box.
• Modular Evolution Series design allows the E603 to integrate neatly with other Blue Seal Evolution Series equipment for a cohesive, space-efficient cooking suite.

Key Features

• 600mm wide single pan electric fish fryer configuration
• 30-litre oil capacity suited to high-volume frying of fish, fillets, and large food portions
• 17kW heavy-duty electric heating elements with rapid heat recovery
• Variable thermostat with temperature range of 90°C to 185°C
• Melt cycle switch for safe use of solid shortening
• Over-temperature reset button for operational safety
• Swing-clear elements for unobstructed tank access and thorough cleaning
• Reinforced tank bash bar for extended tank life and basket draining
• Easy-clean vitreous enamel control panel
• Chrome-plated legs with individually adjustable feet for stable, level placement
• 304 stainless steel construction throughout
• 165mm splashback included
• Freestanding installation with digital electronic temperature control (digital models)
• Digital control models include three product timers and a dedicated readout displaying both temperature and elapsed time
• Twin pan models available with each pan operating under its own independent digital control panel, with six product timers across both pans
• Available in 450mm and 600mm widths in single or twin pan configurations
• Electrical supply: 17kW, 400-415V, 3P+N+E, 50/60Hz
• Secondary single-phase supply: 230-240V, 1P+N+E, 50/60Hz
• Supplied with three standard baskets
• Manufactured in New Zealand
• Modular compatibility with the Blue Seal Evolution Series range

Specifications

• Width (mm): 600
• Depth (mm): 585
• Height (mm): 1030
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 89
• Packed Width (mm): 870.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 690.0
• Shipping Cubic: 0.753377000m3
• Material: 304 Stainless Steel
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Digital Electronic
• Temperature Control: Thermostat | 90-185°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Number of Burners: 1
• Power Rating: 17kW|3P+N+E; Phase loading|400-415V
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
