Overview

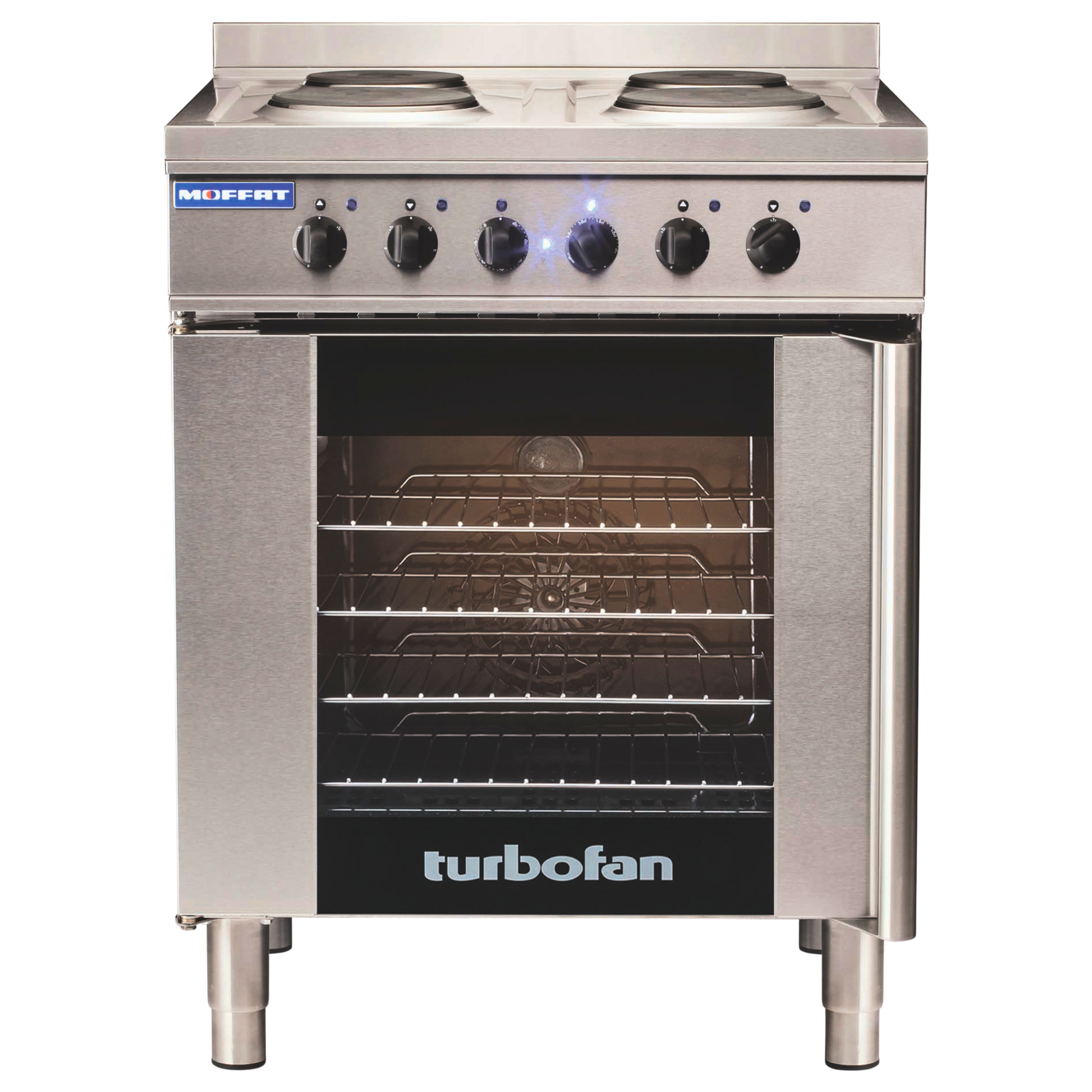

Turbofan E931M Full Size Tray Electric Convection Oven and Cooktop

The Turbofan E931M is a light commercial electric convection oven and cooktop combination designed to deliver exceptional versatility in compact kitchen environments. The oven accommodates 4 x 1/1 GN Gastronorm pans with 80mm tray spacing, and supports roasting, baking and grilling, while the integrated 4-element cooktop provides a total of 7kW of cooking power across front and rear hotplate zones. Built in New Zealand from 304 stainless steel, the E931M is engineered for cafes, catering operations and small commercial kitchens where counter space is at a premium.

A low-velocity circulation fan ensures even heat distribution throughout the oven cavity, with a mechanical thermostat adjustable from 50 to 270°C and a 60-minute timer with audible buzzer for straightforward, dependable operation. The cooktop features a fully hygienic pressed stainless steel top with 6-position heat setting controls per element, while the oven chamber is lined with vitreous enamel for easy cleaning and long-term durability. The unit runs on single-phase power, with the oven and cooktop on separate electrical circuits to suit a range of installation requirements.

Key Benefits

• Combines a full-size convection oven and 4-element cooktop in one footprint, freeing up valuable bench and floor space in compact kitchens.
• Fan-forced convection delivers consistent, even heat across all 4 GN 1/1 pan positions, reducing hot spots and improving batch cooking results.
• Grill mode expands cooking versatility beyond baking and roasting, supporting a broader menu without additional equipment.
• High-speed front and rear hotplate elements heat up rapidly, minimising wait times during busy service periods.
• Mechanical controls with a simple thermostat and 60-minute countdown timer are intuitive to operate and require minimal training.
• Vitreous enamel oven chamber and pressed stainless steel cooktop top resist staining and are straightforward to wipe down, supporting food safety and hygiene.
• Adjustable stainless steel legs allow the unit height to be fine-tuned between 870mm and 920mm to suit ergonomic working heights.
• Separate electrical supply circuits for the oven and cooktop provide installation flexibility and allow independent use of each cooking zone.

Key Features

• 4 x 1/1 GN Gastronorm pan capacity with 80mm tray spacing
• 4 oven wire racks included
• Oven internal dimensions: W 565mm x D 395mm x H 425mm; rack dimensions: W 540mm x D 370mm
• Low-velocity single-direction circulation fan for even heat distribution
• Mechanical thermostat adjustable from 50°C to 270°C
• 60-minute timer with time-up buzzer
• Grill mode with 2kW grill elements; 2.8kW heating in bake mode
• 2 x 2kW high-speed front hotplate elements
• 2 x 1.5kW high-speed rear hotplate elements
• 6-position heat setting controls for cooktop elements
• Fully hygienic pressed stainless steel cooktop top
• Vitreous enamel oven chamber for easy cleaning
• Plug-in continuous oven door seal
• Safe-touch vented side-hinged oven door
• Stay-cool door handle
• Halogen oven lamp for interior visibility
• Double-glazed oven door for heat retention and energy efficiency
• 304 stainless steel exterior construction
• 50mm diameter adjustable stainless steel legs (height range 870mm to 920mm)
• Oven electrical requirements: 230-240V, 50Hz, 1P+N+E, 3.1kW, 12.9A, 15A 3-pin cordset fitted
• Cooktop electrical requirements: 230-240V, 29.2A (no lead supplied)
• External dimensions: W 675mm x D 626mm x H 890mm
• 100% recyclable packaging
• Made in New Zealand

Specifications

• Width (mm): 675
• Depth (mm): 626
• Height (mm): 945
• Weight (kg): 340.0
• Colour: Stainless Steel
• Gas Type: N/A (Electric)
• Gas Connection: N/A (Electric)
• Shipping Weight: 95
• Packed Width (mm): 780.0
• Packed Height (mm): 715.0
• Packed Depth (mm): 975.0
• Shipping Cubic: 0.543758000m3
• Material: 304 Stainless Steel
• Country of Origin: New Zealand
• Warranty (months): 12
• Fuel Type: Electric
• Number of Burners: 4
• Power Rating: OVEN
• Power Supply: Single Phase 230-240V
• Voltage (V): 230
