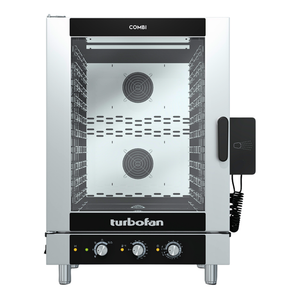

Turbofan EC40M10 Full Size 10 Tray Manual Electric Combi Oven

The Turbofan EC40M10 is a full-size electric combi oven offering a 10-tray capacity and three manual cooking modes — convection, steam, and combination — making it one of the most versatile workhorses available for high-volume commercial kitchens. Powered by a 14kW direct steam system and operated via straightforward electro-mechanical controls, it suits chefs who value hands-on, reliable operation without the complexity of digital programming.

Constructed from stainless steel inside and out, the EC40M10 features a smooth, rounded-edge cooking chamber, double-glazed thermo-reflective tempered glass door, LED interior lighting, and an east-west tray loading configuration for easy access. At just 777mm wide, it delivers serious capacity while maintaining a compact footprint suitable for both back-of-house production kitchens and front-of-house display cooking.

Key Benefits

• Three cooking modes — convection, steam, and combi — allow a single oven to roast, bake, steam, and regenerate, reducing the need for multiple pieces of equipment.
• Direct steam injection combined with auto-reversing fan direction ensures even heat and humidity distribution across all 10 trays, minimising hot spots and improving consistency.
• Electro-mechanical dial controls make the oven quick to learn and simple to operate, reducing training time and operator errors during busy service periods.
• A compact 777mm width maximises oven capacity relative to bench or floor space, helping kitchens with limited room maintain high output.
• The door-open rapid cool-down function speeds up recovery between cooking cycles, supporting faster turnaround during peak service.
• An included hand shower with triple-action water filter cartridge and filter head simplifies manual cleaning, helping maintain hygiene standards without specialised chemicals or wash programmes.
• Accommodates both 1/1 GN pans and 600mm x 400mm baking trays with 70mm spacing, giving kitchens flexibility across pastry, bakery, and gastronorm-based cooking.
• LED chamber lighting provides clear visibility of food as it cooks, useful for monitoring product in front-of-house settings without opening the door.
• Compatible with the optional Turbofan SK40A stainless steel oven stand, enabling a purpose-built, ergonomic installation with height-adjustable feet.

Key Features

• Electric direct steam version with 14kW heating power
• 10 x 1/1 GN tray capacity with 70mm tray spacing
• Also accommodates 10 x 600mm x 400mm baking trays
• Three manual cooking modes: Convection (50°C–260°C), Steam (50°C–130°C), and Combi (50°C–260°C)
• Electro-mechanical controls for time, temperature, and cooking mode selection
• Manual timer range up to 120 minutes
• Automatic inversion of fan direction for uniform cooking results across all trays
• Door-open rapid cool-down function
• Manual chamber venting
• Manual cleaning system with externally connected hand shower
• Triple-action water filter cartridge and filter head included
• Double-glazed door with thermo-reflective tempered glass
• Adjustable door hinges for optimal door seal
• LED chamber lighting
• Smooth cooking chamber walls with rounded edges for easy cleaning
• East-west tray loading configuration for straightforward access
• Stainless steel construction inside and out
• Compact 777mm wide body
• Electrical requirements: 400–415V, 50Hz, 3P+N+E, 14.5kW, 22A/ph
• Water supply: cold water 3/4 inch connection, flow pressure 200–500 kPa
• Drain requirement: funnel waste trap/tundish required with 40mm outlet
• Optional Turbofan SK40A oven stand: all-stainless-steel welded frame, 6-position tray runners, 4 height-adjustable feet, supplied flat-pack for on-site assembly (810mm W x 650mm D x 697mm H)

Specifications

• Width (mm): 812
• Depth (mm): 725
• Height (mm): 1145
• Weight (kg): 340.0
• Shipping Weight: 54.6
• Packed Width (mm): 910.0
• Packed Height (mm): 1265.0
• Packed Depth (mm): 865.0
• Shipping Cubic: 0.995745000m3
• Fuel Type: Electric
• Pan Count: 10
• Pan Size: Full Size GN 1/1
• Voltage/Phase: 400-415V, 50Hz, 3P+N+E, 14.5kW, 22A/ph
