Overview

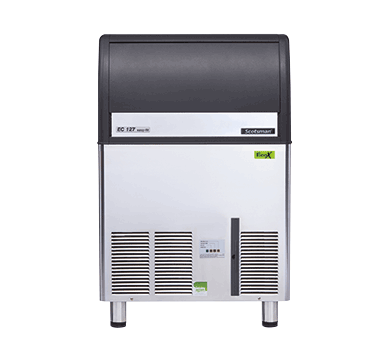

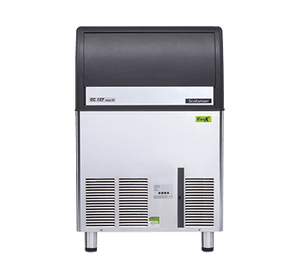

Scotsman ECM 127 AS OX Gourmet Ice Maker with EcoX and XSafe Technology, 74 kg/24 hr, Self-Contained, Air-Cooled

The Scotsman ECM 127 AS OX is a self-contained, air-cooled gourmet ice maker with a daily output of 74 kg of crystal-clear ice and a built-in 39 kg storage bin for uninterrupted supply throughout service. Each individual round cube measures 30 mm in diameter by 34 mm high and weighs 20 g, forming a solid, slow-melting cube that preserves drink integrity and elevates presentation in bars, restaurants, hotels and cafés.

Two proprietary systems distinguish this unit: EcoX harnesses the natural hydrocarbon refrigerant R290 for energy-efficient, low-environmental-impact operation, while XSafe is an integrated natural sanitation system that uses high-power ultraviolet light to generate a reactive oxygen mixture, continuously eliminating bacteria, viruses, mould and yeast around the clock. Complementing these technologies are Agion antimicrobial treatment on all ice-contact surfaces, horizontal evaporator spray-system technology, and a progressive water discharge pump capable of evacuating excess water up to 15 metres.

Key Benefits

• A daily capacity of 74 kg of ice output across a 24-hour cycle makes this unit well suited to medium-to-high-volume hospitality venues with consistent demand.
• The built-in 39 kg storage bin keeps ice readily available during peak service without requiring a separate bin purchase.
• The XSafe UV photocatalytic sanitation system runs automatically around the clock, neutralising pathogens and reducing contamination risk without the need for chemical additives.
• EcoX technology uses R290 natural refrigerant, which carries one of the lowest global warming potentials of any cooling agent, reducing carbon footprint and long-term energy costs.
• Round, slow-melting gourmet cubes release dilution gradually, keeping beverages cooler for longer and preserving flavour balance in cocktails and premium drinks.
• The progressive water discharge pump shifts excess water up to 15 metres, allowing flexible installation in kitchens where floor drains are not located nearby.
• The condenser air filter is accessible from the front, lifts out without tools and is fully washable, simplifying routine upkeep and helping sustain peak efficiency over time.
• The ice storage compartment features a disappearing door with a dampened closing mechanism, making ice retrieval smooth and minimising wear on the cabinet.
• Agion antimicrobial treatment on ice-contact surfaces actively inhibits microbial growth and odour development, supporting food-safe ice production between scheduled cleans.

Key Features

• Daily ice production capacity: 74 kg per 24-hour cycle
• Built-in ice storage bin: 39 kg
• Gourmet cube dimensions: 30 mm diameter x 34 mm high, 20 g per cube
• Air-cooled condensing unit suitable for ambient temperatures up to 43°C
• XSafe natural sanitation system: high-power UV light generates a reactive oxygen mixture to continuously eliminate bacteria, viruses, mould and yeast
• EcoX technology using R290 hydrocarbon refrigerant for low global warming potential and energy-efficient operation
• Agion antimicrobial technology on ice-contact surfaces to resist microbial growth and odour development
• Horizontal ice evaporator spray-system technology producing pure, clear, impurity-free ice
• PWD progressive water discharge pump evacuates excess water up to 15 metres
• Integrated drain pump
• Simple, reliable electromechanical controls
• Front-panel ON/OFF switch for straightforward operation
• Routine maintenance alarm light visible on the front panel
• External indicator lights to show operational status
• Clean alert indicator for filter maintenance
• Ice storage access door with a disappearing design and dampened closing mechanism for smooth, low-wear retrieval
• Condenser air filter mounted at the front of the unit, removable without tools and fully washable
• Robust stainless steel exterior built for longevity and straightforward day-to-day cleaning
• Water consumption: 5.7 litres per hour
• Electrical rating: 230–240 V, 50 Hz
• Includes removable air filter, ice scoop, water hose and drain hose
• Regular water filter cartridge replacement required

Specifications

• Width (mm): 680
• Depth (mm): 600
• Height (mm): 1009
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 5.7 liters per hour
• Shipping Weight: 56
• Packed Width (mm): 680.0
• Packed Height (mm): 1008.9999999999999
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.411672000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 13.8kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
