Overview

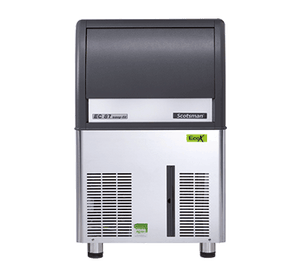

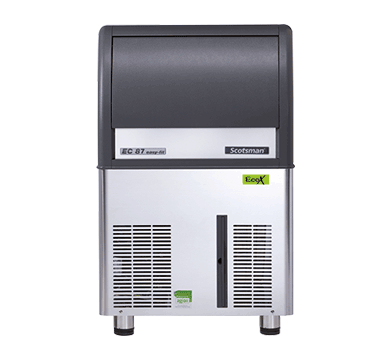

Scotsman ECS 87 AS OX Self-Contained Gourmet Ice Maker with EcoX and XSafe Technology

The Scotsman ECS 87 AS OX is a self-contained, air-cooled gourmet ice maker that delivers up to 39kg of crystal-clear ice cubes every 24 hours, paired with a built-in 19kg storage bin to create a compact, all-in-one unit well suited to cafés, bars, restaurants, boutique hotels, and similar hospitality venues. Each cube measures 21mm in diameter by 25mm high and weighs approximately 8g, forming a solid, slow-melting gourmet cube that is ideal for cocktails, spirits, and premium beverage presentation.

Two of Scotsman's signature technologies distinguish this machine from conventional ice makers. EcoX harnesses the natural hydrocarbon refrigerant R290 for environmentally responsible, energy-efficient operation, while XSafe is an integrated natural sanitation system that uses high-power ultraviolet light to generate a reactive oxygen mixture, continuously eliminating bacteria, viruses, mould, and yeast around the clock so that ice remains odour-free and hygienic without any chemical additives. The horizontal ice evaporator spray-system and Agion antimicrobial technology further support ice purity and long-term machine reliability.

Key Benefits

• Delivers up to 39kg of gourmet ice every 24 hours, maintaining a steady supply for small to medium-volume venues throughout peak service periods.
• Solid, slow-melting cubes keep beverages colder for longer and minimise dilution, raising the quality standard for cocktails and premium drink service.
• XSafe UV sanitation runs automatically around the clock, neutralising bacteria, mould, viruses, and yeast without chemical additives, lowering contamination risk and supporting extended machine life.
• EcoX R290 natural refrigerant carries one of the lowest environmental footprints available, helping venues meet sustainability targets while sustaining powerful cooling performance.
• The integrated 19kg storage bin keeps ice readily available without a separate bin purchase, preserving both bench space and upfront capital.
• The PWD Progressive Water Discharge drain pump evacuates excess water up to 15 metres, offering flexible installation where gravity drainage is not practical.
• A front-access condenser air filter that is both removable and washable allows routine maintenance to be carried out without moving the unit or calling a technician.
• The ergonomically designed ice access door features a disappearing panel and a dampened closing mechanism, making scooping fast, quiet, and safe during busy service.
• A compact 531mm-wide footprint supports undercounter installation in space-conscious venues, and quiet air-cooled operation makes the unit equally appropriate for front-of-house settings.

Key Features

• 39kg daily ice production capacity
• Built-in 19kg ice storage bin
• Gourmet cube dimensions: 21mm diameter x 25mm high, approximately 8g per cube
• Air-cooled condensing unit suitable for ambient temperatures up to 43°C
• XSafe Natural Sanitation System: high-power UV light generates a reactive oxygen mixture that continuously eliminates viruses, bacteria, mould, and yeast
• EcoX technology using R290 natural hydrocarbon refrigerant gas for low environmental impact
• Agion antimicrobial technology resists microbial growth and odour development to produce pure, clear, transparent ice cubes
• Horizontal ice evaporator spray-system technology for consistent, individual crystal-clear cube formation
• PWD Progressive Water Discharge integrated drain pump capable of pumping excess water up to 15 metres
• Simple, reliable electromechanical controls
• Routine maintenance visible alarm light on the front panel
• Clean alert indicator to signal when the filter requires attention
• External indicator lights displaying operational status
• Ergonomically designed ice storage access with a disappearing door and door-closing dampening mechanism
• Front-access condenser air filter that is removable and washable
• Durable stainless-steel exterior for commercial environments
• Automatic rinse and purge cycles to maintain ice clarity and hygiene
• Water consumption: 5.8 litres per hour
• Energy consumption: 10.8kWh per 24 hours
• Electrical rating: 230-240V, 50Hz, 10A

Specifications

• Width (mm): 531
• Depth (mm): 600
• Height (mm): 825
• Weight (kg): 340.0
• Colour: Stainless Steel
• Water Consumption: 5.8 liters per hour
• Shipping Weight: 53
• Packed Width (mm): 531.0
• Packed Height (mm): 849.0
• Packed Depth (mm): 600.0
• Shipping Cubic: 0.270491000m3
• Material: Stainless Steel
• Country of Origin: Stainless Steel
• Warranty (months): Italy/USA
• Energy Consumption (kWh/24h): 10.8kW/hr
• Capacity (Litres): 200
• Ice Production: 200
• Ice Storage: Requires Bin
• Refrigeration Type: Air/Water
• Cooling Type: Air/Water
• Ice Type: Cube
• Max Ambient Temp (°C): 43
• Refrigerant: R290
• Ice Size: Gourmet (Large)
• Installation Type: Modular
• Voltage/Phase: 230V 50Hz
