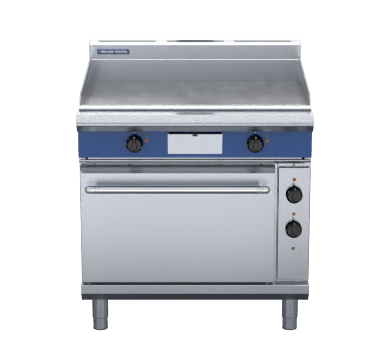

Blue Seal EP506 Evolution Series 900mm Electric Griddle Static Oven Range

The Blue Seal EP506 is a 900mm wide all-electric commercial range from the Evolution Series, combining a heavy-duty smooth mild steel griddle plate with a 2/1 GN electric static oven in a single freestanding unit. The griddle surface is divided into independent left and right heat zones, each with thermostatically controlled hot plate elements operating between 50 and 320°C per 300mm section, while the static oven beneath provides stable, uniform heat for baking, roasting, and finishing across its full 2/1 GN capacity.

Manufactured in New Zealand from heavy-duty 304 stainless steel with solid, seamless weld construction, the EP506 is engineered for the rigours of high-volume commercial kitchens. The unit integrates seamlessly into modular Blue Seal Evolution Series layouts and is designed for straightforward cleaning, installation, and servicing, making it a practical long-term investment for restaurants, cafés, and catering operations.

Key Benefits

• Independent left and right griddle heat zones allow simultaneous cooking of different items at different temperatures, improving service flexibility and reducing energy use during quieter periods.
• A 20mm thick machined mild steel griddle plate delivers exceptional heat retention and even distribution across the full 892 x 530mm cooking surface, producing consistent results for meats, seafood, eggs, and breakfast items.
• The 2/1 GN electric static oven supports efficient batch cooking and finishing, accommodating full gastronorm trays for high-output roasting and baking.
• Thermostatically controlled griddle sections with individual indicator lights for power and heating give operators precise, at-a-glance temperature management throughout service.
• A fully welded and vitreous enamelled oven liner resists grease and staining, making post-service cleaning faster and reducing downtime between sessions.
• Adjustable feet combined with two rear rollers allow easy repositioning and levelling on uneven kitchen floors without requiring additional equipment.
• The cool-touch stainless steel door handle and drop-down oven door with welded frame reduce burn risk and support safe, one-handed access during busy service.
• A 165mm splashback is included as standard, protecting the wall behind the unit and simplifying compliance with kitchen hygiene requirements.
• As part of the modular Blue Seal Evolution Series, the EP506 lines up flush with companion units for a streamlined, professional kitchen layout.

Key Features

• 900mm wide freestanding electric griddle oven range, Evolution Series
• 20mm thick smooth machine-finished mild steel griddle plate with top weld-sealed construction
• Cooking surface area: 892 x 530mm
• Separate left and right independent heat zones across the griddle surface
• Hot plate elements with energy regulator controls; thermostat range 50-320°C per 300mm griddle section
• Individual power and heating indicator lights for each griddle control zone
• 2/1 GN electric static oven with 12kW heating elements
• Oven temperature range: 90-300°C, thermostatically controlled
• Fully welded and vitreous enamelled oven liner for durability and easy cleaning
• Drop-down oven door with welded frame and cool-touch stainless steel handle
• 2 oven shelves included; single oven door
• Stainless steel grease drawer for griddle drippings
• 165mm rear splashback included
• Heavy-duty 304 stainless steel construction throughout
• Heavy-duty reinforced control knobs
• Adjustable feet plus 2 rear rollers for repositioning and levelling
• Electrical supply: 18.6kW, 400-415Vac, 3P+N+E, 50/60Hz, 26A per phase
• Freestanding installation; modular compatible with Blue Seal Evolution Series
• Manufactured in New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 218
• Packed Width (mm): 945.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.031798000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Integrated Oven)
• Door Type: Drop Down
• Splash Back: Yes (165mm)
• No. of Shelves: 2
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Capacity (Litres): 2
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 892 x 530
• Number of Burners: 6
• Power Rating: 18.5kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V | 3 Phase
