Overview

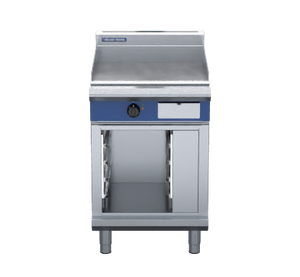

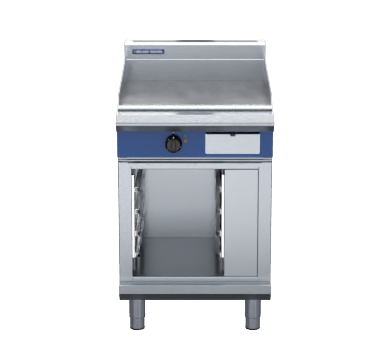

Blue Seal EP514-CB Evolution Series 600mm Electric Griddle – Cabinet Base

The Blue Seal EP514-CB is a 600mm electric griddle built on a cabinet base, forming part of the Evolution Series designed for demanding commercial kitchen environments. Constructed in New Zealand from 304 stainless steel, it features a 20mm thick smooth mild steel griddle plate delivering exceptional heat retention and even heat distribution across a 600 x 480mm cooking surface, making it equally suited to high-volume breakfast service, burgers, seafood and a wide range of grilled items.

Powered by 7.2kW heating elements with a single thermostatically controlled temperature zone adjustable between 90°C and 300°C, the EP514-CB offers precise, repeatable cooking results. The unit is fully modular for a match-suite finish and incorporates practical features throughout – from a stainless steel grease drawer and top weld sealed plates to adjustable feet, rear rollers and heavy-duty reinforced control knobs – making daily cleaning, repositioning and servicing straightforward for busy kitchen teams.

Key Benefits

• Even, consistent heat across the entire 600 x 480mm cooking surface speeds up service and reduces the risk of unevenly cooked food during peak periods.
• A 20mm thick griddle plate retains heat efficiently, recovering temperature quickly after cold product is loaded and maintaining steady output under continuous demand.
• Single-zone thermostat control spanning 90–300°C gives operators simple, accurate temperature management without complicated settings.
• Top weld sealed plate construction prevents grease and food debris from migrating beneath the plate, keeping the unit hygienic and reducing deep-clean time.
• The stainless steel grease drawer channels runoff cleanly away from the cooking zone and pulls out easily for quick emptying and washing between service periods.
• Two rear rollers and two adjustable front feet allow the unit to be repositioned easily for cleaning or kitchen reconfiguration without needing to lift heavy equipment.
• Optional GN 1/1 four-position racking kit expands workflow flexibility, and optional ribbed or chrome mirror plate variants cater to different menu and presentation requirements.
• Fully modular design allows the EP514-CB to sit alongside other Evolution Series equipment for a uniform, professional suite appearance.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, reducing maintenance costs over the unit's service life.

Key Features

• 600mm wide electric griddle mounted on a single-door hinged cabinet base
• Evolution Series construction; manufactured in New Zealand
• 304 stainless steel exterior and body
• Double-skin 0.9mm stainless steel interior and exterior cabinet construction
• 63mm diameter heavy-duty 1.2mm stainless steel legs
• Two adjustable feet at the front and two rollers at the rear for levelling and mobility
• 20mm thick smooth mild steel griddle plate for superior heat retention and even cooking
• Cooking surface area: 600 x 480mm
• 4 x heating elements totalling 7.2kW
• Single temperature control zone with thermostat regulation from 90°C to 300°C
• Top weld sealed plate construction for durability and hygiene
• 165mm splashback fitted as standard
• Stainless steel grease drawer for easy grease collection and cleaning
• Heavy-duty reinforced control knobs for reliable day-to-day operation
• Fully modular design compatible with other Evolution Series equipment for a matched suite
• Optional GN 1/1 four-position racking kit available
• Optional ribbed mild steel plate or chrome mirror plate available as alternatives to the standard smooth plate
• Freestanding, freestanding installation type
• Electrical supply: 7.2kW, 230–240V AC, 50/60Hz, 1P+N+E, 30A
• Dimensions: 600mm (W) x 812mm (D) x 1085mm (H including splashback)
• Overall weight: 118kg (product); packed weight: 172kg
• Packed dimensions: 645mm (W) x 870mm (D) x 1255mm (H); shipping cubic: 0.704m³
• Easy to clean, install and service, minimising downtime between services

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 172
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 4
• Power Rating: 1P+N+E|30A|50/60Hz|7.2kW 230-240Vac
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
