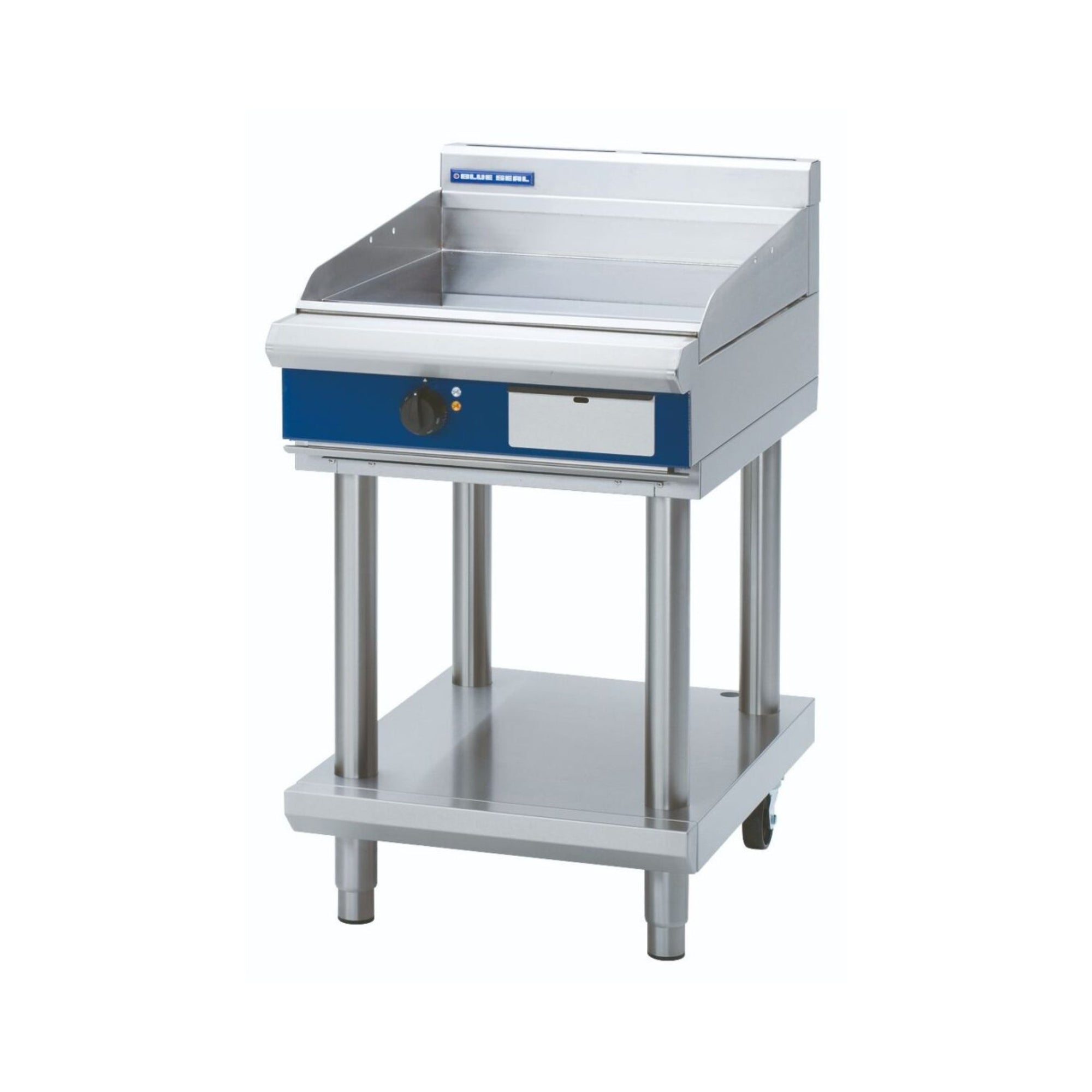

Blue Seal EP514-LS Evolution Series 600mm Electric Griddle on Leg Stand

The Blue Seal EP514-LS is a 600mm electric griddle from the Evolution Series, mounted on a dedicated leg stand for a complete freestanding workstation. Built in New Zealand from 304 stainless steel with solid, seamlessly welded construction, the unit features a 20mm thick mild steel griddle plate that delivers exceptional heat retention and even distribution across a 600 x 480mm smooth cooking surface, making it well suited to high-volume breakfast, burger and café service.

Thermostatically controlled across a single temperature zone from 90°C to 300°C, the EP514-LS runs on a single-phase 230-240V supply at 7.2kW, keeping installation straightforward for most commercial kitchen fit-outs. A stainless steel grease drawer, top weld sealed plates and heavy-duty reinforced control knobs all contribute to a unit designed for fast cleaning, dependable daily use and long service life. Optional ribbed or chrome mirror plate configurations are available to suit different cooking applications.

Key Benefits

• The 20mm thick griddle plate stores and distributes heat evenly, reducing hot spots and delivering consistent cooking results across the entire surface during busy service periods.
• Single-zone thermostat control with a wide 90-300°C range gives operators precise, reliable temperature adjustments for a broad variety of menu items from delicate eggs to seared burgers.
• Top weld sealed plates prevent grease and food debris from seeping beneath the surface, making daily cleaning faster and more thorough.
• The dedicated stainless steel grease drawer collects drippings hygienically and slides out for quick emptying between service periods without interrupting cooking.
• Adjustable feet and two included rollers allow the unit to be levelled on uneven floors and repositioned easily during kitchen reconfiguration or deep cleaning.
• Single-phase 230-240V electrical connection at 30A simplifies installation without requiring three-phase infrastructure in most existing commercial kitchens.
• Optional ribbed plate or chrome mirror plate configurations allow the same unit to be specified for grilling, caramelising or reduced-fat cooking, adding versatility to the investment.
• Solid seamless weld construction and heavy-duty reinforced control knobs are built to withstand the physical demands of continuous commercial use with minimal maintenance.

Key Features

• 600mm wide electric griddle mounted on a matching leg stand for a fully freestanding setup
• 7.2kW heating elements; 230-240Vac, 50/60Hz, 1P+N+E, 30A power supply
• 20mm thick smooth mild steel griddle plate for maximum heat retention and distribution
• Cooking surface area: 600 x 480mm
• Single temperature control zone with thermostat range of 90-300°C
• Top weld sealed griddle plates prevent ingress of grease and debris
• Stainless steel grease drawer for hygienic, easy fat collection and disposal
• Heavy-duty reinforced control knobs for durability under constant commercial use
• Adjustable feet for levelling on uneven surfaces, plus 2 additional rollers included for repositioning
• 165mm splashback included
• Suite-matching undershelf included
• 304 stainless steel construction throughout the stand and body
• Freestanding, floor-mounted installation type
• Manufactured in New Zealand
• Optional ribbed machine-finished mild steel plate available
• Optional chrome mirror plate available in smooth or ribbed finish, minimising heat loss by trapping more heat at the cooking surface
• Designed for straightforward cleaning, installation and servicing

Specifications

• Width (mm): 600
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 172
• Packed Width (mm): 645.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.704243000m3
• Material: 304 Stainless Steel
• Undershelf: Yes (Suite Matching)
• Splash Back: Yes (165mm)
• No. of Shelves: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 600 x 480
• Number of Burners: 4
• Power Rating: 1P+N+E|30A|50/60Hz|7.2kW 230-240Vac
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
