Overview

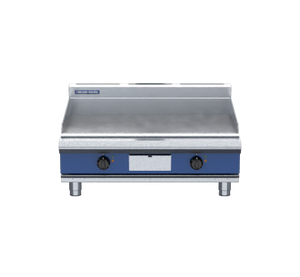

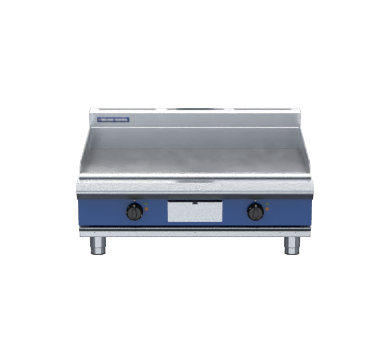

Blue Seal EP516-B Evolution Series 900mm Electric Griddle – Bench Model

The Blue Seal EP516-B is a 900mm bench-model electric griddle from the Evolution Series, engineered for high-volume commercial kitchens requiring consistent, reliable cooking performance. Built in New Zealand from 304 stainless steel, it features a 20mm thick smooth mild steel griddle plate that retains and evenly distributes heat across a generous 900 x 480mm cooking surface, making it ideal for breakfasts, burgers, seafood and any high-turnover menu items.

Powered by 12kW heating elements operating on a 400–415V three-phase supply, the EP516-B is designed for straightforward installation, easy daily cleaning and simple servicing. A stainless steel grease drawer, top-weld-sealed plates and heavy-duty reinforced control knobs all contribute to a unit built to withstand the demands of a busy professional kitchen. Optional ribbed or chrome mirror plate configurations allow the griddle to be specified to suit different cooking requirements.

Key Benefits

• The 20mm thick mild steel griddle plate excels at heat retention and even distribution, reducing hot spots and delivering consistently cooked food across the entire surface.
• A single thermostat control zone spanning 90–300°C allows precise temperature management across the full 900mm cooking width, simplifying operation during busy service periods.
• Top-weld-sealed plates prevent grease and food debris from penetrating joints, making daily cleaning faster and more thorough.
• The stainless steel grease drawer captures drippings efficiently and slides out for quick emptying and cleaning, reducing downtime between services.
• Adjustable feet and two additional rollers make positioning and levelling straightforward, allowing the unit to be relocated easily for cleaning or kitchen reconfiguration.
• Optional ribbed or chrome mirror plate configurations let operators choose a cooking surface suited to specific menu items such as vegetables, fish or premium proteins.
• Heavy-duty reinforced control knobs are built to withstand the rigours of continuous commercial use, maintaining reliable thermostat operation over the long term.
• A 165mm splashback provides practical protection for walls and surrounding equipment, reducing cleaning requirements in the surrounding area.
• Compact bench-model footprint integrates into existing kitchen layouts without requiring floor space, while four 63mm diameter 304 stainless steel legs with adjustable feet offer stable, hygienic support.

Key Features

• 900mm wide bench-model electric griddle from the Blue Seal Evolution Series
• 12kW total heating output via multiple heating elements
• 20mm thick smooth mild steel griddle plate for superior heat retention and even distribution
• Cooking surface area: 900 x 480mm
• Single temperature control zone with thermostat ranging from 90°C to 300°C
• Top-weld-sealed plates for a hygienic, easy-clean construction
• Stainless steel grease drawer for efficient fat capture and simple emptying
• Heavy-duty reinforced control knobs designed for high-frequency commercial use
• Adjustable feet and two additional rollers for easy levelling and repositioning
• 165mm splashback included as standard
• Four 63mm diameter heavy-duty 1.2mm 304 stainless steel bench legs with adjustable feet
• Adjustable working height range: 80mm to 105mm (via adjustable feet)
• Body constructed from 304 stainless steel
• Electrical requirements: 12kW, 400–415V AC, 3P+N+E, 50/60Hz, 17A
• Freestanding, bench-mount installation type
• Optional ribbed mild steel plate available
• Optional chrome mirror plate available
• Designed for easy installation, cleaning and servicing
• Country of origin: New Zealand
• Overall dimensions: 900mm (W) x 812mm (D) x 485mm (H including splashback)

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 485
• Weight (kg): 340.0
• Colour: Stainless Steel
• Shipping Weight: 172
• Packed Width (mm): 994.0
• Packed Height (mm): 665.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 0.575079000m3
• Material: 304 Stainless Steel
• Undershelf: N/A (Bench Model)
• Splash Back: Yes (165mm)
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 12kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
