Overview

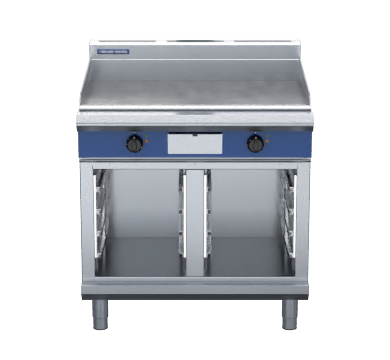

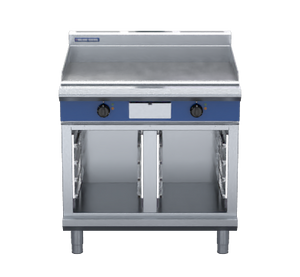

Blue Seal EP516-CB Evolution Series 900mm Electric Griddle – Cabinet Base

The Blue Seal EP516-CB is a 900mm electric griddle from the Evolution Series, mounted on a fully enclosed cabinet base. Built in New Zealand from 304 stainless steel, it features a 20mm thick smooth mild steel griddle plate delivering 12kW of heating power across a 900 x 480mm cooking surface, making it well suited to high-volume breakfast, burger and short-order cooking in busy commercial kitchens.

Designed for ease of use and straightforward maintenance, the EP516-CB includes a stainless steel grease drawer, top weld sealed plates, heavy-duty reinforced control knobs, and thermostatically controlled temperature from 90 to 300°C. The unit is fully modular to integrate with matched Evolution Series suites, and a range of optional accessories – including a GN 1/1 racking kit and alternative plate finishes – extend its versatility further.

Key Benefits

• The 20mm thick griddle plate delivers excellent heat retention and even heat distribution, producing consistent cooking results across the entire surface.
• Thermostatically controlled temperature from 90 to 300°C provides precise heat management for a wide variety of menu items.
• The stainless steel grease drawer and top weld sealed plates make daily cleaning fast and hygienic, reducing turnaround time between services.
• Adjustable feet at the front and two rear rollers allow the unit to be levelled on uneven floors and repositioned easily without heavy lifting.
• Fully modular construction with a framed top enables the griddle to connect directly to adjacent Evolution Series equipment for a neat, matched suite finish.
• Optional GN 1/1 four-position racking kit (for one or two cabinet bays) adds flexible internal storage capacity within the base.
• Optional ribbed or chrome mirror plate provides versatility for different cooking styles without requiring a separate appliance.
• Heavy-duty reinforced control knobs withstand the rigours of continuous commercial use, reducing maintenance and replacement costs over time.

Key Features

• 900mm wide electric griddle mounted on an enclosed cabinet base
• 12kW heating elements; electrical supply 400–415V AC, 3P+N+E, 50/60Hz
• 20mm thick smooth mild steel griddle plate for superior heat retention and uniform cooking
• Cooking surface area: 900 x 480mm
• Single temperature control zone with thermostat adjustable from 90°C to 300°C
• Top weld sealed plates for structural durability and hygienic construction
• Stainless steel grease drawer for straightforward grease collection and cleaning
• Heavy-duty reinforced control knobs designed for continuous commercial operation
• Two adjustable feet at the front and two rear rollers for levelling and mobility
• Fully modular design with framed top for connection to adjacent Evolution Series units
• 63mm diameter heavy-duty 1.2mm 304 stainless steel legs
• Cabinet base with single hinged door
• 165mm splashback included
• Constructed from 304 stainless steel throughout
• Optional GN 1/1 four-position racking kit compatible with one or two cabinet bays
• Optional ribbed or chrome mirror griddle plate available
• Freestanding, freestanding installation type
• Country of origin: New Zealand

Specifications

• Width (mm): 900
• Depth (mm): 812
• Height (mm): 1085
• Weight (kg): 396.0
• Colour: Stainless Steel
• Shipping Weight: 223
• Packed Width (mm): 994.0
• Packed Height (mm): 1255.0
• Packed Depth (mm): 870.0
• Shipping Cubic: 1.085299000m3
• Material: 304 Stainless Steel
• Undershelf: Cabinet Base
• Door Type: Hinged
• Splash Back: Yes (165mm)
• No. of Doors: 1
• Country of Origin: New Zealand
• Warranty (months): 12
• Temperature Range: Electric
• Installation Type: Freestanding
• Control Type: Thermostat
• Temperature Control: Thermostat | 90-300°C
• Mounting Type: Freestanding
• Fuel Type: Electric
• Griddle Plate Thickness (mm): 20
• Griddle Surface: Smooth Mild Steel
• Cooking Surface Area (mm): 900 x 480
• Number of Burners: 6
• Power Rating: 12kW 400-415Vac|3P+N+E; Phase loading|50/60Hz
• Power Supply: 230-240 Vac | 1P+N+E | 50/60 Hz
• Voltage/Phase: 400-415V 3P+N+E
