Overview

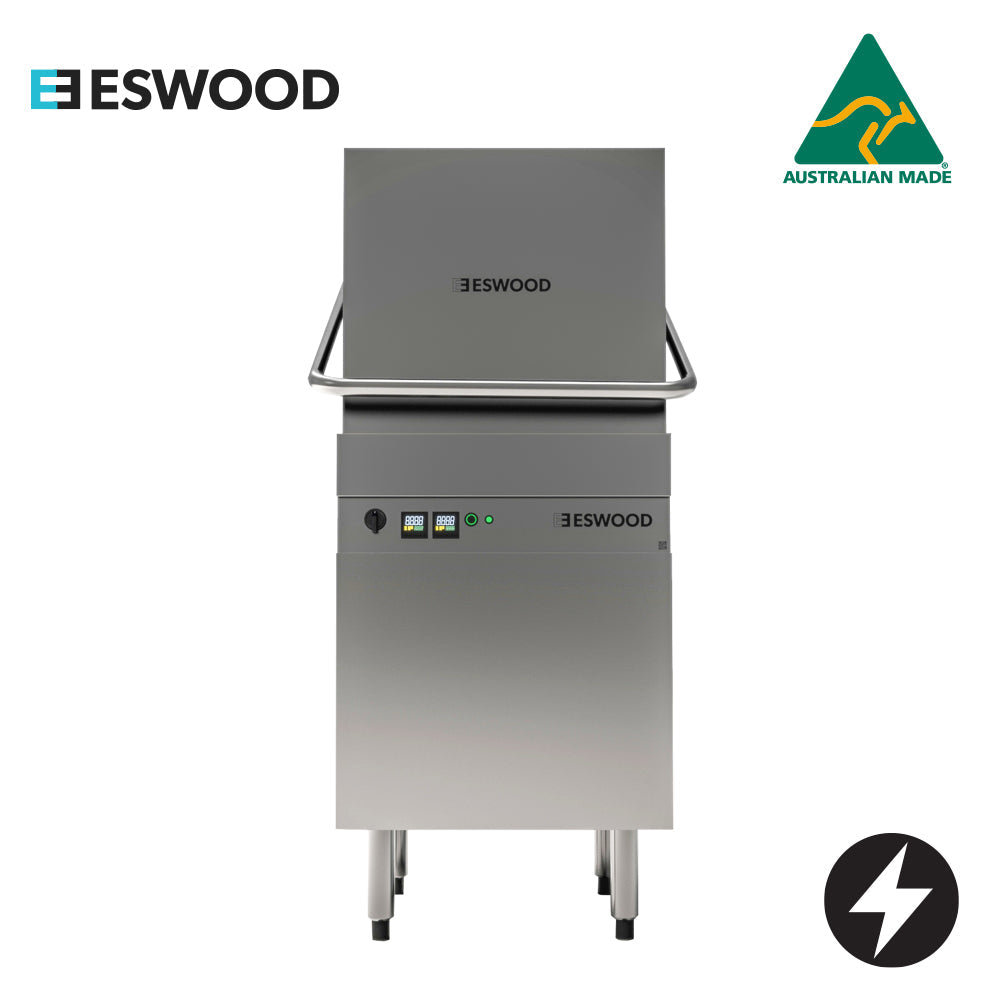

Eswood ES32DP Pass-Through Warewasher with Drain Pump

The Eswood ES32DP is the drain-pump variant of the three-phase ES32 pass-through warewasher, Australian made and engineered for demanding commercial kitchen environments where gravity drainage is not available. Built for continuous high-capacity operation, it processes up to 700 pieces per hour across 32 racks, making it well suited to high-volume service periods in restaurants, hotels, aged care facilities and institutional kitchens.

Combining a counter-balanced lift-up hood, independent upper and lower spray arms for both wash and rinse circuits, and digital temperature controllers with displays, the ES32DP simplifies operation while supporting HACCP temperature recording and compliance with FSANZ safe food handling codes. WaterMark approval and HACCP certification are held as standard, and the machine ships with a plate rack, cup rack and cutlery container ready for immediate use.

Key Benefits

• Integrated drain pump enables installation in dishrooms without gravity drainage, removing a common site constraint.
• Pass-through hood configuration allows continuous loading and unloading from opposite sides, sustaining throughput during peak service without interruption.
• Suitable for both in-line and corner dishroom layouts, giving flexibility when fitting into existing or new kitchen designs.
• Machine starts automatically upon closure of the hood, reducing operator steps and keeping service moving efficiently.
• Operation interlocked to rinse temperature ensures every cycle only completes when safe sanitising temperatures are reached, supporting food safety compliance.
• Digital wash and rinse temperature controllers with displays make HACCP temperature monitoring and recording straightforward for staff.
• Built-in detergent and rinse-aid dosing pumps deliver consistent chemical dispensing every cycle, reducing waste and manual handling.
• Easily removable spray arms and filters speed up routine cleaning and maintenance, minimising downtime between services.
• Australian-made stainless-steel body and wash arm construction withstands the rigours of daily commercial use and simplifies cleaning.

Key Features

• Drain pump fitted as standard for installations without gravity drainage
• Three-phase only electrical connection: 3 + N + E
• High capacity output of 540 to 700 pieces per hour (32 racks per hour)
• Selectable wash cycle durations of 90 seconds and 120 seconds
• Counter-balanced lift-up hood with ergonomically designed wrap-around handle
• Machine starts automatically upon closure of hood
• Operation interlocked to rinse temperature for food safety assurance
• Independent upper and lower spray arms for both wash and rinse systems
• Easily removable spray arms and filters for quick cleaning
• Automatic fill to wash and rinse tanks
• Digital wash and rinse temperature controllers and displays
• Detergent pump fitted as standard
• Rinse-aid pump fitted as standard
• Separate wash and rinse pumps fitted as standard
• Suitable for corner or in-line pass-through installation
• 500 x 500 mm rack size
• Includes 2 x TR14 plate racks (500 x 500 x 100 mm each), 1 x TR1 cup rack (500 x 500 x 100 mm), and 1 x CB cutlery container
• Durable stainless-steel body construction and wash arms
• Meets FSANZ safe food handling codes
• HACCP certified (PE-388-GE-09)
• WaterMark approved (WM-022833)
• Australian made

Specifications

• Width (mm): 595
• Depth (mm): 600
• Height (mm): 1405
• Weight (kg): 106
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Shipping Weight: 103
• Packed Width (mm): 800.0
• Packed Height (mm): 1580.0
• Packed Depth (mm): 800.0
• Shipping Cubic: 1.011200000m3
• Capacity (Litres): 18 x 250 or 9 x 310 plates
• Power / Gas Input: 9.5 kW
• Power Supply: 400V 3ph
• Power Rating: 3 Phase - 415V + N + E|9.5kW
• Voltage/Phase: 415V 50Hz 3 Phase + Neutral + Earth
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Mechanical
• Fuel Type: Electric
