Overview

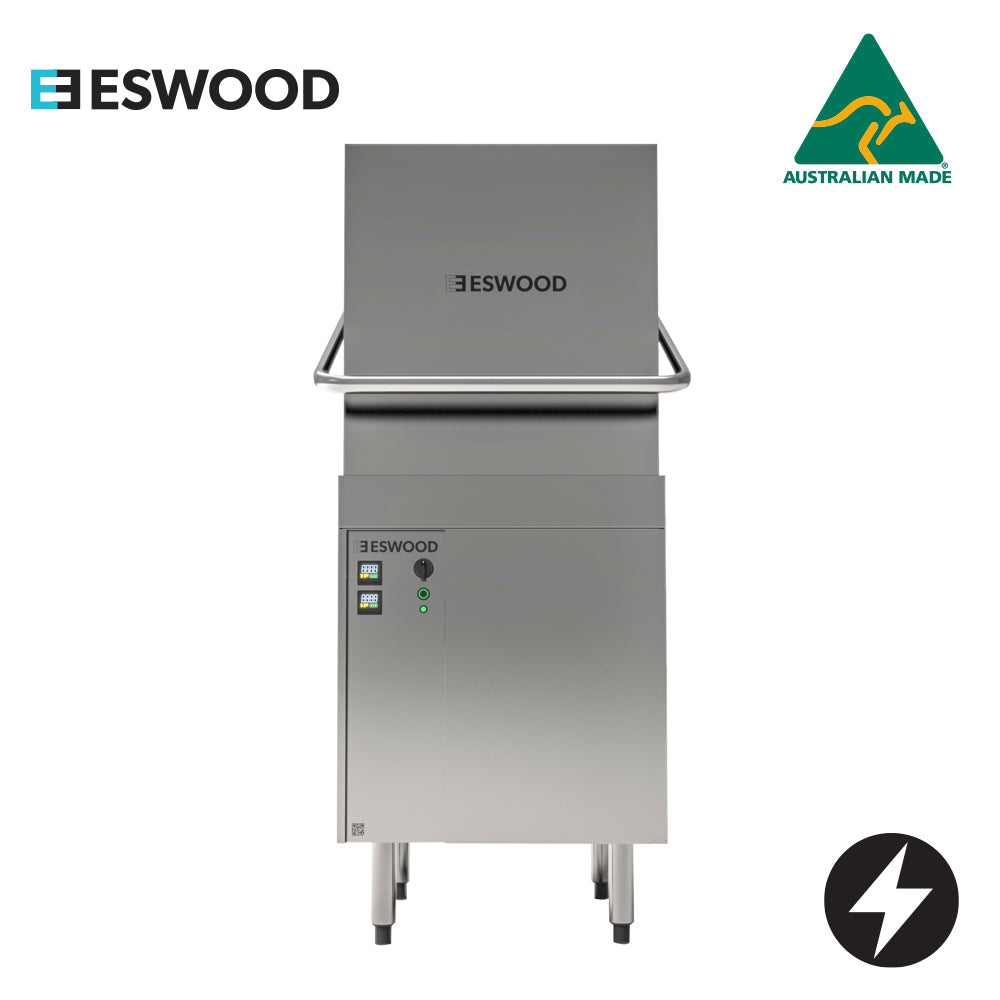

Eswood ES50 Pass-Through Warewasher

The Eswood ES50 is a heavy-duty pass-through warewasher designed for high-volume commercial kitchens serving 120 to 200 covers per service. Its generously sized wash chamber accommodates items up to 400 mm tall, handling everything from full-size trays and large plates to tall glassware, while three selectable wash cycles and a throughput of 50 racks per hour keep pace with demanding dishroom environments.

Built entirely from stainless steel and suitable for both in-line and corner installation, the ES50 combines practical ergonomics with reliable automated performance. A counter-balanced lift-up hood, easily removable spray arms and filters, automatic tank filling, and integrated detergent and rinse-aid pumps reduce operator effort, while dual digital temperature displays and certifications for HACCP and WaterMark support food-safe operation and compliance recording.

Key Benefits

• Large 400 mm chamber clearance handles full-size trays, oversized plates and tall glassware in a single pass, reducing double-handling and bottlenecks.
• Three wash cycle lengths (60, 90 and 120 seconds) let staff match wash time to soil load, balancing speed with wash quality during varying service periods.
• In-line or corner installation flexibility allows the ES50 to fit efficiently into different dishroom configurations without requiring layout compromises.
• Operation interlocked to rinse temperature and machine start on hood closure reduce the risk of operator error and ensure every rack is washed under correct conditions.
• Dual digital wash and rinse temperature displays make HACCP temperature recording straightforward and support compliance with FSANZ safe food codes.
• A 7,200-watt rinse water temperature booster maintains consistent final rinse temperatures even under continuous heavy use, supporting hygiene standards.
• Easily removable spray arms and filters speed up daily cleaning and routine maintenance, minimising downtime between services.
• Gravity drain as standard with an optional drain pump gives operators installation flexibility across different plumbing configurations.
• Supplied with racks and cutlery containers straight out of the box, so the machine is ready to operate immediately without additional accessory purchases.

Key Features

• Large clearance wash chamber accommodates items up to 400 mm in height, including trays and tall glassware
• Three wash programs: 60, 90 and 120 seconds, selectable to match degree of soil
• Suitable for both in-line and corner pass-through installation
• Counter-balanced lift-up hood with ergonomically designed wrap-around handle
• Independent upper and lower spray arms for thorough wash and rinse coverage
• Durable all-stainless-steel body construction and stainless-steel wash and rinse arms
• Automatic fill to wash and rinse tanks
• 1,000-watt wash pump fitted as standard
• 7,200-watt rinse water temperature booster
• Dual digital wash and rinse temperature controllers and displays
• Operation interlocked to rinse temperature to ensure hygienic wash conditions
• Machine starts upon closure of hood or via start button
• Detergent and rinse-aid pumps fitted as standard for consistent automatic dosing
• Easily removable spray arms and filters for quick cleaning and maintenance
• 45-litre tank capacity; 4 litres water consumption per cycle
• Gravity drain standard; optional drain pump available
• Water supply requirement: 65°C at 1 to 4 bar (15 to 58 psi)
• Throughput: 50 racks per hour, servicing 120 to 200 covers
• 500 x 500 mm rack size
• Supplied with 2 x TR14 plate racks (500 x 500 x 100 mm), 1 x TR1 cup rack (500 x 500 x 100 mm), and 2 x CB cutlery containers
• 3-phase electrical connection: 415V + N + E; total rating 10.3 kW
• WaterMark approved: WM-022833
• HACCP approved: PE-388-GE-09
• Conforms to FSANZ safe food codes
• Dimensions (W x D x H): 645 x 645 x 1,490 mm; height with hood open: 1,895 mm
• Weight: 112 kg

Specifications

• Width (mm): 642
• Depth (mm): 645
• Height (mm): 1490
• Weight (kg): 112
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Water Consumption: 4L Cycle
• Shipping Weight: 112
• Packed Width (mm): 850.0
• Packed Height (mm): 1650.0
• Packed Depth (mm): 850.0
• Shipping Cubic: 1.192125000m3
• Capacity (Litres): 18 x 250 or 9 x 390 plates; 120-200 pax
• Power / Gas Input: 10.3 kW
• Power Supply: 400V 3ph
• Power Rating: 10.3kW|3 Phase - 415V + N + E
• Voltage/Phase: 415V 50Hz 3 Phase + Neutral + Earth
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Electronic
• Fuel Type: Electric
