Overview

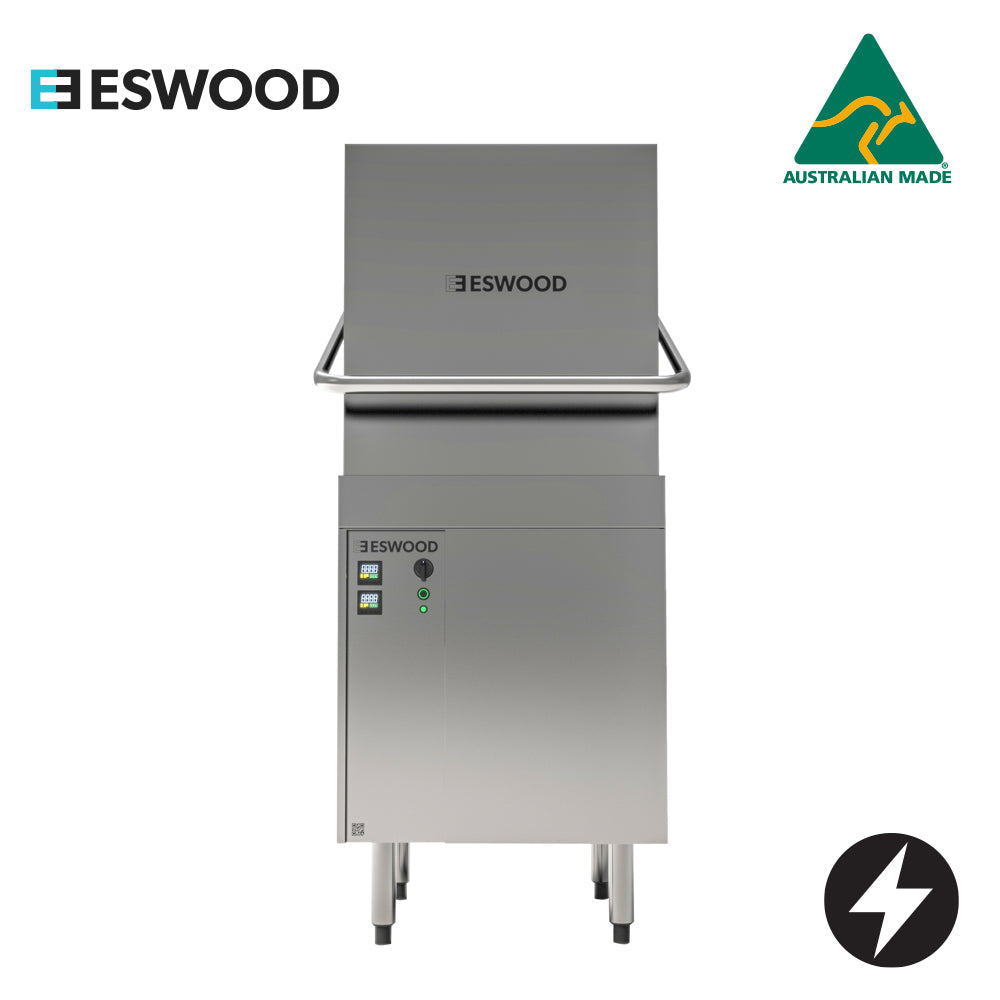

Eswood ES50DP Pass-Through Warewasher with Drain Pump

The Eswood ES50DP is the drain-pump variant of the heavy-duty ES50 pass-through warewasher, designed and manufactured in Australia for the rigorous demands of high-volume commercial kitchens. Built on a durable stainless-steel body, it delivers continuous performance across up to 50 racks per hour, servicing between 120 and 200 covers per meal service, making it well suited to busy restaurants, cafeterias and institutional facilities.

Requiring a 3-phase electrical connection, the ES50DP combines an integrated drain pump with automatic tank filling, independent upper and lower spray arms, and digital wash and rinse temperature controllers to keep results consistent and food-safety compliance straightforward. FSANZ, HACCP and WaterMark approvals confirm it meets Australia's highest health and sanitary standards, while corner or in-line installation options give dishroom designers genuine flexibility.

Key Benefits

• Integrated drain pump enables installation where gravity drainage is unavailable or impractical, expanding possible dishroom locations.
• Large clearance chamber accepts items up to 400 mm tall, handling full-size trays, tall glassware and oversized plates in a single pass.
• Three wash cycles of 60, 90 and 120 seconds let staff match cycle length to the degree of soil, balancing throughput with cleaning intensity.
• Operation interlocked to rinse temperature prevents a cycle from running below safe sanitising thresholds, supporting HACCP compliance and food-safety recording.
• Easily removable spray arms and filters reduce cleaning time between services and simplify routine maintenance.
• Automatic detergent and rinse-aid dosing pumps remove manual guesswork, maintaining consistent chemical concentrations wash after wash.
• Corner or in-line pass-through configuration suits a wide range of kitchen layouts without requiring structural changes.
• Machine starts automatically upon hood closure, keeping workflow moving during busy service periods.
• Australian-made construction to stringent commercial standards delivers long-term reliability in harsh kitchen environments.

Key Features

• Australian-made stainless-steel body and wash arms for durability and corrosion resistance
• Integrated drain pump fitted as standard — 3-phase only (415 V + N + E)
• Large clearance chamber accommodates items to 400 mm tall
• Three wash programs: 60, 90 and 120 seconds to match degree of soil
• Independent upper and lower spray arms for thorough wash and rinse coverage
• 1,000-watt wash pump
• 7,200-watt rinse water temperature booster
• Automatic fill to both wash and rinse tanks
• Digital wash and rinse temperature controllers and displays for easy monitoring
• Operation interlocked to rinse temperature — cycle cannot run until safe temperature is reached
• Machine starts upon hood closure
• Counter-balanced lift-up hood with ergonomically designed wrap-around handle
• Detergent pump and rinse-aid pump fitted as standard
• Easily removable spray arms and filters for fast cleaning
• Suitable for corner or in-line pass-through installation
• 500 x 500 mm rack size
• Rack capacity: 50 racks per hour; meal service capacity 120–200 covers
• Water consumption: 4 L per cycle
• Water supply requirement: 65 °C at 1–4 bar (15–58 psi)
• Includes 2 x TR14 plate racks (500 x 500 x 100 mm), 1 x TR1 cup rack (500 x 500 x 100 mm) and 2 x CB cutlery containers
• HACCP approved (PE-388-GE-09)
• WaterMark approved (WM-022833)
• Meets FSANZ safe food handling codes

Specifications

• Width (mm): 642
• Depth (mm): 645
• Height (mm): 1490
• Weight (kg): 112
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Shipping Weight: 112
• Packed Width (mm): 850.0
• Packed Height (mm): 1650.0
• Packed Depth (mm): 850.0
• Shipping Cubic: 1.192125000m3
• Capacity (Litres): 18 x 250 or 9 x 390 plates
• Power / Gas Input: 10.3 kW
• Power Supply: 400V 3ph
• Power Rating: 10.3kW|3 Phase - 415V + N + E
• Voltage/Phase: 415V 50Hz 3 Phase + Neutral + Earth
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Digital
• Fuel Type: Electric
