Overview

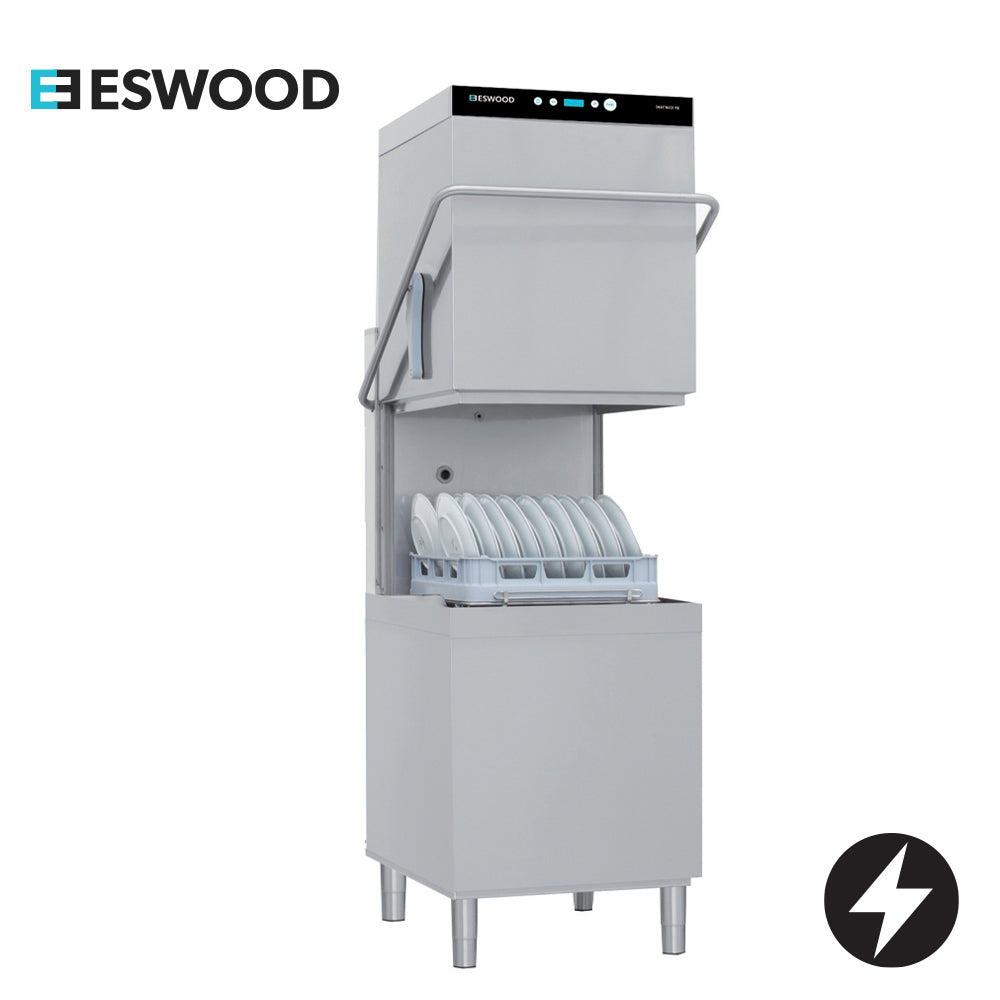

Eswood SW900X Smartwash Pass-Through Dishwasher

The Eswood SW900X Smartwash is a professional pass-through warewasher built for Australian commercial kitchens, combining intelligent one-touch control with genuinely sustainable water and energy consumption. Its user-friendly touch panel presents separate digital readouts for both wash and rinse temperatures, making HACCP compliance recording straightforward without any additional monitoring equipment. Four programmable wash cycles, a self-cleaning system, a drain pump, and integrated detergent and rinse-aid dosing units all come included as standard, reducing setup complexity and ongoing maintenance effort.

Designed to handle the demands of venues serving roughly 40 to 80 covers, the SW900X accepts standard 500 x 500 mm racks through a generous 465 mm hood opening large enough to accommodate pots and oversized items. The insulated double-skinned ProGlide hood glides smoothly on anti-friction guides, cuts heat and sound emissions, and delivers an energy saving of up to 0.5 kW every hour compared to uninsulated alternatives. Each cycle draws a mere 1.8 litres of water, giving the machine an outstanding running cost efficiency that supports both environmental sustainability goals and lower utility bills.

Key Benefits

• One-touch Smartwash control keeps operation intuitive and consistent, even for less experienced staff during busy service periods.
• Separate digital wash and rinse temperature readouts on the touch panel simplify HACCP compliance and food safety reporting without additional monitoring equipment.
• A water draw of just 1.8 litres per cycle delivers significant savings on water costs and supports environmental sustainability goals.
• The insulated eco ProGlide hood achieves an energy reduction of up to 0.5 kW per hour, lowering energy bills and reducing kitchen heat and noise levels.
• A 465 mm hood opening and 500 x 500 mm rack capacity accommodate large pots, gastronorm trays, and oversized crockery that smaller machines cannot handle.
• A drain pump and integrated detergent and rinse-aid dosing units are all included as standard, reducing accessory costs and ensuring consistent chemical dosing every cycle.
• A self-diagnostic system speeds up troubleshooting, minimising downtime during service.
• The Thermostop function confirms the set rinse temperature is reached before completing each cycle, safeguarding hygiene outcomes.
• Easily removable spray arms and filters, combined with an automatic self-cleaning cycle, keep maintenance quick and straightforward between services.

Key Features

• One-touch Smartwash control with a touch panel displaying separate digital wash temperature and rinse temperature readouts for straightforward HACCP record-keeping.
• Four wash cycle options: 60, 90, and 180 seconds plus a special time-variable cycle chosen by the operator with a maximum time limit of 12 minutes.
• 465 mm hood opening accommodates large items including pots and oversized cookware.
• Accepts standard 500 x 500 mm racks.
• ProGlide hood slides on anti-friction guides for smooth, jerk-free operation without bucking or jamming.
• Insulated double-skinned hood construction drastically reduces heat and sound emissions and delivers an energy saving of up to 0.5 kW per hour.
• Water consumption of just 1.8 litres per cycle for outstanding water efficiency.
• Drain pump fitted as standard.
• Integrated detergent and rinse-aid dosing pumps included as standard.
• Self-cleaning cycle for easy routine maintenance.
• Easily removable spray arms and filters for quick cleaning access.
• Self-diagnostic system for fast, straightforward troubleshooting.
• Thermostop function ensures the set rinse temperature is achieved before cycle completion.
• Supplied with power cord, water hoses, and drain hoses.
• Three-phase electrical connection (415 V / 50 Hz / 3+E+N).
• Wash pump power: 700 W; total power rating: 10.2 kW.
• Tank volume: 22 litres.
• Built to Eswood specifications using quality European-made components.
• Stainless steel construction throughout.

Specifications

• Width (mm): 633
• Depth (mm): 755
• Height (mm): 1565
• Weight (kg): 120
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Water Consumption: 2.3L Per Rack
• Shipping Weight: 180
• Packed Width (mm): 850.0
• Packed Height (mm): 1770.0
• Packed Depth (mm): 960.0
• Shipping Cubic: 1.444320000m3
• Capacity (Litres): 16 x 300 or 8 x 280 plates; 40-80 pax
• Power / Gas Input: 10.2 kW
• Power Supply: 400V 3ph
• Power Rating: 3 phase|6.7kW
• Voltage/Phase: 415V 50Hz 3 Phase
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: SmartBar
• Fuel Type: Electric
