Overview

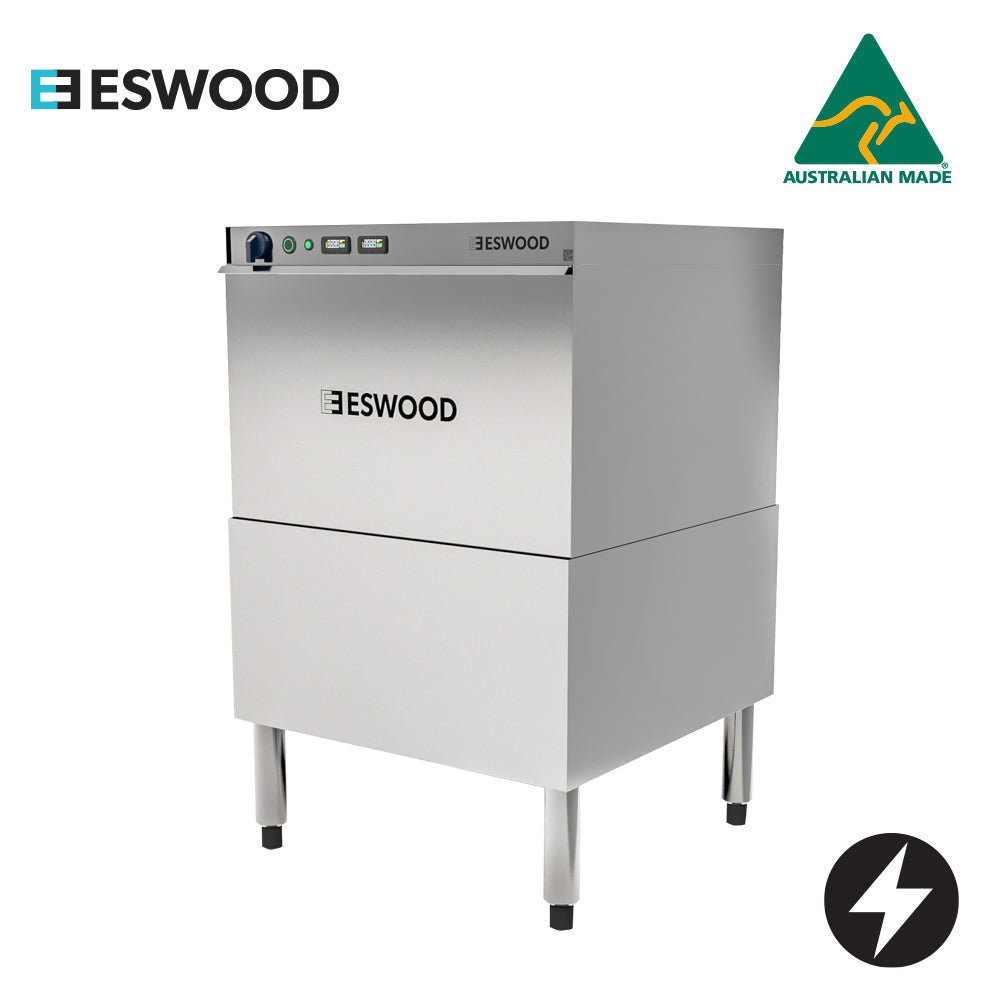

Eswood UC25NDP Undercounter Warewasher

The Eswood UC25NDP is a compact undercounter recirculating warewasher built for cafes, restaurants, bars and catering kitchens that need to wash both dishes and glassware from a single machine. Operating on a standard 500 x 500 mm rack system, it delivers up to 500 plates per hour across three selectable wash programs, making it a capable and space-efficient solution for small to medium hospitality venues. The machine is made in Australia, carries HACCP and WaterMark certification, and complies with FSANZ safe food handling codes.

Fully automatic operation requires nothing more than selecting a wash cycle and pressing start, while upper and lower stainless steel wash arms with multiple jets ensure thorough coverage across every load. A double-skinned stainless steel body reduces both noise and heat loss, and the integrated boost heater is interlocked with machine operation to guarantee sanitising rinse temperatures every cycle. A drain pump, detergent pump and rinse-aid injector are all fitted as standard, and the machine ships with a cup rack, plate rack and cutlery container ready for immediate use.

Key Benefits

• Handles dishes and glassware on one standard 500 x 500 mm rack, eliminating the need for separate machines in compact kitchens.
• Recirculating wash system keeps water and energy consumption low, with just 3.5 litres used per hot cycle.
• Up to 500 plates per hour across three wash programs lets staff match the cycle to the actual soil level, saving time and resources during service.
• Integrated boost heater interlocked with machine operation ensures every rinse reaches the correct sanitising temperature for food-safe, HACCP-compliant results.
• Digital wash and rinse temperature displays make temperature monitoring straightforward and simplify record-keeping in HACCP-controlled environments.
• Drain pump, detergent pump and rinse-aid injector fitted as standard remove the need for additional purchases and deliver consistent, low-effort results.
• Double-skinned stainless steel construction reduces operating noise and heat loss, improving the working environment around the machine.
• Top-mounted controls minimise bending during operation, and easily removable spray arms and filters make routine cleaning quick and straightforward.
• Safety features including a door cut-off interlock, low-water protection and overheat prevention contribute to reliable, trouble-free operation in busy service environments.

Key Features

• 500 x 500 mm rack system compatible with all popular rack sizes
• Capacity of up to 500 plates per hour
• Three selectable wash programs to match degree of soil
• Recirculating wash pump system for reduced water and energy use
• 3.5 litre water consumption per hot cycle
• 18 litre tank capacity
• Upper and lower stainless steel wash arms with multiple jets for full wash and rinse coverage
• Integrated temperature boost heater interlocked with machine operation to ensure consistent sanitising rinse performance
• Accurate digital wash and rinse temperature controllers and displays for easy monitoring and HACCP recording
• Integrated drain pump, detergent pump and rinse-aid injector all fitted as standard
• Full-width tank strainers and dual filtration system
• Easily removable spray arms and filters for fast, simple cleaning
• Double-skinned stainless steel body construction reduces noise and heat loss
• Top-mounted controls minimise operator bending during use
• Fully automatic operation via a single start button after cycle selection
• Safety cut-off fitted to the door
• Low-water protection and overheat prevention
• All stainless steel body and wash arm construction
• 15A single-phase 240V electrical connection
• 3.6 kW power rating
• Made in Australia
• HACCP certified and WaterMark certified
• Compliant with FSANZ safe food handling codes
• Supplied with one NK cup rack 500 x 500 mm, one UK plate rack 500 x 500 mm and one CB cutlery container

Specifications

• Width (mm): 605
• Depth (mm): 650
• Height (mm): 875
• Weight (kg): 68
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Water Consumption: 3.5L Hot Cycle
• Shipping Weight: 68
• Packed Width (mm): 810.0
• Packed Height (mm): 1070.0
• Packed Depth (mm): 880.0
• Shipping Cubic: 0.762696000m3
• Capacity (Litres): 16 x 300 or 8 x 280 plates; 30-60 pax
• Power / Gas Input: 3.6 kW
• Power Supply: 230V 1ph
• Power Rating: 15A Single Phase - 240V|3.6kW
• Voltage/Phase: 240V 50Hz Single Phase 15A
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Digital
• Fuel Type: Electric
