Overview

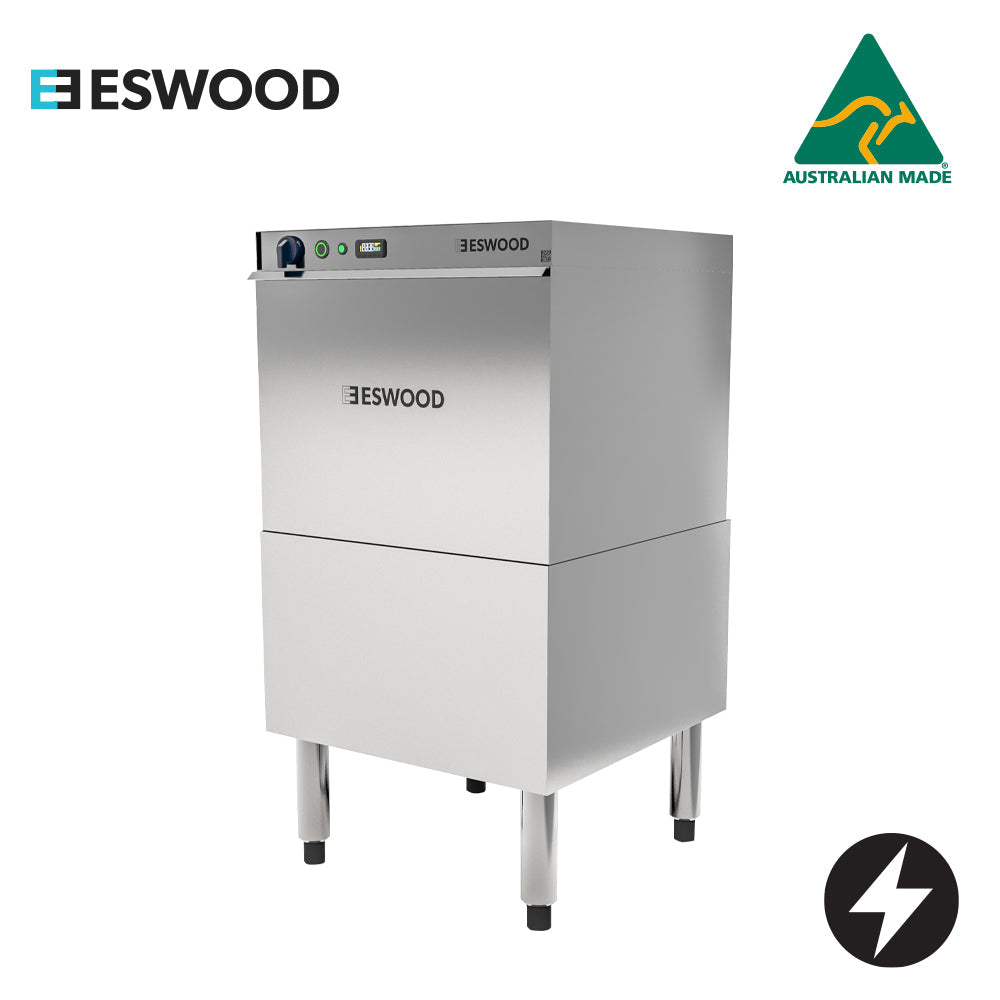

Eswood IW3N Undercounter Automatic Glasswasher

The Eswood IW3N is a compact undercounter automatic glasswasher designed for bars, cafes and busy venues that demand fast, hygienic glassware turnover. Processing up to 1800 glasses per hour with a powerful wash pump and integrated boost heater, it delivers consistent cleaning results cycle after cycle, all from a footprint that fits neatly beneath a standard bar counter. Made in Australia and compliant with FSANZ safe food codes, HACCP and WaterMark certifications, it meets the highest health and sanitary standards required in commercial food service environments.

Operation is straightforward thanks to top-mounted push-button controls that minimise bending during busy service, combined with a digital temperature controller and display that simplifies temperature monitoring and HACCP record-keeping. A selectable rinse cycle lets staff choose between a hot-only cycle or a hot cycle followed by a cooling cycle, leaving glasses at a comfortable temperature and ready to use immediately. The IW3N ships with a flat rack, plate and saucer support, and a cutlery container, so it is ready to put to work from day one.

Key Benefits

• Processes up to 1800 glasses per hour, keeping pace with high-volume bar and hospitality service without creating a glassware backlog.
• Selectable cold rinse cycle cools glasses immediately after washing so they can be filled and served straight away, reducing wait times.
• Top-mounted controls eliminate the need to bend down during busy service, speeding up operation and reducing staff fatigue.
• Digital temperature controller and display enables precise monitoring and straightforward HACCP temperature recording for food-safety compliance.
• Integrated boost heater ensures rinse water reaches optimal hygiene temperatures consistently, supporting reliable sanitisation results.
• Safety cut-off fitted to the door prevents the cycle from operating when the door is open, protecting staff and maintaining wash integrity.
• Easily removable spray arms and filters simplify daily cleaning and routine maintenance, minimising downtime between service periods.
• FSANZ, HACCP and WaterMark certified, giving operators confidence the machine meets Australian commercial food safety and plumbing standards.
• Supplied complete with a flat rack, plate and saucer support, and cutlery container, so the unit is operational immediately upon installation.

Key Features

• Throughput of up to 1800 glasses per hour
• Selectable rinse cycle: hot-only (25 sec) or hot-plus-cold cooling cycle (45 sec); extended 120 sec cycle also available
• Top-mounted push-button controls for fully automatic operation
• Digital temperature controller with display for accurate temperature settings and easy monitoring
• Integrated temperature boost heater for optimal wash and rinse performance
• Power wash pump and fitted detergent pump for consistent, repeatable cleaning
• Safety cut-off switch fitted to the door
• Easily removable spray arms and filters for quick, straightforward cleaning
• All stainless steel body construction and wash arms for durability and hygiene
• Gravity drain only
• 10 L tank capacity
• Water consumption: 7 L hot cycle and 3 L hot-plus-cold cycle
• Electrical connection: 240 V, 50 Hz, 15 A single phase; 3 kW rated
• Rack compatibility: 430 x 360 mm (G74N) or 400 x 400 mm
• Supplied with 1 x flat rack 430 x 360 mm, 1 x plate/saucer support, 1 x cutlery container
• Depth with door open: 885 mm
• Compliant with FSANZ safe food codes; HACCP and WaterMark certified
• Made in Australia
• 2 years parts and labour warranty

Specifications

• Width (mm): 510
• Depth (mm): 550
• Height (mm): 875
• Weight (kg): 40
• Colour: Stainless Steel
• Gas Connection: N/A (Electric)
• Water Consumption: 7L Hot 3L Cold Cycle
• Shipping Weight: 40
• Packed Width (mm): 710.0
• Packed Height (mm): 1070.0
• Packed Depth (mm): 750.0
• Shipping Cubic: 0.569775000m3
• Capacity (Litres): Up to 1800 glasses/hr
• Power / Gas Input: 3.6 kW
• Power Supply: 230V 1ph
• Power Rating: 15A Single Phase|3.3kW
• Voltage/Phase: 240V 50Hz Single Phase 15A
• Country of Origin: Australia (Made)
• Warranty (months): 24
• Material: Stainless Steel
• Installation Type: Electric
• Control Type: Digital
• Fuel Type: Electric
