Overview

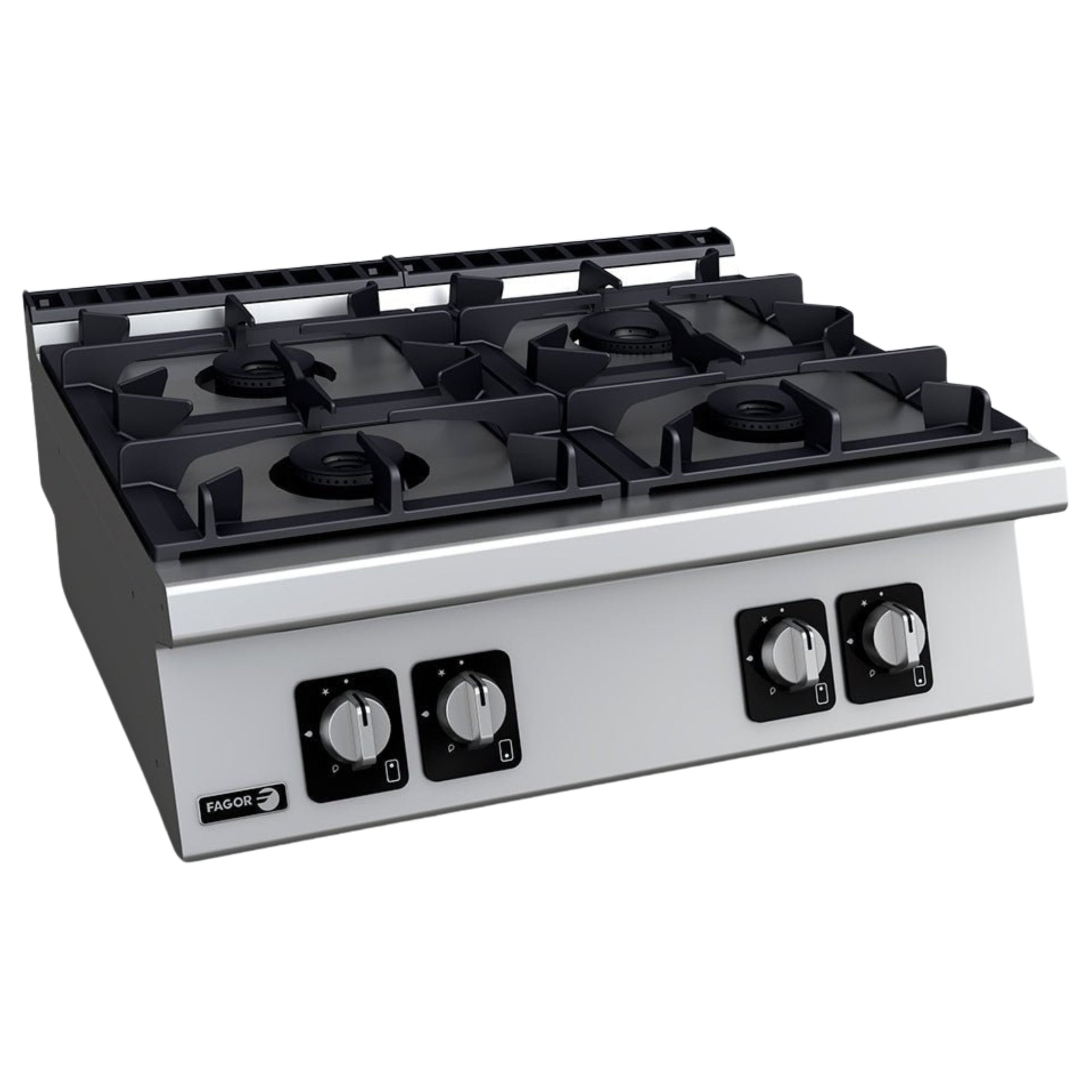

Fagor CG7-40H 700 Series Natural Gas 4 Burner Stainless Steel Boiling Top

The Fagor CG7-40H is part of the 700 Series range, designed to deliver uncompromising performance in demanding commercial kitchen environments. Constructed from 1.5 mm thick AISI-304 stainless steel with laser-cut joints and automatic welding, the unit combines a robust build with refined ergonomics and an attractive finish that reflects Fagor Industrial's longstanding quality standards.

Featuring four cast iron double-crown burners with nickel-plated diffusers, safety thermocouples, and low-consumption pilot ignition, this boiling top ensures even heat distribution across the base of pans of all sizes. Practical design details such as front access to components, hidden screws, water-infiltration-resistant controls, and a fat collector beneath the grates make daily operation and cleaning straightforward in any busy service environment.

Key Benefits

• Even heat distribution from double-crown burners and nickel-plated cast iron diffusers prevents hot spots and optimises energy transfer to cookware, improving cooking consistency.
• Safety thermocouples and low-consumption pilot lights are recessed within the burner body, providing greater protection and reliable ignition with minimal gas wastage.
• RAAF-enamelled cast iron grates resist alkaline and acid products, fire, and high temperatures, ensuring long service life even under heavy daily use.
• A reduced 75 mm spacing between central grate bars accommodates pots as small as 8 cm in diameter, preventing small cookware from tipping and broadening menu versatility.
• Front access to internal components and flexible stainless steel gas pipes simplify routine maintenance and repairs, reducing downtime.
• Water-infiltration-resistant control supports and hidden screws protect internal workings and maintain a clean, professional appearance.
• A fat collector positioned beneath the grates catches drips and spills, keeping the cooktop tidier and making end-of-service cleaning faster.
• A high-temperature enamelled cast iron flue protector sits flush with the grates, expanding the usable cooking surface and supporting larger cookware with ease.
• The 700 Series warranty covers 2 years parts and labour plus a further 2 years parts only when the product is registered within 14 days of invoice, providing strong long-term support.

Key Features

• Constructed from 1.5 mm thick AISI-304 stainless steel with laser-cut joints and automatic welding for a durable, hygienic surface.
• Four open-hob burners, each rated at 6.9 kW, with a total power output of 32.6 kW (117.36 MJ/h).
• Double-crown burners with nickel-plated cast iron diffusers for uniform heat distribution across the full base of pans, including large-diameter cookware.
• RAAF-enamelled cast iron grates resistant to alkaline and acid products, fire, and high temperatures.
• Grate grid spacing of 75 mm between central bars, allowing use of pots from 8 cm diameter without risk of tipping.
• Grill cooking area dimensions: 347 x 310 mm per section.
• Safety valves and thermocouples on each burner for gas cutoff protection.
• Low-consumption pilot lights for ignition, recessed within the burner body for added protection.
• Fat collector located beneath the grates to capture drips and simplify cleaning.
• High-temperature enamelled cast iron flue protector, flush with the grate surface to increase usable cooking area and support larger vessels.
• Water-infiltration-resistant control system with a protective support base.
• Hidden screws throughout for a clean exterior finish and ease of surface cleaning.
• Flexible stainless steel internal gas pipes to facilitate access and repairs.
• Front access to all internal components for straightforward servicing.

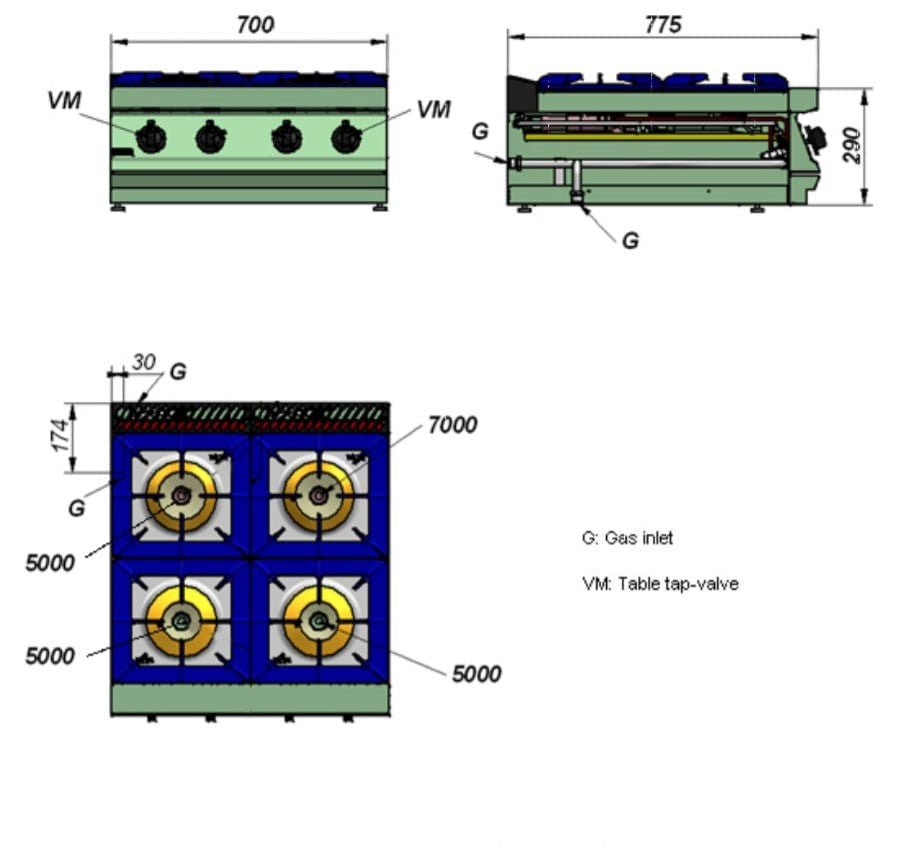

• Overall dimensions: 700 mm wide x 780 mm deep x 290 mm high.
• Weight: 81 kg.
• Packed dimensions: 740 mm wide x 845 mm deep x 515 mm high.
• Warranty: 2 years parts and labour plus 2 years parts only, with product registration required within 14 days of invoice.

Specifications

• Width (mm): 700
• Depth (mm): 775
• Height (mm): 290
• Weight (kg): 81
• Packed Width (mm): 740
• Packed Depth (mm): 845
• Packed Height (mm): 515
• Power Delivery: 117.36 MJ
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
