Overview

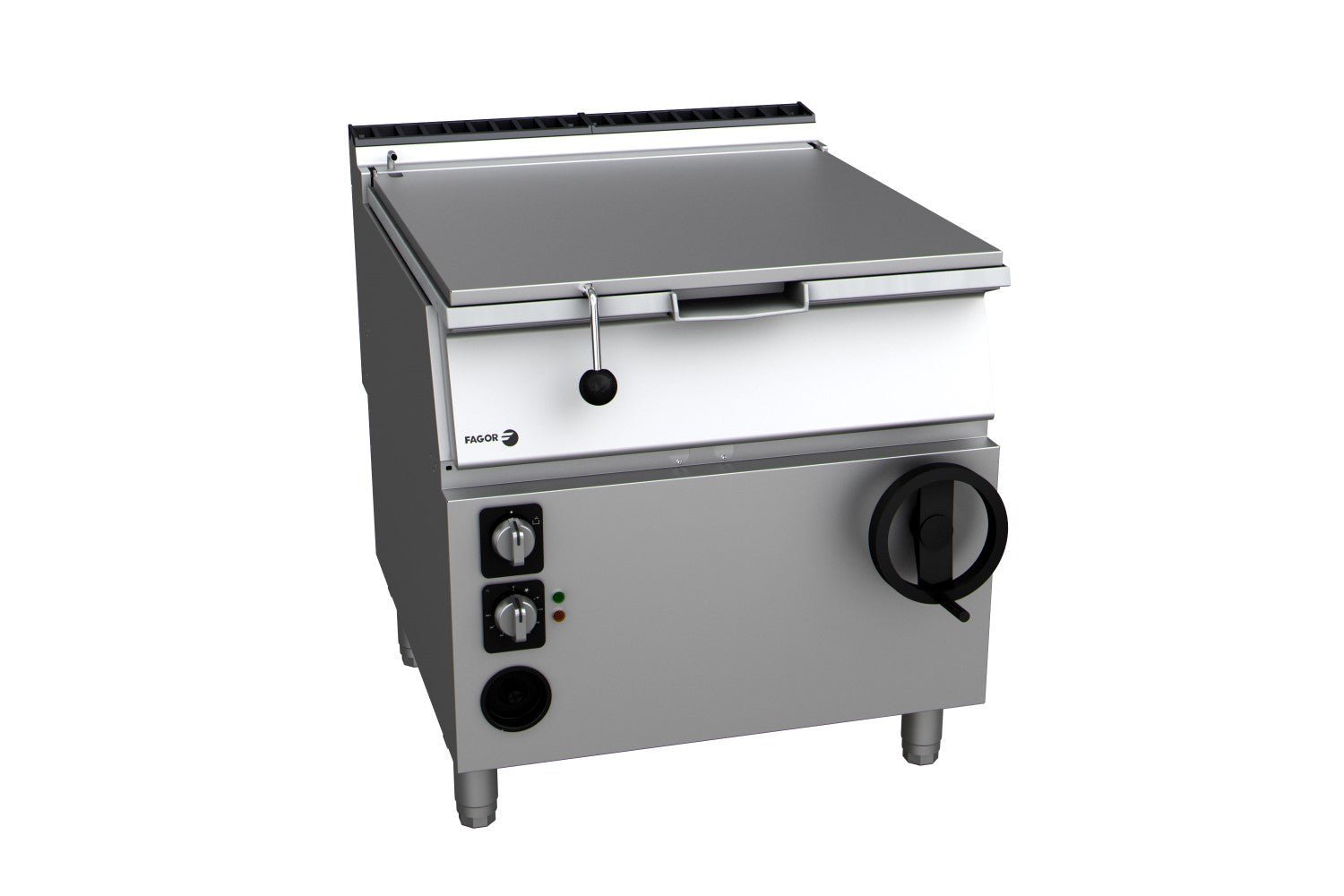

Fagor SBG9-10I 900 Series Natural Gas 80 Litre Crank Tilting Bratt Pan

The Fagor SBG9-10I is a heavy-duty natural gas bratt pan from the 900 Series, designed for the demanding pace of commercial kitchens. With an 80-litre stainless steel pan, a 10 mm thick heat diffuser base for even temperature distribution, and a thermostat-controlled stainless steel tubular burner delivering 18.6 kW (66 MJ/h), this unit provides consistent, precise cooking across a temperature range of 50°C to 315°C.

A crank-operated tilting system allows the pan to be raised to a near-vertical position for complete emptying, while a built-in safety system automatically extinguishes the flame when the pan is raised. The counterbalanced hinged lid can be opened at any angle and doubles as a benchtop surface when closed, making the SBG9-10I a highly practical and space-efficient solution. The unit is supplied on height-adjustable legs, with total height adjustable from 850 mm to 900 mm.

Key Benefits

• Crank tilting system raises the pan to a near-vertical position for complete, effortless emptying and minimal food waste.
• Thermostat temperature control ranging from 50°C to 315°C delivers precise heat management across a wide variety of cooking applications.
• 10 mm thick stainless steel heat diffuser base ensures even heat distribution across the full 50 dm² cooking surface, reducing hot spots and promoting consistent results.
• Integrated water feed with solenoid valve simplifies pan filling directly from the front of the unit, reducing manual handling.

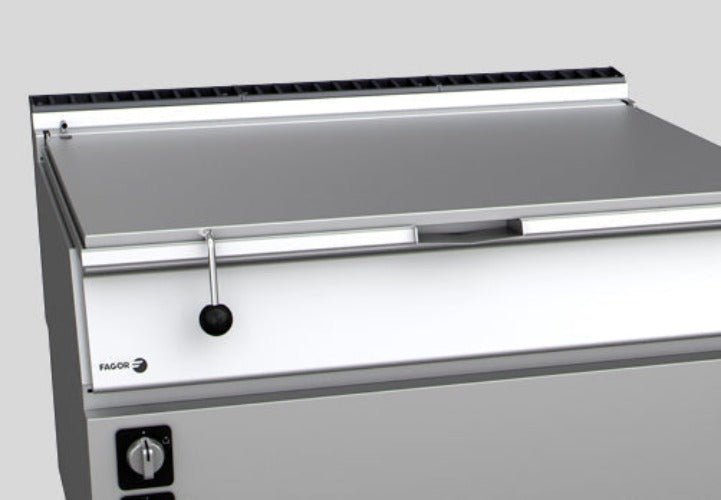

• Counterbalanced hinged lid opens at any angle and lies flat as an additional benchtop surface, maximising workflow flexibility.
• Built-in safety system automatically cuts the flame if the pan is raised, protecting staff and complying with commercial kitchen safety requirements.
• Pilot indicator lights show machine-on and machine-heating status at a glance, supporting confident operation during busy service.
• Height-adjustable legs allow total height to be set between 850 mm and 900 mm, accommodating different ergonomic and workflow preferences.
• Backed by a 2-year parts and labour warranty, with an additional 2-year parts-only warranty when the product is registered within 14 days of invoice.

Key Features

• Natural gas (NG) fuel type with stainless steel tubular burner controlled by solenoid valve.
• 80-litre pan capacity with a 50 dm² cooking surface area.
• Stainless steel pan construction with a 10 mm thick heat diffuser bottom for uniform heat distribution.
• Thermostat temperature control from 50°C to 315°C.
• Crank-operated tilting system capable of raising the pan to vertical for complete emptying.
• Automatic flame extinguishing safety system activates when the pan is raised.
• Counterweighted hinged lid that opens and holds at any angle.
• Lid functions as an additional benchtop surface when in the closed position.
• Integrated water feed for filling the pan, operated via solenoid valve.
• Dual pilot indicator lights: machine on and machine heating.
• Power output: 18.6 kW / 66 MJ/h.
• Electrical supply: 230V, 1+N. Unit is not supplied with a power cord or plug; electrical connection must be performed by a qualified electrician.
• Height-adjustable legs; total working height adjustable from 850 mm to 900 mm.
• Dimensions: 850 mm wide x 900 mm deep x 850–900 mm high.
• Weight: 249.5 kg.
• 2-year parts and labour warranty plus 2-year parts-only warranty for products registered within 14 days of invoice.

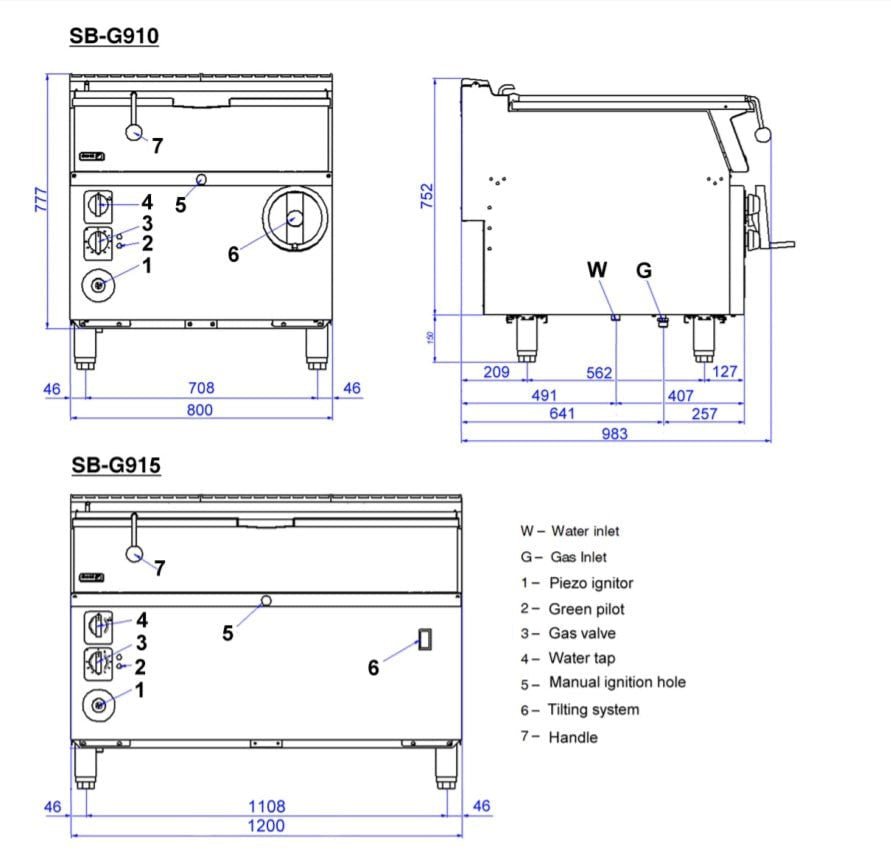

Specifications

• Width (mm): 850
• Depth (mm): 900
• Height (mm): 900
• Weight (kg): 249.5
• Packed Width (mm): 910
• Packed Depth (mm): 1060
• Packed Height (mm): 1085
• Power Delivery: 66 mj./h.
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
