Overview

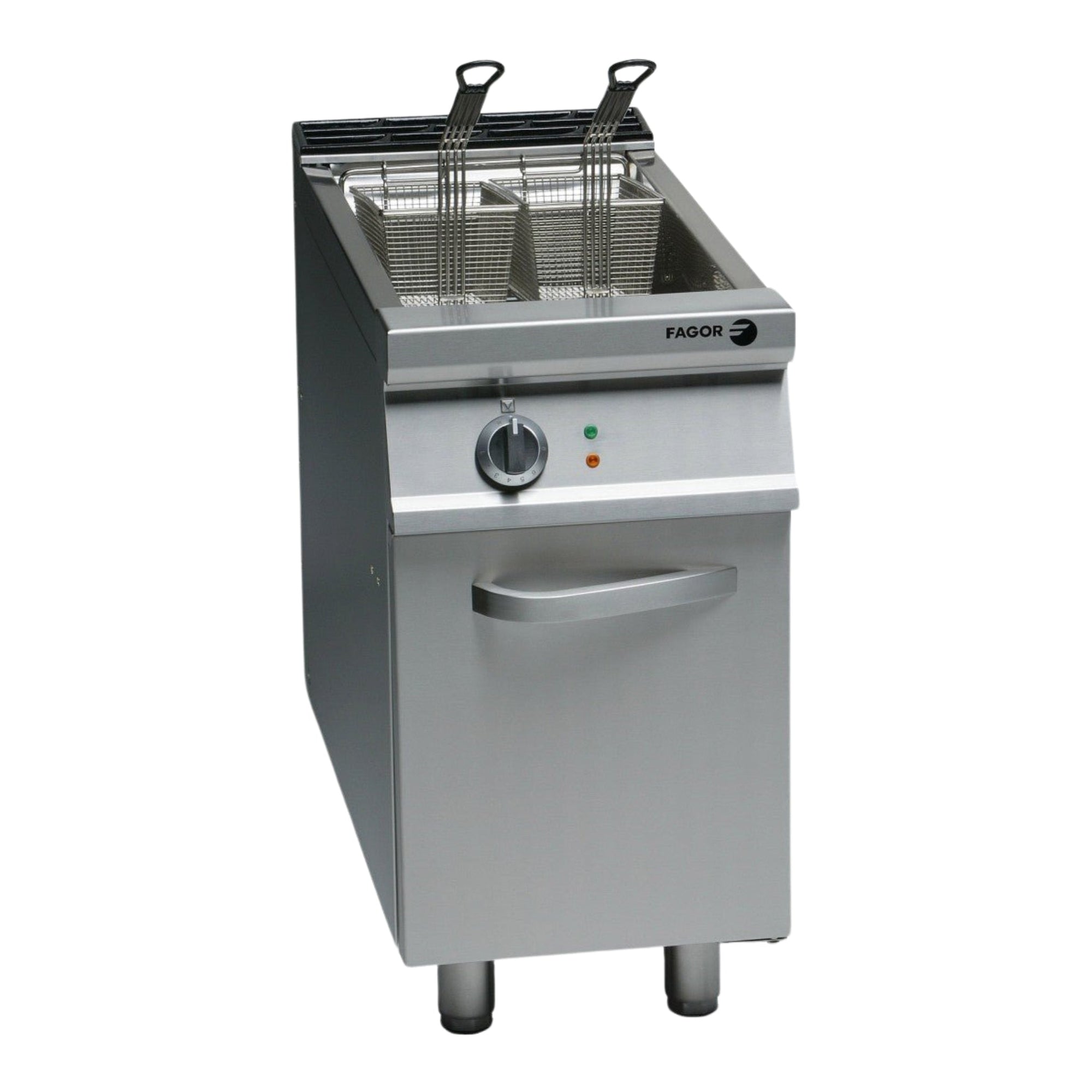

Fagor FG9-05 900 Series Natural Gas Deep Fat Fryer with Cast Iron Burners

The Fagor FG9-05 is a natural gas deep fat fryer from the heavy-duty 900 Series, purpose-built for high-volume commercial kitchens. It features cast iron burners delivering 24 kW of power, a 20-litre single oil well, and built-in thermostatic temperature control across a range of 60°C to 195°C, giving operators consistent, precise frying conditions throughout a busy service period.

Constructed from stainless steel throughout, the FG9-05 is designed for durability and straightforward sanitation. Height-adjustable legs allow the unit to be set between 850 mm and 900 mm to suit the ergonomic requirements of different kitchen layouts. Included night lids, a vat drainage tap, and a flexible basket configuration make daily operation and end-of-service clean-down significantly more efficient.

Key Benefits

• Wide temperature range of 60°C to 195°C suits a broad variety of fried foods, from gentle warming through to high-temperature frying of chips and battered products.
• Cast iron burners and a 24 kW output deliver rapid heat recovery, maintaining consistent oil temperature even during continuous high-volume service.
• Automatic burner ignition via electromagnetic valve with pilot light and thermocouple means quick, reliable start-up without manual lighting.
• A dedicated safety thermostat guards against overheating, protecting both the oil and the equipment and reducing the risk of kitchen hazards.
• The vat drainage tap simplifies oil changes and cleaning, reducing downtime at the end of service and keeping hygiene standards high.
• Flexible basket options let operators choose between two small baskets for running separate products simultaneously or a single large basket for high-output batches.
• Night lids are included as standard, allowing safe oil storage overnight and helping extend oil life between changes.
• Height-adjustable legs accommodate the ergonomic preferences of different kitchen setups, with total height adjustable from 850 mm to 900 mm.

Key Features

• Natural gas (NG) fuel type; part of the Fagor 900 Series heavy-duty range.
• Cast iron burners rated at 24 kW (87.86 MJ/h).
• Single 20-litre oil well.
• Built-in thermostatic temperature control from 60°C to 195°C.
• Automatic burner ignition via electromagnetic valve, with pilot light and thermocouple.
• Safety thermostat to prevent overheating.
• Stainless steel construction throughout.
• Includes 2 small frying baskets (P), each 315 x 160 x 120 mm.
• Compatible with one large frying basket (G), 315 x 330 x 120 mm (available separately).
• Vat drainage tap for straightforward oil removal and cleaning.
• Night lids included as standard.
• Supplied on height-adjustable legs; total height adjustable from 850 mm to 900 mm.
• Electrical supply: 230V-1+N (required for ignition system); unit is not supplied with a power cord or plug and must be connected by a qualified electrician.
• Warranty: 2 years parts and labour, plus a further 2 years parts only when the product is registered within 14 days of invoice.

Specifications

• Width (mm): 425
• Depth (mm): 900
• Height (mm): 900
• Weight (kg): 99
• Packed Width (mm): 465
• Packed Depth (mm): 995
• Packed Height (mm): 920
• Power Delivery: 87.86 mj./h
• Power (kW): 24
• Warranty (months): 2 Years Parts and Labour + 2 Years Parts Only for Products Registered within 14 Days of Invoice
• Capacity (Litres): 20
