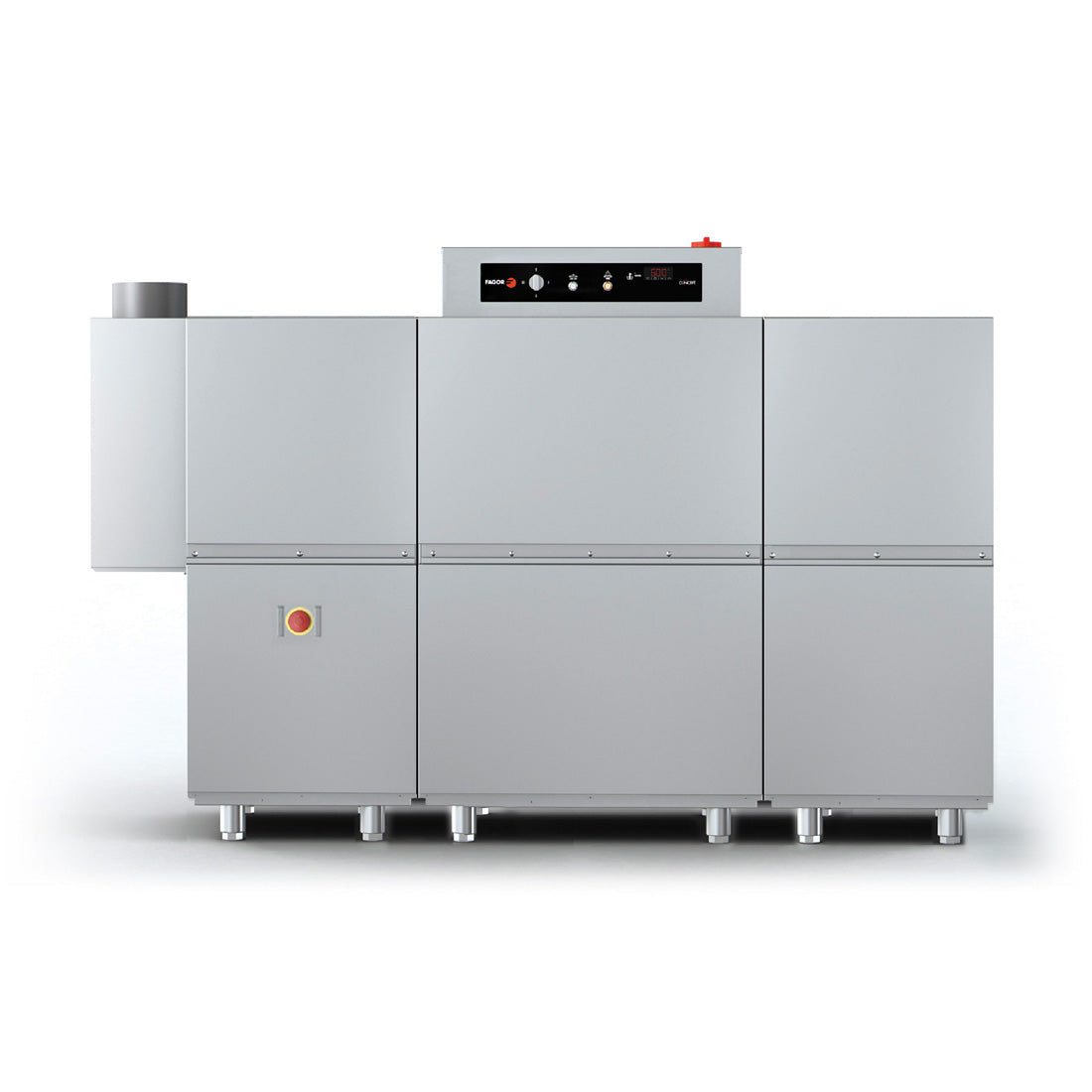

Fagor CCO-225ICW Concept Rack Conveyor Dishwasher – Left Side Entrance

The Fagor CCO-225ICW is a high-capacity rack conveyor dishwasher designed for medium to large commercial kitchens, restaurants and cafes with demanding warewashing requirements. Configured for left side entrance, it delivers up to 225 baskets per hour at maximum speed, supported by a powerful multi-branch washing system and a dedicated cold water prewash module for consistently hygienic results.

Three selectable washing programs give operators the flexibility to match throughput and wash intensity to actual service conditions, while a double effect rinse and pre-rinse system ensures thorough cleaning at every cycle. The machine ships with a standard set of baskets and a defined module configuration, making it straightforward to commission and integrate into an existing kitchen layout.

Key Benefits

• Up to 225 baskets per hour at high-capacity speed setting, keeping clean ware flowing even during peak service periods.
• Three washing programs – Intensive, Medium and High Capacity – allow staff to balance wash quality against throughput depending on how soiled the load is.
• Double effect rinse and pre-rinse action removes detergent residues thoroughly and reduces the risk of spotting on glassware and crockery.
• Cold water prewash module (PL3) loosens heavy soiling before the main wash, protecting wash water quality and extending chemical efficiency.
• Ten washing branches in the main wash zone (5 upper, 5 lower) and six branches in the prewash zone (3 upper, 3 lower) provide even, powerful coverage across every basket.
• Left side entrance configuration offers flexibility for kitchens where conveyor flow must run right to left, simplifying integration into the pass or pot wash area.
• Meets DIN 10534 standard at the Intensive (Position I) speed setting, supporting compliance with commercial hygiene requirements.
• Supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket so the machine is ready to operate from day one without additional basket investment.
• Two-year parts and labour warranty provides confidence in long-term reliability in high-use commercial environments.

Key Features

• Left side entrance rack conveyor configuration.
• Three wash speed programs: Position I – Intensive (125 baskets/hr, DIN 10534 compliant), Position II – Medium (175 baskets/hr), Position III – High Capacity (225 baskets/hr).

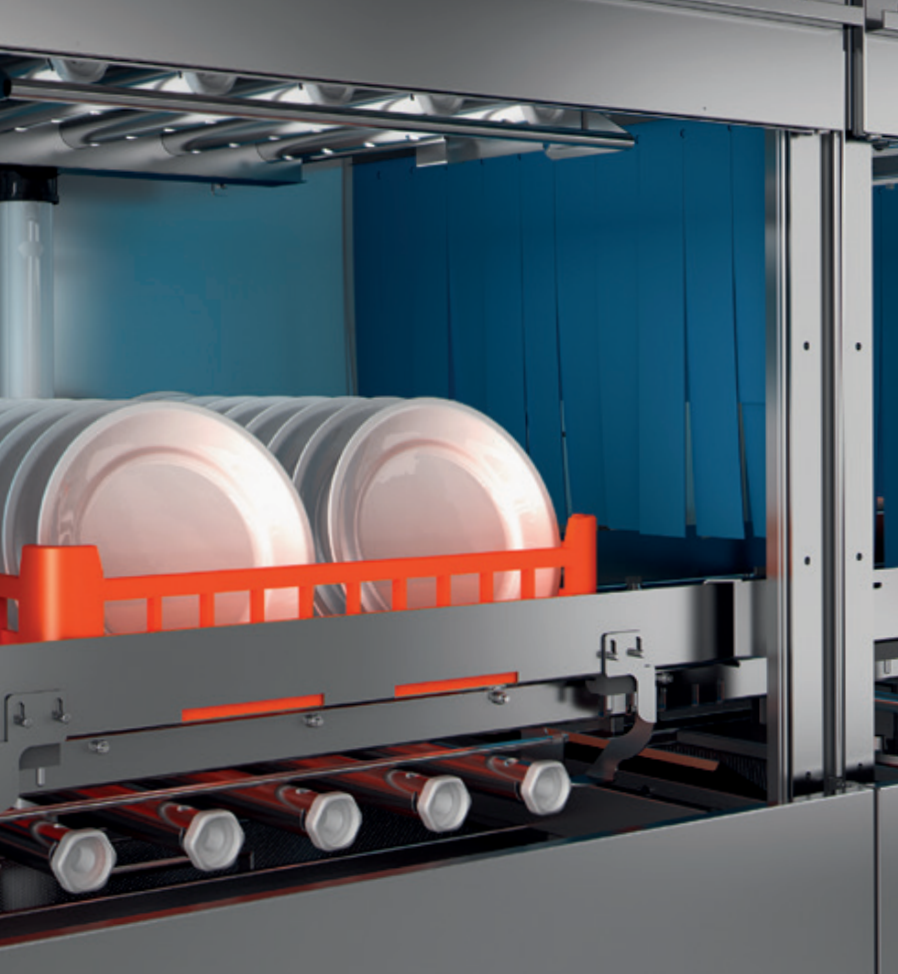

• Main wash zone with 5 upper and 5 lower washing branches for comprehensive spray coverage.
• Prewash module with 3 upper and 3 lower washing branches.
• Double effect rinse and pre-rinse system (DA module).
• Cold water prewash module (PL3).
• First wash with hot water module (L5).
• Main wash module (LP).
• Anti-splash guard supplement (AS-260).
• Standard module configuration: AS-260 + PL3 + LP + DA.
• Includes 2 base baskets, 2 plate baskets and 1 cutlery basket.
• 415V / 50Hz / 3-phase power supply; 45 kW total power.
• Overall dimensions: 2360 mm (W) x 790 mm (D) x 1560 mm (H).
• Machine weight: 110 kg.
• Packed dimensions: 955 mm (W) x 2440 mm (D) x 1890 mm (H).
• 2-year parts and labour warranty.

Specifications

• Width (mm): 2360
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 1101
• Packed Width (mm): 955
• Packed Depth (mm): 2440
• Packed Height (mm): 1890
• Power Delivery: 415V/50Hz ; 45kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
