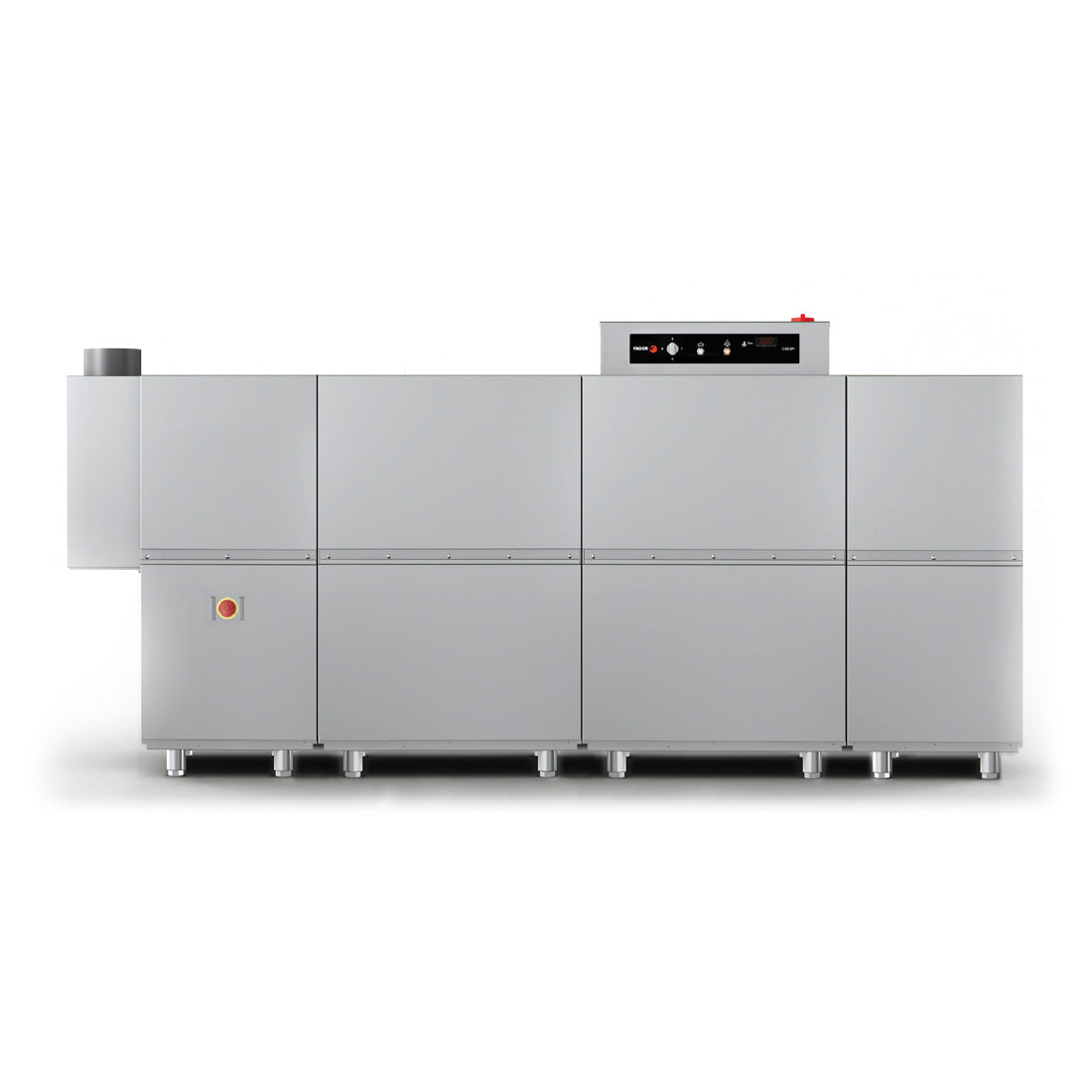

Fagor CCO-320ICW Concept Rack Conveyor Dishwasher Left Side Entrance

The Fagor CCO-320ICW is a high-capacity rack conveyor dishwasher designed for medium to large commercial kitchens, restaurants and cafés that demand continuous, high-throughput warewashing. With a left side entrance configuration, the machine offers three selectable wash programs reaching up to 320 baskets per hour, making it one of the most productive units in the Fagor Concept range. The modular layout combines a cold water prewash module, a hot water first wash stage and a double effect rinse and pre-rinse system, ensuring consistently hygienic results across every cycle.

The CCO-320ICW is built around a powerful washing system featuring five upper and five lower wash branches in the main wash zone, complemented by a dedicated prewash module with three upper and three lower branches. The unit uses R290 natural refrigerant and ships with a practical accessory kit including two base baskets, two plate baskets and one cutlery basket. It is backed by a two-year parts and labour warranty and meets the DIN 10534 hygiene standard at its lowest speed setting, giving operators confidence in compliance as well as capacity.

Key Benefits

• Three selectable wash programs allow staff to match throughput to service demand, from 127 baskets per hour for heavily soiled loads up to 320 baskets per hour during peak service.
• The DIN 10534 hygiene standard is met at the lowest speed setting, providing assurance of compliant wash results even when running the machine at its most thorough cycle.
• A dedicated cold water prewash module removes heavy food soiling before the main wash zone, protecting wash water quality and reducing detergent consumption over a service period.
• Double effect rinse and pre-rinse delivers thorough chemical removal and spot-free results, reducing the need for staff re-polishing of glassware and cutlery.
• Five upper and five lower wash branches in the main zone, combined with three upper and three lower prewash branches, ensure comprehensive coverage of every basket regardless of load type.
• Left side entrance layout suits kitchens where workflow moves from right to left, allowing dishwashing to integrate cleanly into the wider kitchen pass and service flow.
• Supplied with five baskets across three types so the machine can be put to work immediately on installation without sourcing additional accessories.
• R290 natural refrigerant supports sustainability goals and complies with contemporary environmental standards for commercial refrigerant use.

Key Features

• Left hand side entrance configuration for flexible kitchen integration.
• Three wash programs: Position I at 127 baskets/hr (DIN 10534 compliant), Position II at 255 baskets/hr, Position III at 320 baskets/hr.

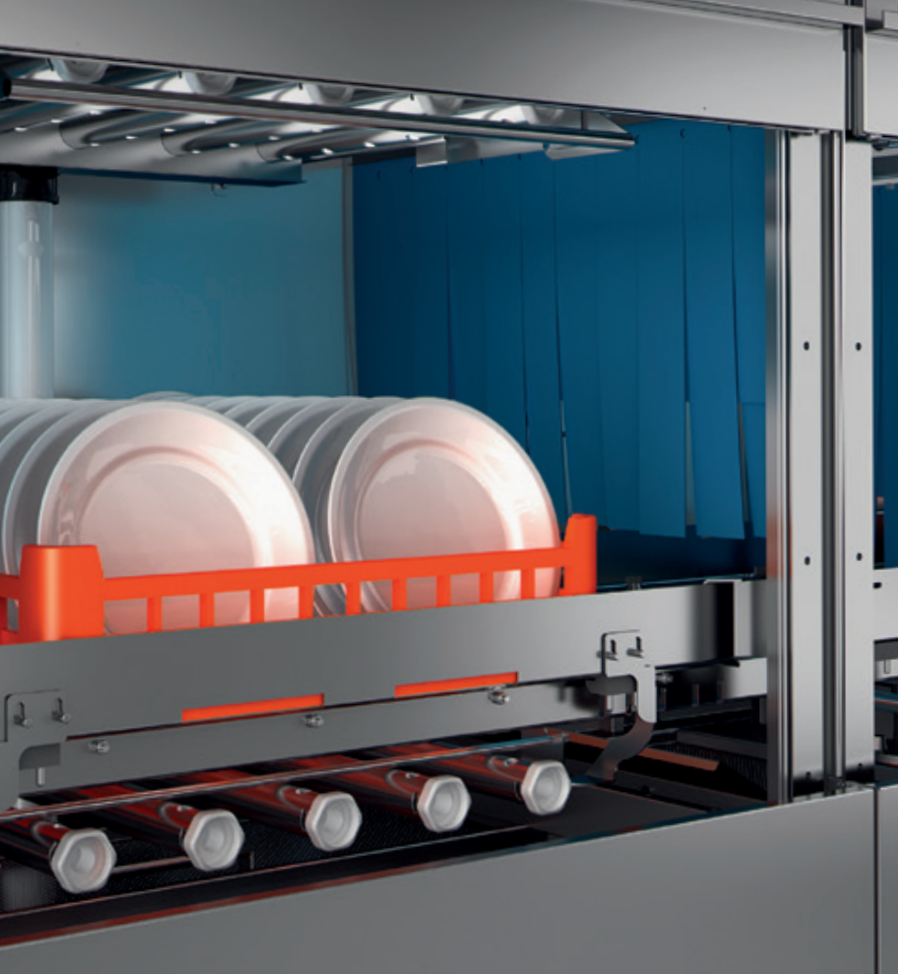

• Main wash zone with five upper and five lower washing branches for thorough, even coverage.
• Dedicated prewash module (PL3) with three upper and three lower washing branches using cold water.
• L5 first wash stage using hot water for effective breakdown of food soils.
• Double effect rinse and pre-rinse (DA module) for thorough detergent removal and hygienic results.
• LP main wash module as part of the configured module stack.
• AS-260 anti-splash guard supplement included in the module configuration.
• Uses R290 natural refrigerant.
• Supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket.
• Modular configuration: AS-260 + PL3 + L5 + LP + TA.
• Rated at 415V/50Hz, 56.3kW, three-phase supply.
• 2-year parts and labour warranty.
• Overall dimensions: 3260mm wide x 790mm deep x 1560mm high.
• Unit weight: 305kg.
• Packed dimensions: 960mm wide x 3350mm deep x 1900mm high.

Specifications

• Width (mm): 3260
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 3055
• Packed Width (mm): 960
• Packed Depth (mm): 3350
• Packed Height (mm): 1900
• Power Delivery: 415V/50Hz ; 56.3kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
