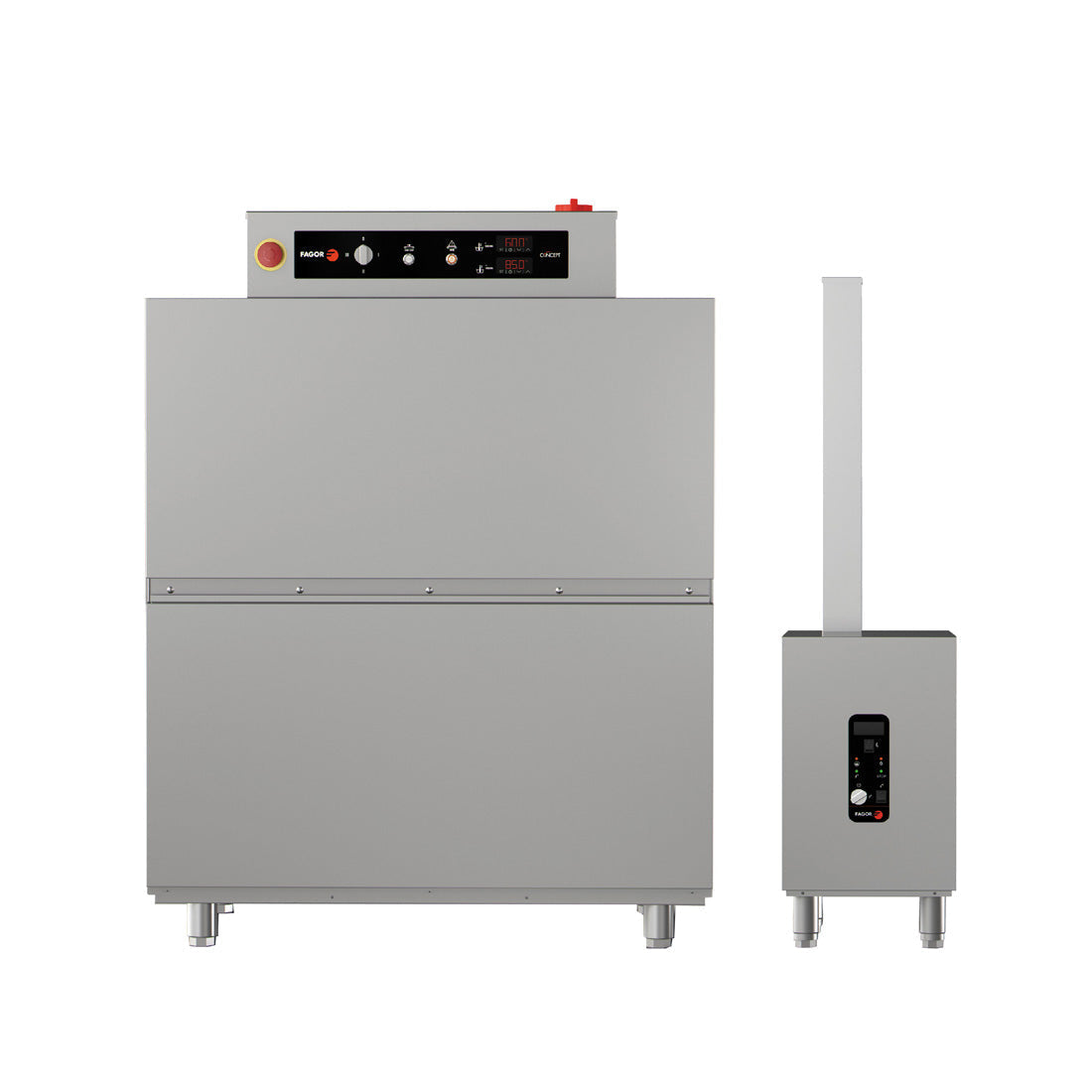

Fagor CCO-180DCW Concept Rack Conveyor Dishwasher – Right Side Entrance

The Fagor CCO-180DCW is a heavy-duty rack conveyor dishwasher designed for medium to large commercial kitchens, restaurants and cafés requiring continuous, high-volume warewashing. Configured with a right-hand side entrance, it combines a cold water prewash module, a high-power main wash stage and a double-effect rinse and pre-rinse system to deliver thorough, hygienic results across a full shift.

Three selectable washing programs allow operators to match throughput to demand, from 90 baskets per hour on the intensive cycle through to 180 baskets per hour on the high-capacity setting, all while meeting the DIN 10534 hygiene standard. The machine ships with a practical basket kit and a modular configuration that includes an anti-splash guard supplement, making it a complete, ready-to-run solution for busy service environments.

Key Benefits

• Three speed programs let staff dial throughput between 90 and 180 baskets per hour, so wash intensity can be matched to the volume and type of soiling during service.
• Double-effect rinse and pre-rinse improves final rinse water efficiency and ensures consistently clean, sanitised ware even at peak output.
• The cold water prewash module (PL3) removes heavy food soils before the main wash, protecting wash water quality and reducing chemical consumption.
• Right-hand side entrance suits specific kitchen layouts, allowing conveyor flow to integrate naturally with dish-collection and storage runs.
• A total of 16 washing branches (5 upper and 5 lower in the main wash zone, 3 upper and 3 lower in the prewash module) deliver thorough coverage across every rack position.
• Compliance with DIN 10534 at the lowest speed setting provides documented assurance of hygiene performance for compliance and food-safety audits.
• The included basket kit (2 base baskets, 2 plate baskets and 1 cutlery basket) means the machine is productive from day one without additional outlay.
• A 2-year parts and labour warranty reduces the risk of unplanned maintenance costs in the critical first years of operation.

Key Features

• Right-hand side entrance configuration for directional conveyor flow
• Cold water prewash module (PL3) with 3 upper and 3 lower washing branches
• High-power main wash stage (L5 – first wash with hot water) with 5 upper and 5 lower washing branches
• Double-effect rinse and pre-rinse module (DA) for superior final-rinse hygiene
• Anti-splash guard supplement (AS-260) included in the standard module configuration
• Three selectable washing programs: intensive (90 baskets/hr), medium (135 baskets/hr) and high capacity (180 baskets/hr)
• Meets DIN 10534 hygiene standard at the intensive (lowest) speed setting
• Module consumption configuration: AS-260 + LP + DA
• Supplied with 2 base baskets, 2 plate baskets and 1 cutlery basket
• R290 natural refrigerant
• 415V / 50Hz, 3-phase power supply; 34.9 kW total power
• 2-year parts and labour warranty

Specifications

• Width (mm): 1750
• Depth (mm): 790
• Height (mm): 1560
• Weight (kg): 861.25
• Packed Width (mm): 955
• Packed Depth (mm): 1850
• Packed Height (mm): 1950
• Power Delivery: 415V/50Hz ; 34.9kW/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
