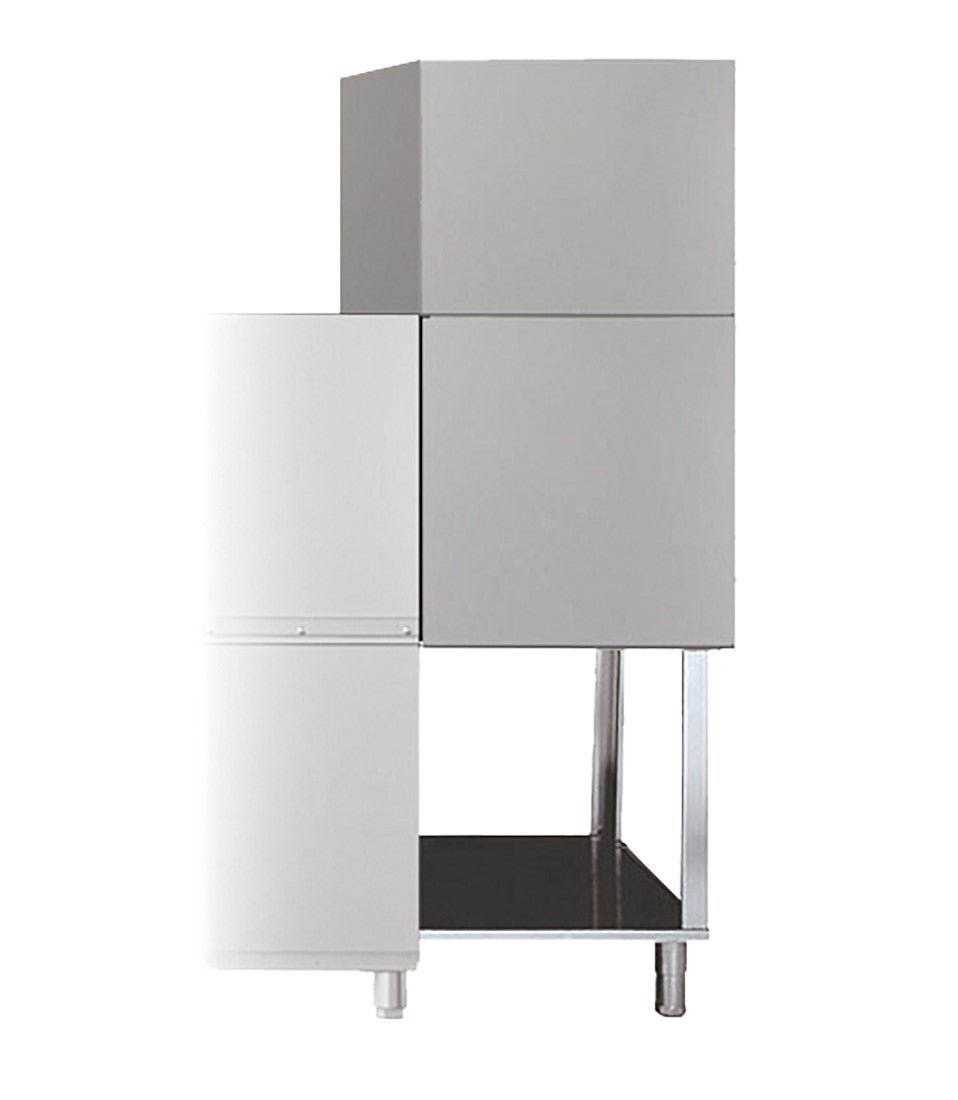

Fagor TS-COO Drying Tunnel for Compact Conveyor Dishwasher

The Fagor TS-COO is a supplementary drying tunnel purpose-built for use with the Fagor Rack Conveyor Dishwasher modular models CCO-180 and CCO-225. Constructed entirely from AISI-304 stainless steel, it integrates seamlessly into the compact conveyor dishwasher line to deliver a complete wash and dry warewashing solution for medium to large commercial kitchens.

Equipped with a 9 kW heating element box and an upper fan driven by a 0.55 kW motor, the TS-COO efficiently dries dishes as they exit the conveyor cycle. A comprehensive suite of safety and convenience features, including IPX4 splash protection, an automatic conveyor blockage detection and reverse function, an emergency stop button, and an open-door blocking system, make this unit a reliable and operator-friendly addition to any busy service environment.

Key Benefits

• Speeds up table turnaround by delivering thoroughly dried dishes directly off the conveyor line, reducing manual drying labour.
• Three selectable washing programs (deep, medium, and high capacity) allow operators to match cycle intensity to service demand and soil levels.
• Automatic detection of conveyor carriage blockages with an instant reverse function prevents jams and protects ware from damage during peak service.
• Energy-saving systems reduce operating costs without compromising wash or drying performance across long service periods.
• Washing arms, rinse jets, and other key components are tool-free removable for fast, thorough daily cleaning, supporting food safety compliance.
• Watermark approval confirms the unit meets Australian plumbing and water-use standards, simplifying installation sign-off.
• The electrical panel is pre-configured for straightforward connection of liquid or solid detergent dosers, rinse aid dosers, and limit switches, minimising installation time.
• Comes supplied with a complete basket kit including two base baskets, two plate baskets, one glass basket, and one cutlery basket, so the unit is ready to operate from day one.

Key Features

• Specifically compatible with Fagor Rack Conveyor Dishwasher modular models CCO-180 and CCO-225.
• 9 kW heating element box with upper drying fan powered by a 0.55 kW motor.
• Full AISI-304 stainless steel construction throughout.
• Upwards-opening double-panel door for unobstructed access to the interior.
• High-power washing system featuring 4 upper and 4 lower washing branches.
• Wash temperature range: 50 to 65 °C; rinse temperature range: 70 to 85 °C.
• Three washing programs: deep, medium, and high capacity.
• Double-effect rinse system for thorough detergent removal.
• Rinsing boiler with heat insulation to maintain consistent rinse temperatures and improve energy efficiency.
• Safety filter on pump suction to protect the wash pump from debris.
• Washing arms removable as a complete set for cleaning without tools.
• Rinse jets individually dismountable and removable for descaling and cleaning.
• Emergency stop button incorporated into the control panel.
• Open-door blocking system prevents operation when a door is open.
• IPX4-rated protection against water splashing from any direction.
• Automatic conveyor carriage blockage detection with reverse function.
• Electrical panel pre-wired for easy connection of liquid and solid detergent dosers, rinse aid dosers, and limit switches.
• Energy-saving systems built in to reduce power and water consumption.
• Included accessories: 2 base baskets, 2 plate baskets, 1 glass basket, 1 cutlery basket.
• Watermark approved for the Australian market.
• Power supply: 415 V / 50 Hz, 14.8 kW, 3-phase + neutral.
• 2-year parts and labour warranty.

Specifications

• Width (mm): 600
• Depth (mm): 790
• Height (mm): 1945
• Weight (kg): 697.75
• Packed Width (mm): 960
• Packed Depth (mm): 1530
• Packed Height (mm): 1900
• Shipping Weight: 70
• Power Delivery: 415/50V/Hz; 14.8/3~N
• Power (kW): 415
• Warranty (months): 2 Years Parts and Labour
